Schneider Electric XB7NW34M1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

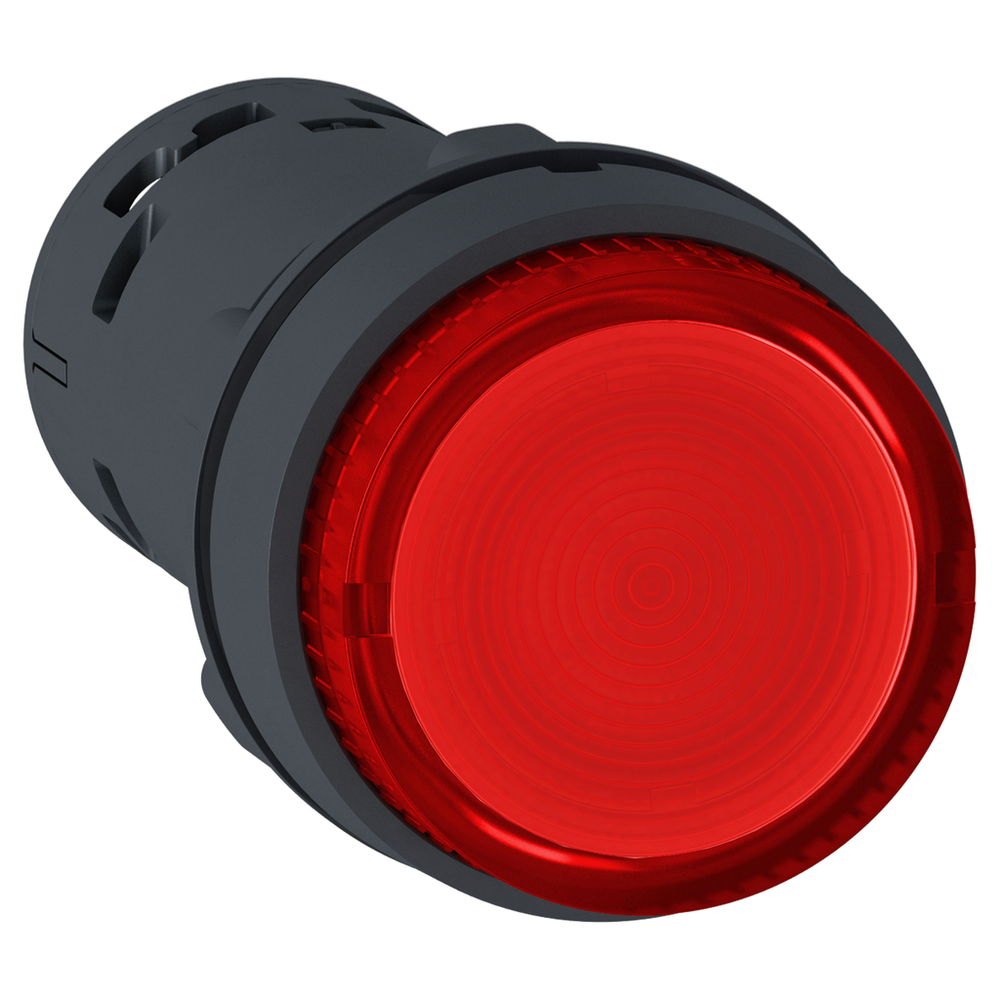

This Harmony XB7, illuminated projecting monolithic red push button operates with a spring return mechanism, is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230…240V AC, 1NO
Schneider Electric XB7NW34M1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 57.5 mm
- Cad Overall Height
- 29 mm
- Cad Overall Width
- 29 mm
- Contact Operation
- slow-break
- Current Consumption
- 22...27 mA
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Electrical Reliability
- λ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.023 kg
- Positive Opening
- with (only NO)
- Service Life
- 70000 h at rated voltage and 25 °C
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG IEC 60947-5-1
- Signalling Type
- steady
- Supply Voltage Limits
- 195-264 V AC
- Terminals Description Iso N°1
- (13-14)NO
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Electromagnetic Emission
- class B IEC 55011
- Nema Degree Of Protection
- NEMA 12 UL 50 E
- Product Certifications
- GOST || CCC
- Protective Treatment
- TH
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
- Standards
- UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1805012EN
- Environmental Disclosure
- ENVPEP1805012EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bulb Base
- integral LED
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
- Contacts Type And Composition
- 1 NO
- Device Presentation
- monolithic product
- Device Short Name
- XB7
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Light Source
- LED
- Mounting Diameter
- 22 mm
- Operator Profile
- red projecting, unmarked
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony XB7
- Sale Per Indivisible Quantity
- 10
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- spring return
- [Us] Rated Supply Voltage
- 230 V AC 50/60 Hz
