Schneider Electric XB7EV04BP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

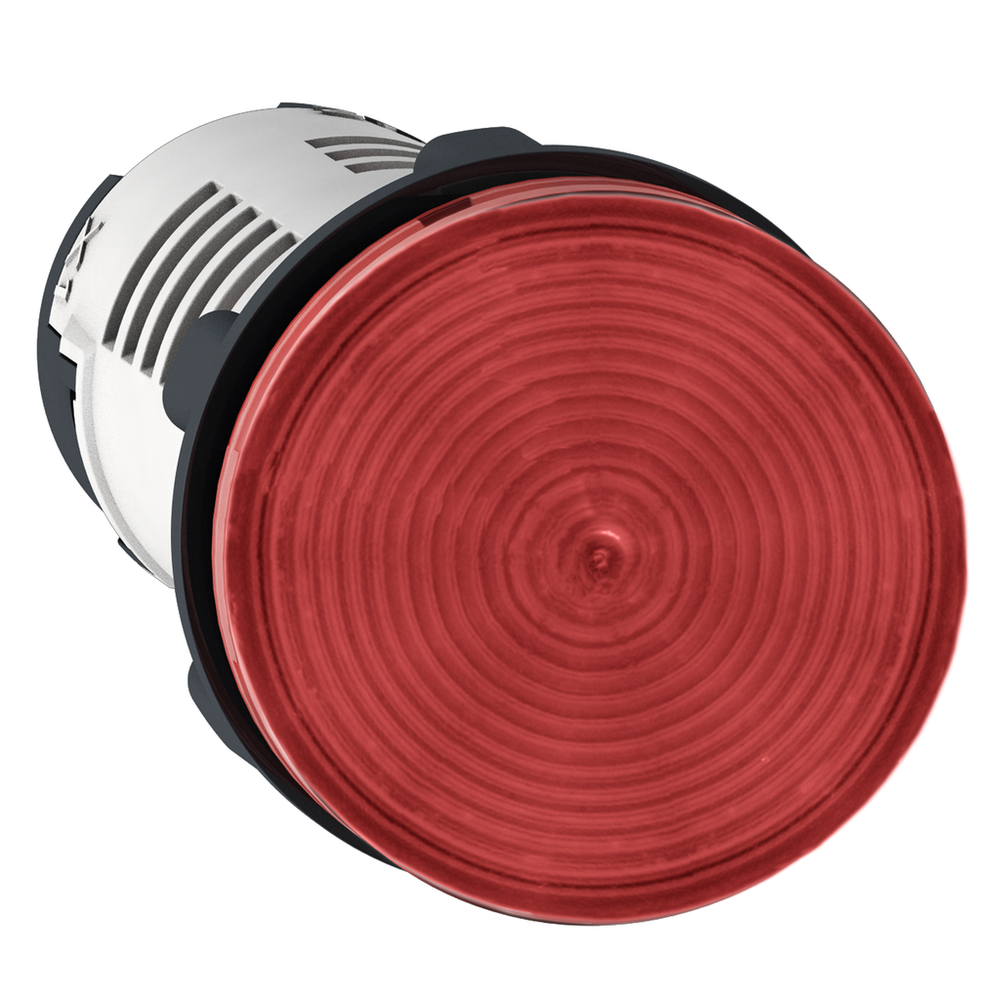

This Harmony XB7, plain lens monolithic red pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.Monolithic pilot light, Harmony XB7, plastic, red, 22mm, integral LED, 24V AC DC
Schneider Electric XB7EV04BP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Current Consumption
- 20...27 mA
- Depth
- 54 mm
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Height
- 29 mm
- Net Weight
- 0.02 kg
- Service Life
- 70000 h at rated voltage and 25 °C
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Terminals Description Iso N°1
- (X1-X2)PL
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Width
- 29 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- disturbing field emission class B conforming to IEC 55011
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Nema Degree Of Protection
- NEMA 4 UL 50 E || NEMA 12 UL 50 E
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1805012EN
- Environmental Disclosure
- ENVPEP1805012EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bulb Base
- integral LED
- Cap/Operator Or Lens Colour
- red
- Device Presentation
- monolithic product
- Device Short Name
- XB7
- Light Source
- LED
- Mounting Diameter
- 22 mm
- Product Or Component Type
- pilot light
- Range Of Product
- Harmony XB7
- Sale Per Indivisible Quantity
- 10
- Shape Of Signaling Unit Head
- round
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
