Description

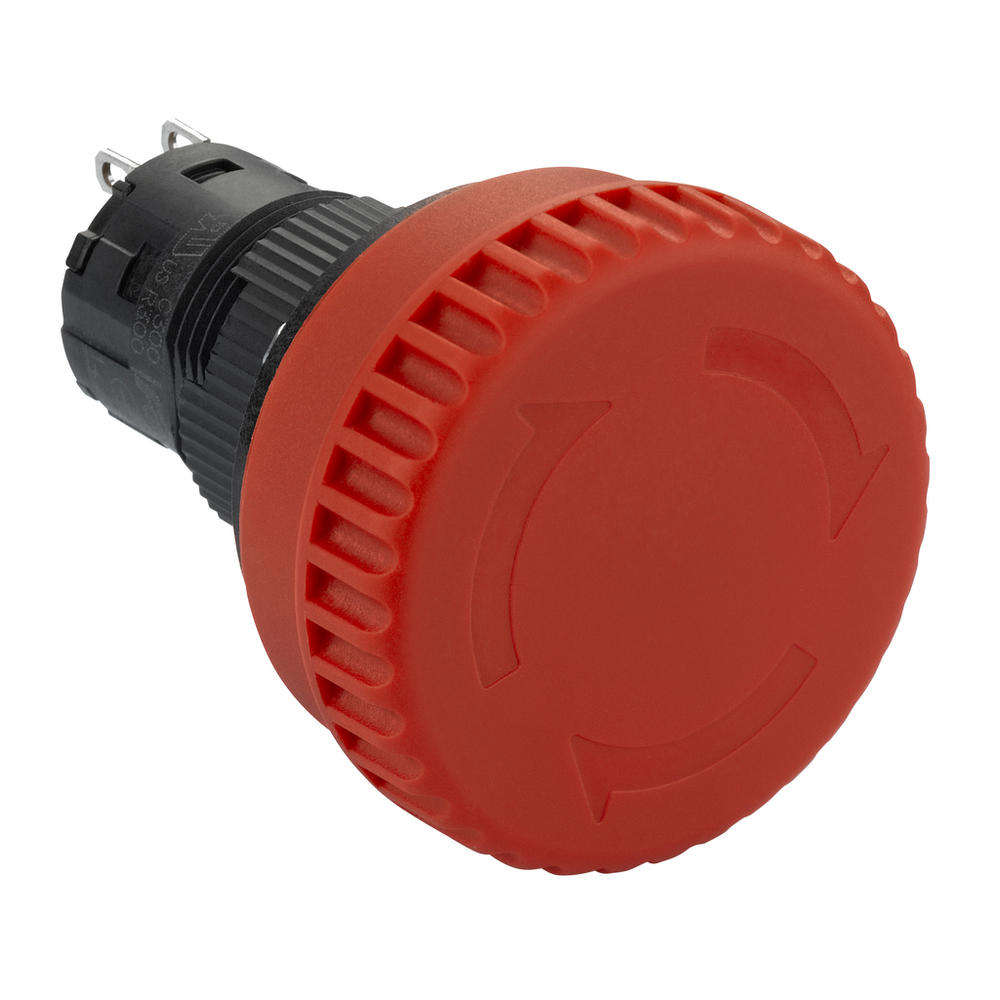

This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a circular head shape, with a turn/pull to release mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn/pull to release, 2NC
Schneider Electric XB6ETN521P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Durability
- 1000000 cycles || 50000 cycles, DC-13
- [Ie] Rated Operational Current
- 1.5 A 120 V, AC-12, C300 IEC 60947-5-1 || 0.3 A 120 V, AC-15, C300 IEC 60947-5-1 || 1 A 240 V, AC-12, C300 IEC 60947-5-1 || 0.3 A 240 V, AC-15, C300 IEC 60947-5-1 || 1 A 24 V, DC-12, R300 IEC 60947-5-1 || 0.7 A 24 V, DC-13, R300 IEC 60947-5-1 || 0.2 A 125 V, DC-12, R300 IEC 60947-5-1 || 0.15 A 125 V, DC-13, R300 IEC 60947-5-1
- Insulation Resistance
- < 100 MOhm
- [Ith] Conventional Free Air Thermal Current
- 5 A
- Marking
- CE
- Mechanical Durability
- 100000 cycles
- Net Weight
- 0.0194 kg
- Short-Circuit Protection
- 6 A fuse gG IEC 60269
- Tightening Torque
- 0.6-1 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV
- [Ui] Rated Insulation Voltage
- 250 V 3)
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Product Certifications
- UR || CCC || TÜV
- Shock Resistance
- 500 m/s²mechanical durability
- Standards
- IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || GB 14048.5 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- +/- 0.7 mm 10-500 Hz)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Connections - Terminals
- solder terminal <= 0.75 mm² AWG 19
- Contacts Type And Composition
- 2 NC
- Device Short Name
- XB6E
- Mounting Diameter
- 16 mm
- Operator Profile
- red mushroom Ø 32 mm
- Product Or Component Type
- complete non-illuminated mushroom head push-button
- Range Of Product
- Harmony XB6E
- Reset
- pull to release || turn to release
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- trigger action
