Schneider Electric XB6EAV4BP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

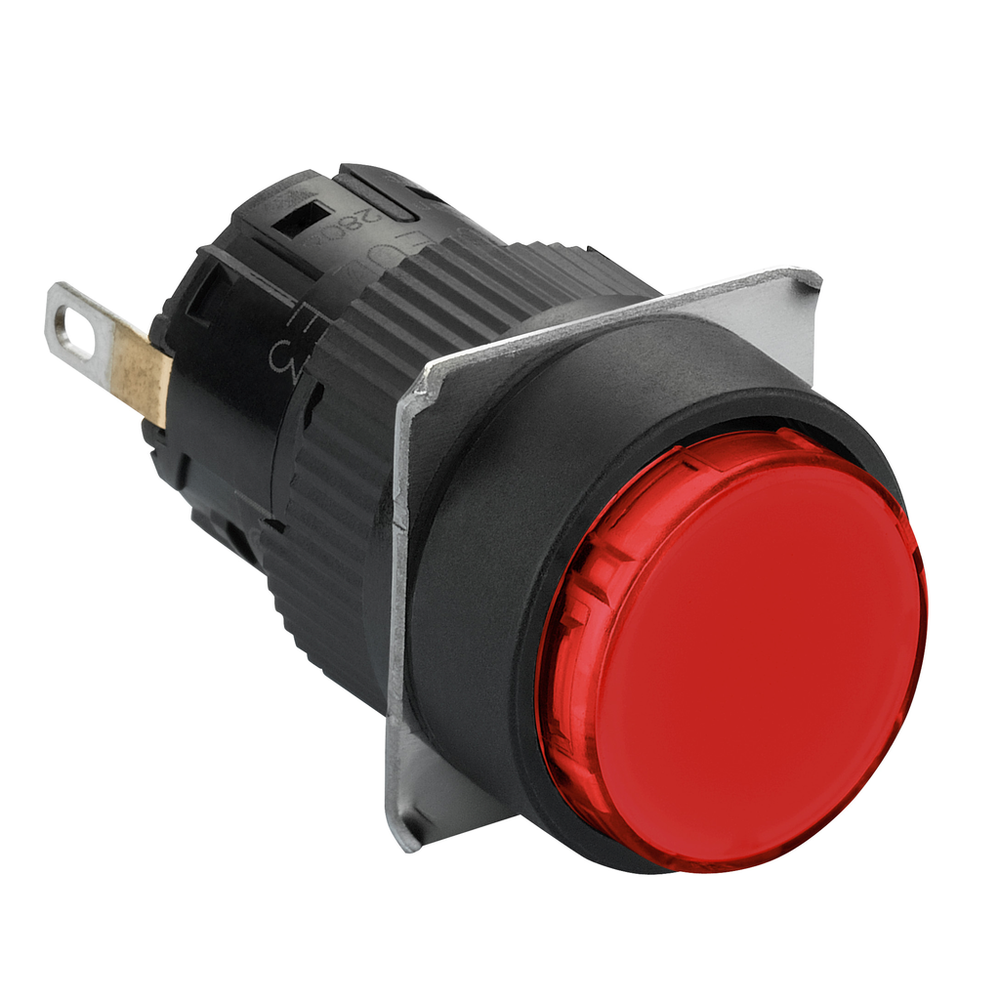

Monolithic pilot light, Harmony XB6E, round red, 16mm, plastic, IP65, integral LED, 24V DC
Schneider Electric XB6EAV4BP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
- Current Consumption
- 10 mA
- Marking
- CE
- Net Weight
- 0.006 kg
- Operating Position
- any position
- Overvoltage Category
- II IEC 60536
- Service Life
- 30000 h
- Signalling Type
- steady
- Tightening Torque
- 0.6-1 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Product Certifications
- cURus || CCC
- Shock Resistance
- 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || JIS C8201-1
- Vibration Resistance
- 1 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Cap/Operator Or Lens Colour
- red
- Device Short Name
- XB6E
- Light Block Supply
- direct
- Light Source
- integral LED
- Mounting Diameter
- 16 mm
- Product Or Component Type
- monolithic pilot light
- Range Of Product
- Harmony XB6E
- Sale Per Indivisible Quantity
- 5
- Shape Of Signaling Unit Head
- round
- [Us] Rated Supply Voltage
- 24 V DC polarised
