Description

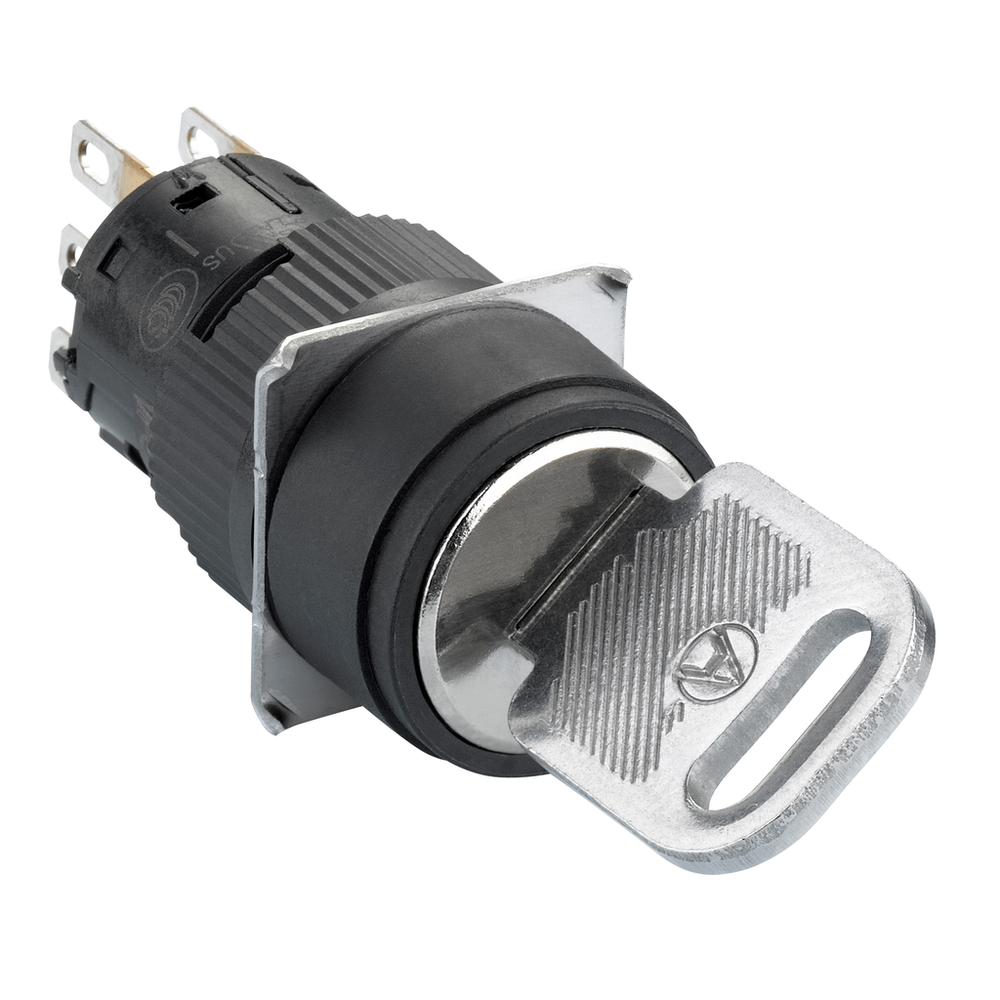

Monolithic selector switch, Harmony XB6E, round black key, 16mm, 2 positions, projecting keylock, stay put, 1CO, key 132
Schneider Electric XB6EAG221P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contact Resistance
- 50 mOhm 1/6 V
- Electrical Durability
- 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 3 A fast connector socket) || 5 A
- Marking
- CE
- Mechanical Durability
- 250000 cycles
- Net Weight
- 0.02 kg
- Overvoltage Category
- II IEC 60536
- Short-Circuit Protection
- 2 A cartridge fuse gG
- Tightening Torque
- 0.6-1 N.m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Product Certifications
- CCC || cURus
- Shock Resistance
- 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C 852 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 1 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Connections - Terminals
- insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
- Contact Operation
- snap action
- Contacts Material
- gold-flashed silver
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- XB6E
- Key Number
- 132
- Key Withdrawal Position
- in any position
- Mounting Diameter
- 16 mm
- Operator Position Information
- 2 positions
- Operator Profile
- key switch
- Product Or Component Type
- monolithic selector switch
- Range Of Product
- Harmony XB6E
- Sale Per Indivisible Quantity
- 5
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- stay put
