Description

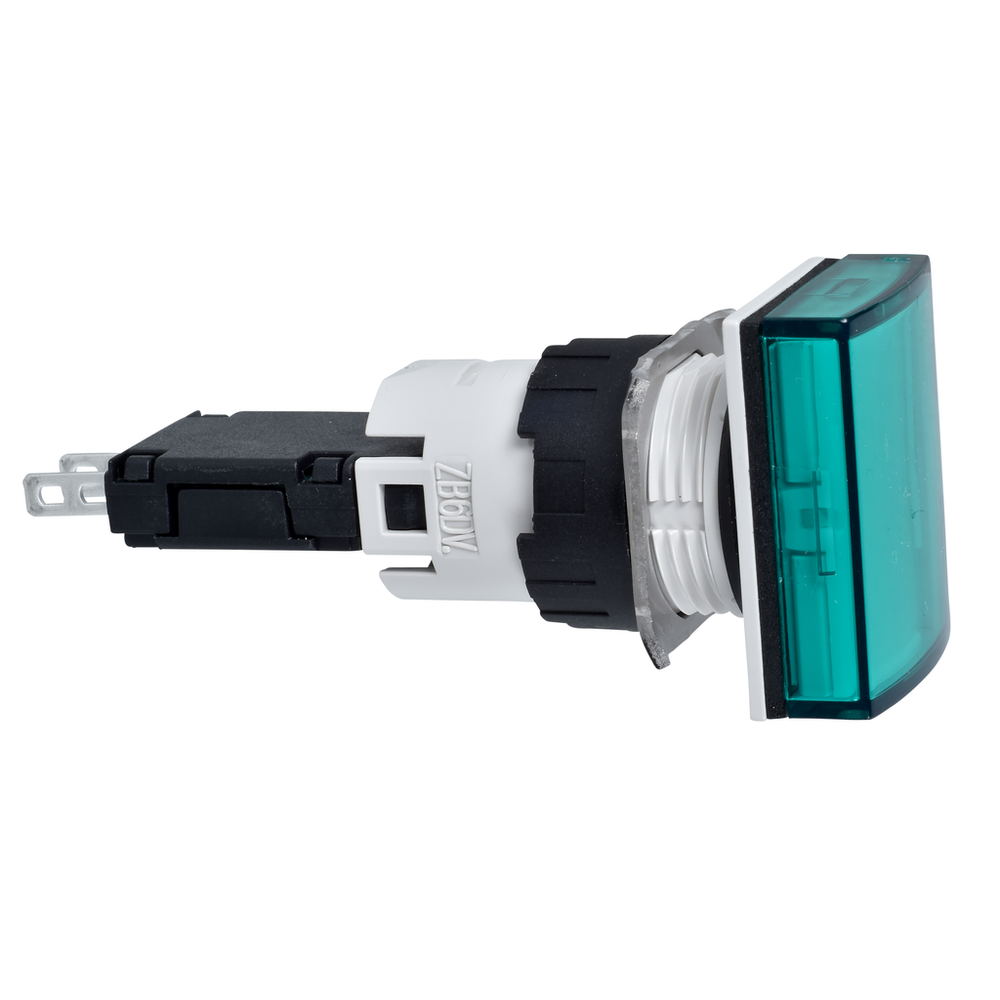

XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This operator is a complete 16mm pilot light. Pilot light has a green rectangular lens. Pilot light has a 12-24 VAC/VDC LED light module. Light module has 2.8 x 0.5 mm faston connectors. Selector switch is 0.71 inches tall, 0.94 inches wide and 2.24 inches deep. Selector switch weighs 0.03 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. "This product is certified by CCC, CSA, UL and GOST. It meets JIS C 852, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1 and JIS C8201-1 standards." "It is installed into a Ø 16mm panel cutout." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."16mm push button, Harmony XB6, pilot light, rectangular green lens, integral 12/24V LED light module
Schneider Electric XB6DV3BB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- Current Consumption
- 15 mA
- Depth
- 57 mm
- Height
- 18 mm
- Net Weight
- 0.015 kg
- Operating Position
- any position
- Signalling Type
- steady
- Supply Voltage Limits
- 6-30 V AC/DC
- Surge Withstand
- 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
- Terminals Description Iso N°1
- (+ -)PL
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- Width
- 24 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Electromagnetic Emission
- class B EN 55011
- Ip Degree Of Protection
- IP65 IEC 60529
- Nema Degree Of Protection
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Product Certifications
- CCC || CSA || UL || GOST
- Protective Treatment
- TC
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- JIS C 852 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Bulb Base
- integral LED
- Cap/Operator Or Lens Colour
- green
- Device Short Name
- XB6
- Light Block Supply
- direct
- Light Source
- LED
- Mounting Diameter
- 16 mm
- Product Or Component Type
- complete pilot light
- Range Of Product
- Harmony XB6
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- rectangular
- [Us] Rated Supply Voltage
- 12...24 V AC/DC
