Description

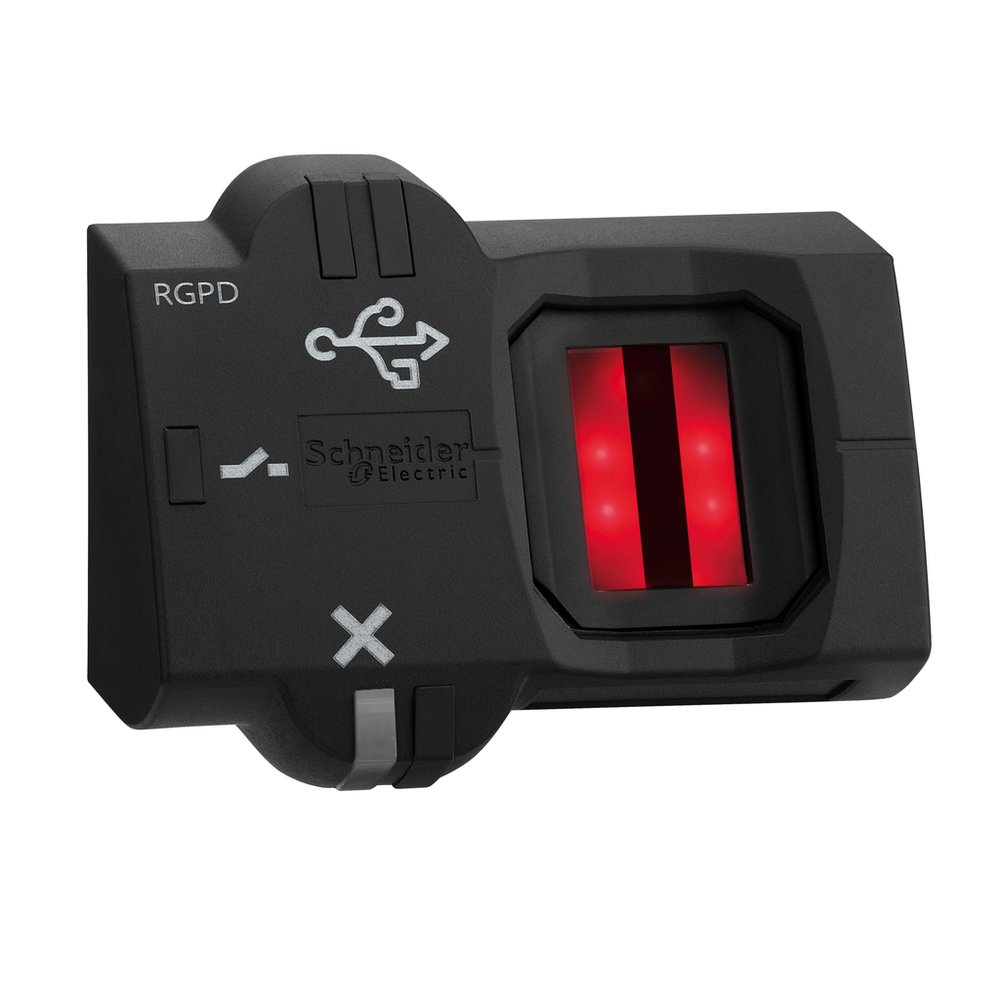

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Schneider Electric XB5S7B2M12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Insulation Material
- PvR
- Current Consumption
- <= 70 mA no-load
- Electrical Connection
- M12 connector 0.2 m
- Enclosure Material
- polyamide PA66
- Function Of Module
- monostable
- Local Signalling
- for output state indicator 1 LED (green) || for administrator's registration mode 1 LED (orange) || for operator's registration mode 1 LED (orange) || for error 1 LED (red) || for reset 1 LED (red)
- Marking
- CE
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
- Maximum Delay Recovery
- 1.5 s
- Maximum Delay Response
- 1.5 s
- Maximum Switching Current
- 200 mA
- Net Weight
- 0.183 kg
- Operating Position
- horizontal position || flat surface installation || vertical surface installation
- Protection Type
- overload protection || short-circuit || reverse polarity
- Short-Circuit Protection
- 250 mA external fuse gG
- Supply Voltage Limits
- 20-30 V DC
- [Ures] Residual Voltage
- 1 V closed state
- [Us] Rated Supply Voltage
- 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Nema Degree Of Protection
- NEMA 12
- Product Certifications
- CSA || UL
- Range Of Product
- Harmony XB5S
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Standards
- IEC 61000-6-2 || IEC 61000-6-4
- Vibration Resistance
- +/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Device Short Name
- XB5S
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Memory Usage
- 200 users with up to 2 fingerprints per user
- Mounting Diameter
- 22 mm
- Operator Profile
- fingerprint reader
- Output Type
- PNP
- Product Or Component Type
- biometric switch RGPD
- Product Specific Application
- industrial machines || materials handling
- Sale Per Indivisible Quantity
- 1
- Type Of Operator
- momentary
