Schneider Electric XB5RMA04
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

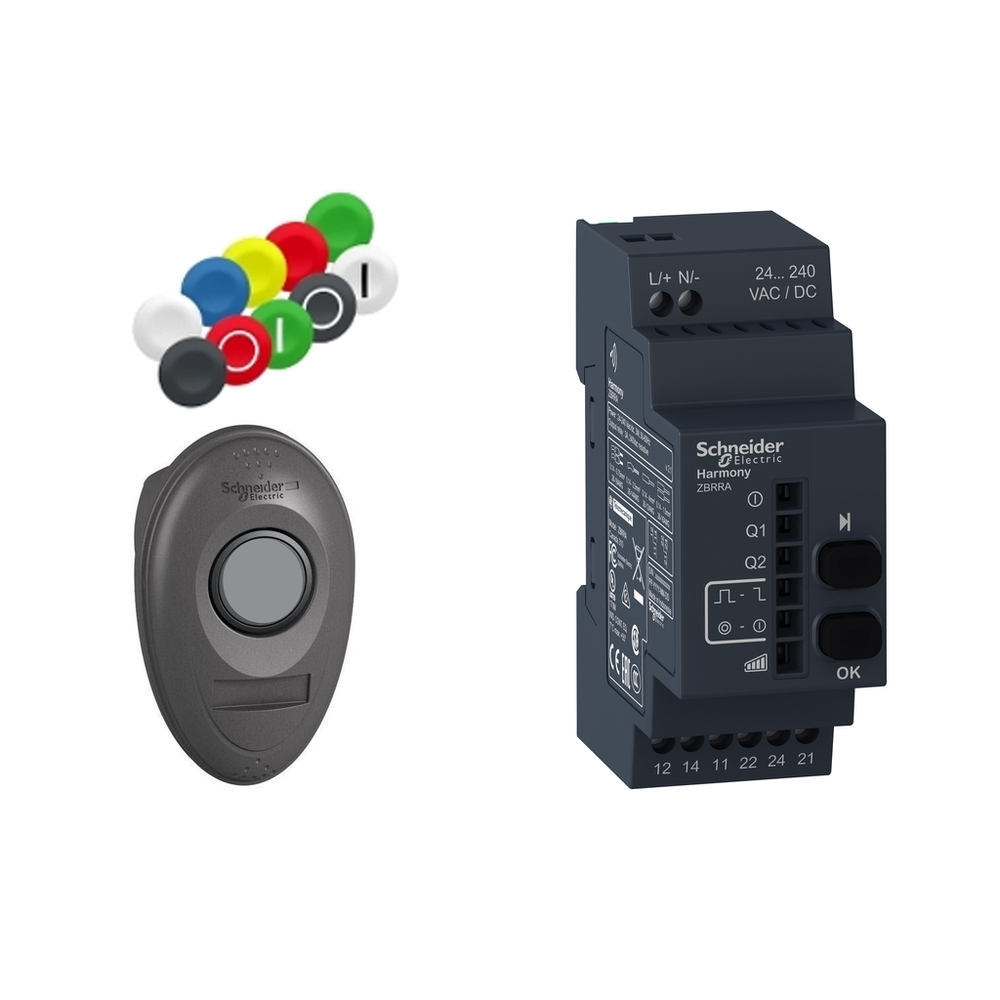

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar, in handy box and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 250g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.Pack with 1 wireless push button + 1 configurable receiver + 1 set of 10 colored caps, Harmony XB5, plastic, 22mm, 24...240V AC DC
Schneider Electric XB5RMA04 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Antenna Gain
- 0 dBi
- Bandwidth
- 5-5 MHz
- Communication Port Protocol
- Zigbee IEEE 802.15.4
- Compatibility Code
- XB5R
- Control Type
- wireless and batteryless push-button handy box assembled on fixing collar
- Customizable
- no
- Kit Composition
- 1 22 mm || 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 push-button head 22 mm || 1 handy box
- Max Power Consumption In W
- 1 mW
- Modulation Technique
- O-QPSK
- Number Of Channels
- 1
- Status Led
- 1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
- Type Of Receiver
- programmable receiver 2 relays)
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- 24...240 V
Contractual warranty
- Warranty
- 18 months
Environment
- Marking
- CE
- Product Certifications
- CCC || CSA || C-tick || GOST || UL
- Radio Agreement
- ANATEL || SRRC || ICASA || FCC || ARIB T66 || RSS
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1103010EN
- Environmental Disclosure
- ENVPEP101106EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Antenna Type
- omnidirectional
- Device Short Name
- XB5R
- Head Material
- plastic
- Level Or Class
- 5M00G7W
- Product Or Component Type
- wireless and batteryless package
- Range Of Product
- Harmony XB5R
- Transmission Frequency
- 2405 MHz transmitter || 2405 MHz receiver
