Description

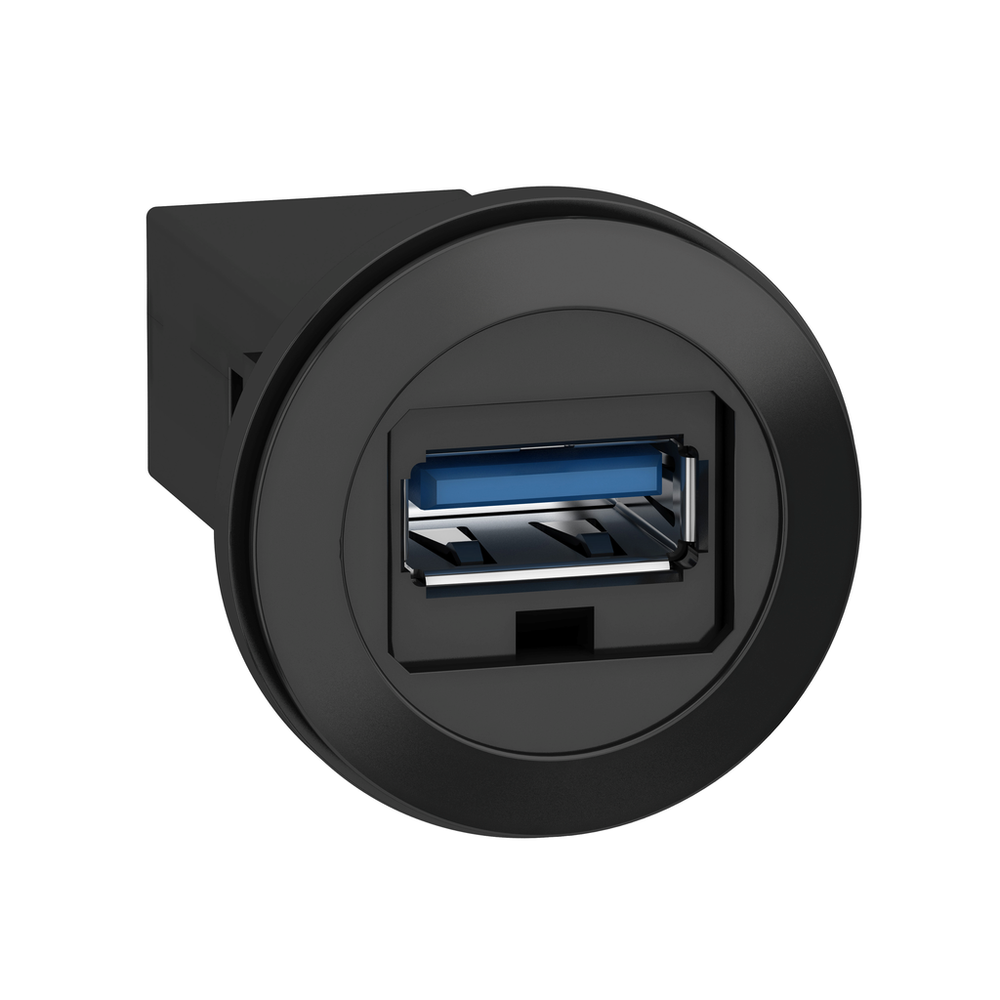

This Harmony XB5, panel mounted USB port enables connection to your machine of USB devices. This panel mounted USB port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet doorIt is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet. It is easily installed into standard 22mm diameter cut-outs.Panel mounted USB port, Harmony XB5, 3.0 port, plastic, 22mm, for USB interface jack type A
Schneider Electric XB5PUSB3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Bezel Material
- plastic
- Depth
- 44 mm
- Fixing Collar Material
- plastic
- Height
- 28 mm
- Integrated Connection Type
- USB 3.0 type A
- Ip Degree Of Protection
- front IP20 IEC 60529 || back IP20 IEC 60529
- Minimum Number Of Matings
- 1500 cycles
- Mounting Diameter
- 22 mm
- Net Weight
- 0.0169 kg
- Product Certifications
- CSA || UL Listed
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 11 ms 3 chocks in each direction X, Y and Z
- Standards
- USB 3.0
- Thickness
- 6-6 mm without protection cover || 1.5-5 mm with protection cover plastic || 1.5-5 mm with protection cover rigid plastic || 1.5-2.5 mm with protection cover metal
- Tightening Torque
- 1.5 N.m
- Vibration Resistance
- 5.35 gn15 min per axis
- Width
- 28 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XB5P
- Product Or Component Type
- panel mounted USB port
- Range Of Product
- Harmony XB5
