Schneider Electric XB5FA11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

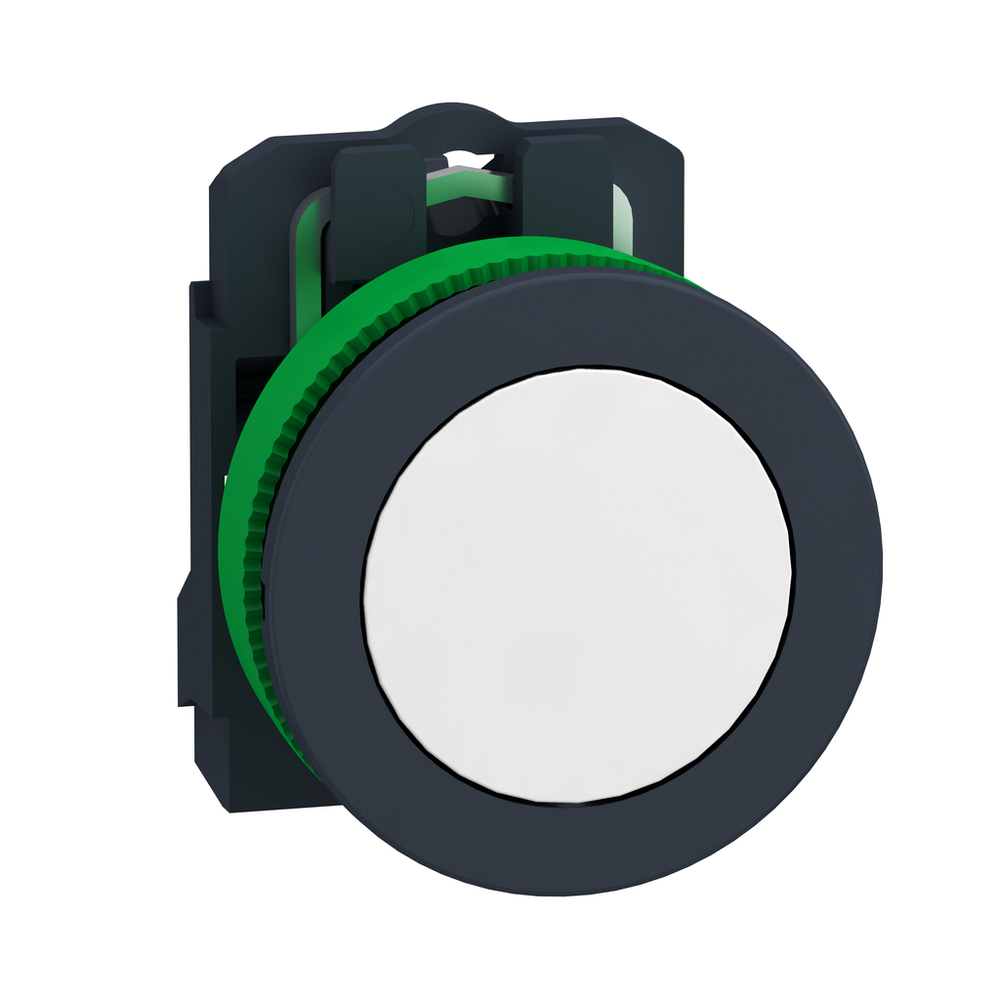

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.Antimicrobial Push button flush mounted, Harmony XB5, plastic, white, 30mm, spring return, unmarked, 1NO
Schneider Electric XB5FA11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- XB5
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Customizable
- 1
- no
- Depth
- 55 mm
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
- Gcr Bridge
- XB5FACUST01
- Height
- 42 mm
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Mechanical Durability
- 10000000 cycles
- Operating Force
- 3.5 N NC changing electrical state
- Operating Travel
- 2.6 mm NC changing electrical state)
- Positive Opening
- without
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Screw Head
- cross Philips no 1
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Terminals Description Iso N°1
- (21-22)NC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Width
- 36.6 mm
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL Listed || CSA
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic || dark grey plastic
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Device Short Name
- XB5F
- Fixing Collar Material
- plastic
- Head Type
- built-in-flush
- Mounting Diameter
- 30.5 mm
- Operator Profile
- white flush, unmarked
- Product Compatibility
- ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
- Product Or Component Type
- push-button
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- spring return
