Description

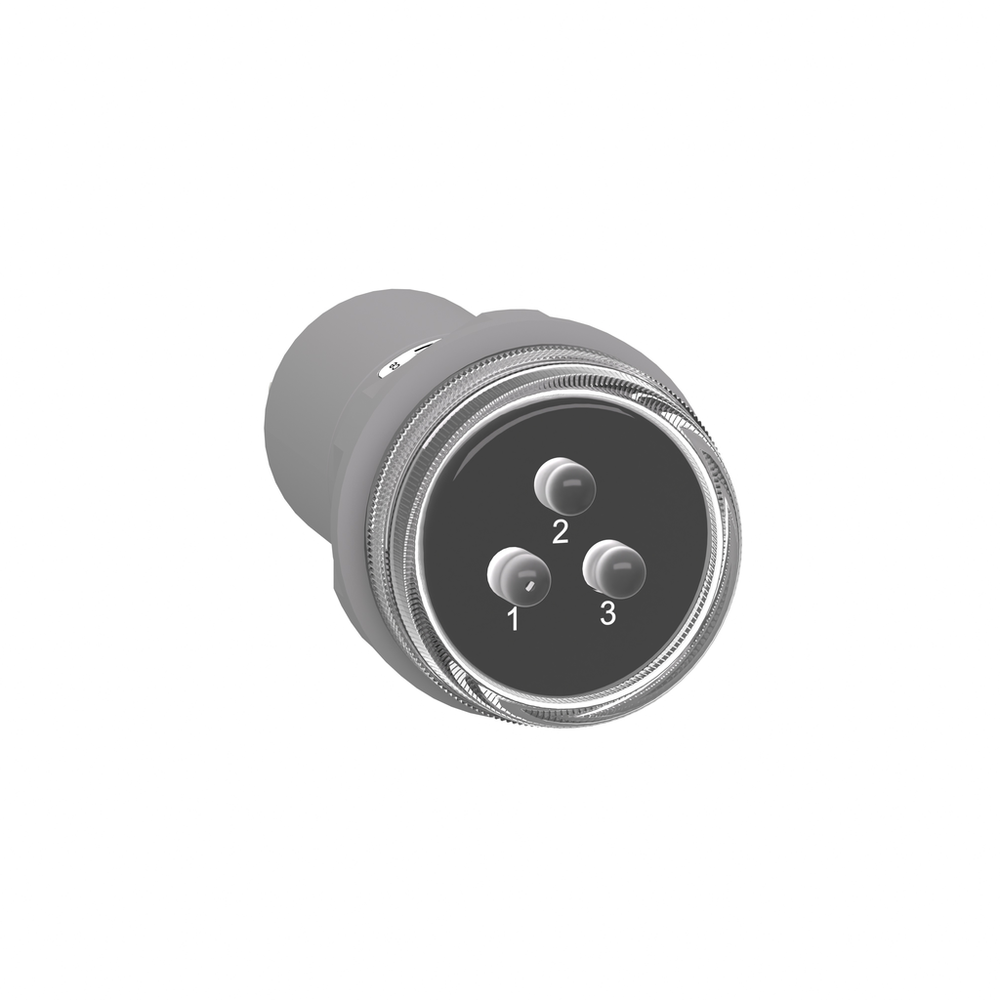

This Harmony XB5, plain lens monolithic white 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards. It is designed to fit in a standard 22mm cutout.Monolithic pilot light, Harmony XB5, 3 phases Voltage, indicator with 3 LED, white, 400V AC
Schneider Electric XB5EV57L4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- XB5
- Connections - Terminals
- Faston terminals 6.3 mm IEC 60947-1
- Current Consumption
- 2.6 mA
- Depth
- 77 mm
- Height
- 65.5 mm
- Net Weight
- 0.065 kg
- Service Life
- 100000 h at rated voltage and 25 °C
- Supply Voltage Limits
- 450-450 V AC
- Surge Withstand
- 1 kV IEC 61000-4-5
- [Uimp] Rated Impulse Withstand Voltage
- 1 kV IEC 61000-4-5
- Width
- 36 mm
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
- Ik Degree Of Protection
- IK10 IEC 50102
- Ip Degree Of Protection
- IP67 front face) || IP20 back face)
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Standards
- IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Bulb Base
- integral LED
- Cap/Operator Or Lens Colour
- clear
- Device Presentation
- monolithic product
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Light Source
- protected LED
- Light Source Colour
- white
- Mounting Diameter
- 30 mm
- Phase
- 3 phase
- Product Or Component Type
- monolithic pilot light
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
