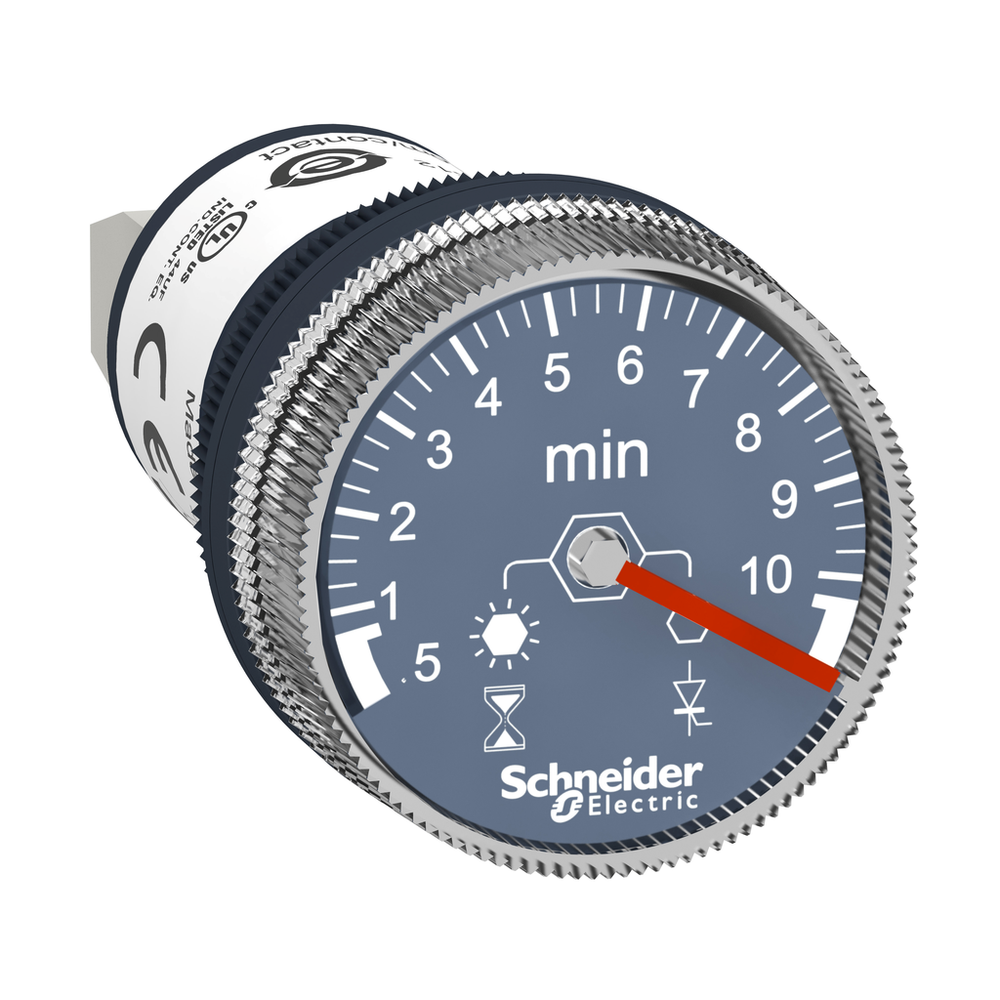

Schneider Electric XB5DTGM4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5 to 10 minutes and is supplied with a 100V to 240V AC/DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10min, 100…240V AC DC
Schneider Electric XB5DTGM4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -20-80 °C
- Bezel Material
- plastic
- Connections - Terminals
- screw terminals 1 x 4 mm² IEC 60947-1 || screw terminals 1 x 2.5 mm² IEC 60947-1
- Device Presentation
- monolithic product
- Diameter
- 29 mm
- Dielectric Strength
- 1500 V IEC 61812-1
- Disturbance Radiated/Conducted
- class B EN 50022
- Electromagnetic Compatibility
- electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011
- Fixing Collar Material
- plastic
- Height
- 62 mm
- Immunity To Radioelectric Fields
- 10 V level 3 IEC 61000-4-6
- Ip Degree Of Protection
- front IP65 IEC 60529 || back IP20 IEC 60529
- Local Signalling
- LED green, steady timing in progress || LED, off no timing in progress and output relay energised
- Maximum Residual Current
- 5 mA
- Maximum Voltage Drop
- 5 V
- Minimum Switching Current
- 10 mA
- Mounting Diameter
- 22 mm
- Net Weight
- 0.027 kg
- Output Short-Circuit Protection
- no
- Output Type
- thyristor
- Overvoltage Category
- class 3 IEC 60536 || class 3 IEC 60664-1
- Pollution Degree
- 3 IEC 60664-1
- Power Consumption In Va
- 1.5 VA
- Power Consumption In W
- 1 W
- Product Certifications
- UL Listed || CE
- Protection Type
- overvoltage protection
- Repeat Accuracy
- +/- 0.5 %
- Reset Time
- 30 ms after time delay on de-energisation || 60 ms during time delay on de-energisation
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 || 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 || 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1
- Shape Of Signaling Unit Head
- round
- Shock Resistance
- +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
- Standards
- UL 508 || IEC 61812-1
- Supply Voltage Limits
- 93.5-253 V AC/DC
- Surge Withstand
- 2 kV, level 3 IEC 61000-4-5
- Temperature Drift
- +/- 0.05 %/°C
- Temporary Permissible Current
- 10 A 0.01 s
- Thickness
- 1-6 mm
- Tightening Torque
- 0.5 N.m
- Time Delay Range
- 0.5...10 min
- Time Delay Type
- A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1 || 4 kV IEC 60664-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1 || 250 V IEC 60664-1
- [Us] Rated Supply Voltage
- 110...230 V AC/DC
- Vibration Resistance
- 0.15 mm 10-60 Hz)IEC 60068-2-6 || 2 gn 60-150 Hz)IEC 60068-2-6
- Voltage Drift
- +/- 0.2 %/V
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- timer
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
