Schneider Electric XB5DSG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

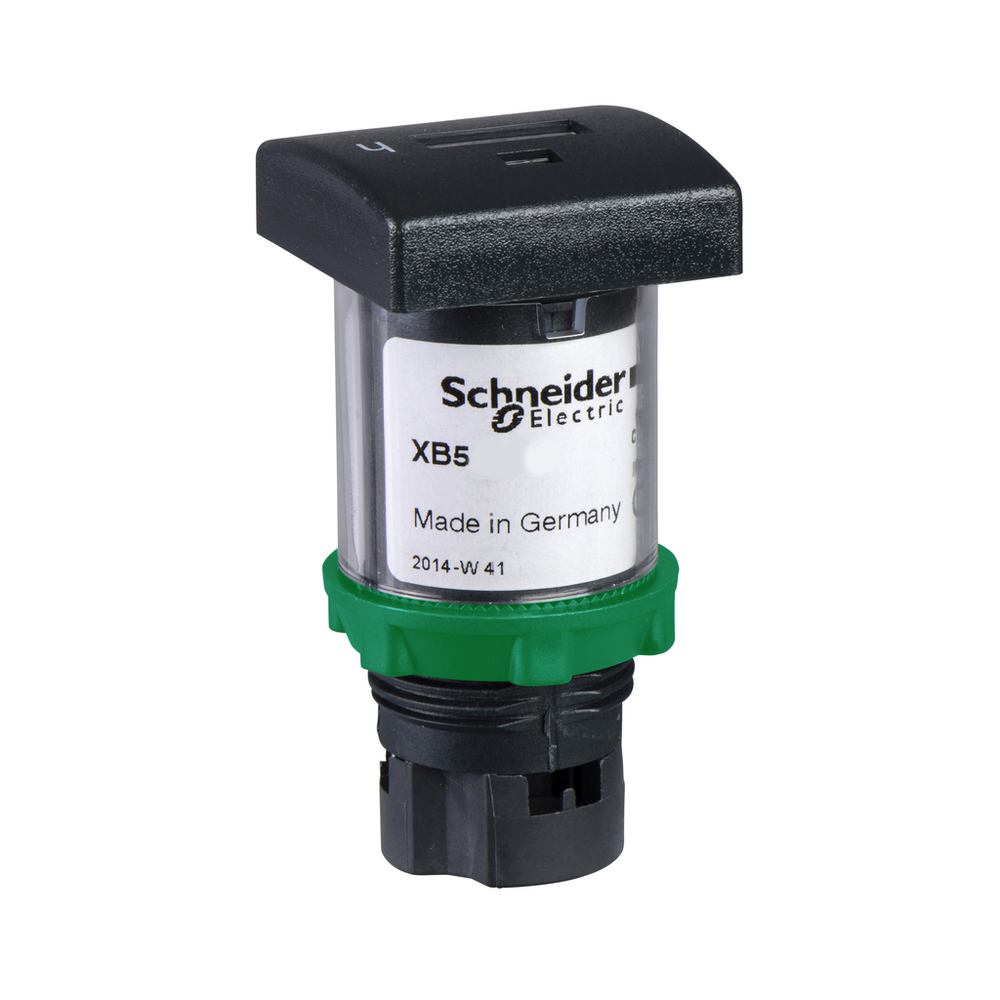

This Harmony XB5, hour counter has 5 display digits and is supplied with 120V AC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 120V AC
Schneider Electric XB5DSG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 8 mA
- Depth
- 60 mm
- Device Presentation
- monolithic product
- Display Digits
- 5
- Height
- 30 mm
- Mounting Mode
- flush-mounted
- Mounting Support
- panel mounting
- Net Weight
- 0.045 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Us] Rated Supply Voltage
- 120 V +/- 10 %
- Width
- 30 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- CE || UL
- Protective Treatment
- TH
- Standards
- IEC 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- dark grey plastic
- Mounting Diameter
- 22 mm
- Product Or Component Type
- hour counter
- Range Of Product
- Harmony XB5
- Reset
- without
