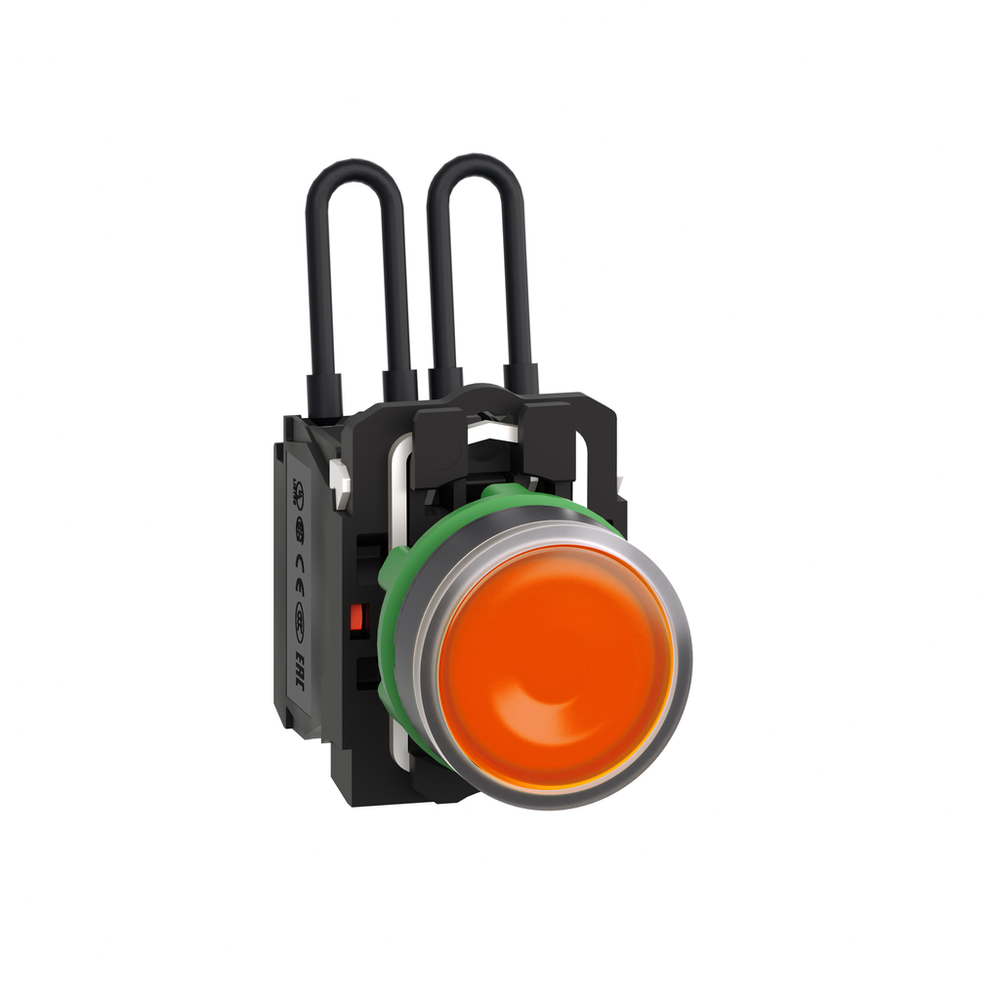

Schneider Electric XB5AW25G5
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony XB5, push-to-test pilot light orange is supplied with 110V to 120V AC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.Push to test pilot light, Harmony XB5, universal LED, orange, plastic, 22mm, 110...120V
Schneider Electric XB5AW25G5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cap/Operator Or Lens Colour
- orange
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Current Consumption
- 14 mA
- Depth
- 55 mm
- Embedding Depth
- 46 mm
- Fixing Collar Material
- plastic
- Height
- 42 mm
- Light Source
- universal LED
- Light Source Colour
- orange
- Mounting Diameter
- 22 mm
- Net Weight
- 0.047 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Service Life
- 1.5 year(s)
- Shape Of Signaling Unit Head
- round
- Signalling Type
- steady
- Surge Withstand
- 1 kV
- Tightening Torque
- 0.8-1.2 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
- Width
- 30 mm
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Ik Degree Of Protection
- IK05 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL Listed || CSA || BV || DNV || LROS (Lloyds register of shipping) || GL
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || GB 14048.5 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Specifications
- Bezel Material
- plastic
- Device Short Name
- XB5
- Product Or Component Type
- push-to-test pilot light
- Range Of Product
- Harmony XB5
