Schneider Electric XB5AS84462
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

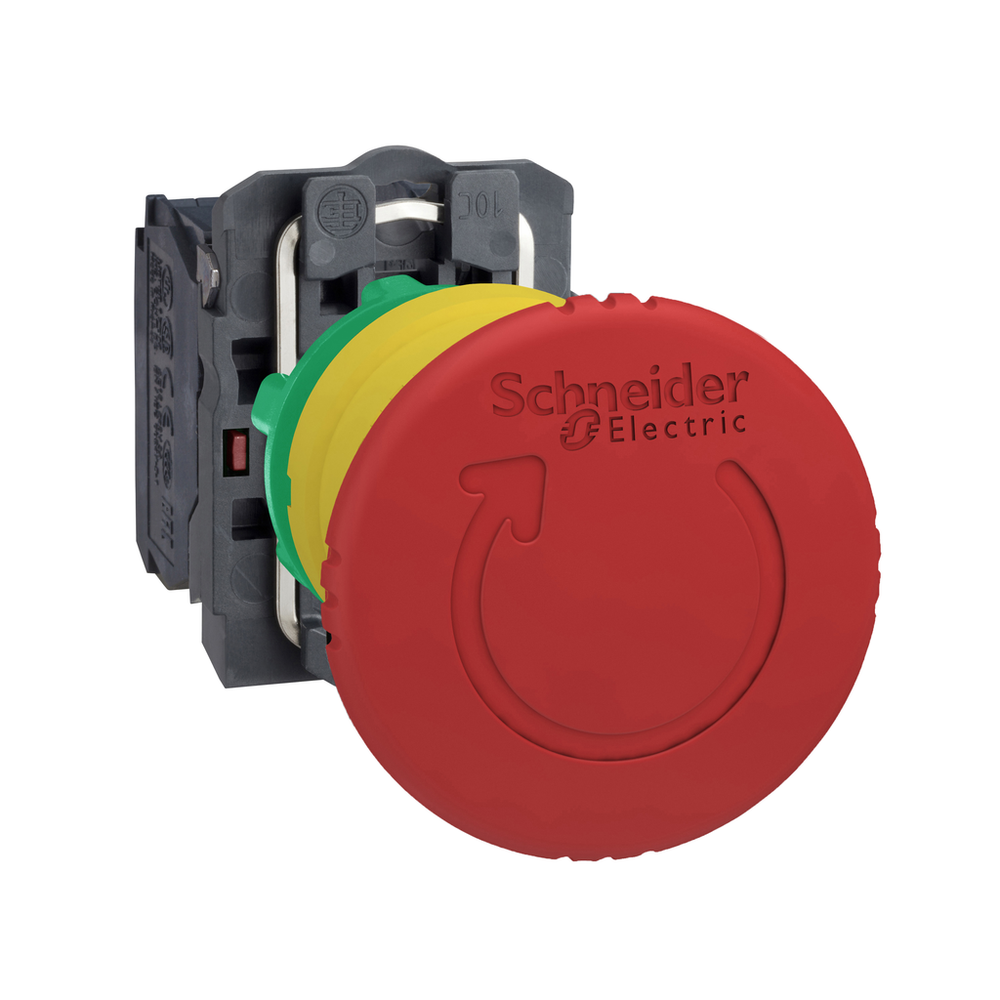

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger/latching turn to release, 2NC with monitoring
Schneider Electric XB5AS84462 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Material
- silver alloy (AgNi) || silver alloy (AgSnO2)
- Contacts Usage
- monitoring contact || standard contacts
- Depth
- 85 mm
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm
- Electrical Durability
- 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 3.4 mA in clean environment IEC 60947-5-4
- Fixing Mode
- fixing nut 2.2 N.m +/- 0.2)
- Height
- 43 mm
- [Ie] Rated Operational Current
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 0.11 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 6 A IEC 60947-5-1
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.059 kg
- Operating Force
- 47 N
- Operating Travel
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Shape Of Screw Head
- cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 V 3)IEC 60947-1
- Width
- 40 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 60068-2-75
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- CSA || BV || UL Listed || LROS (Lloyds register of shipping) || DNV || CE || CCC || CB Scheme || UKCA || EAC
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60204-1 || IEC 60947-5-4 || IEC 60364-5-53 || ISO 13850 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-1 || JIS C8201-5-1 || GB/T 14048.5 || BS EN 60947-5-1 || GOST IEC 60947-5-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- plastic
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
- Contact Operation
- slow-break
- Device Presentation
- complete product
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Product Or Component Type
- emergency switching off push-button || emergency stop push-button
- Range Of Product
- Harmony XB5
- Reset
- turn to release
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- trigger action and mechanical latching
