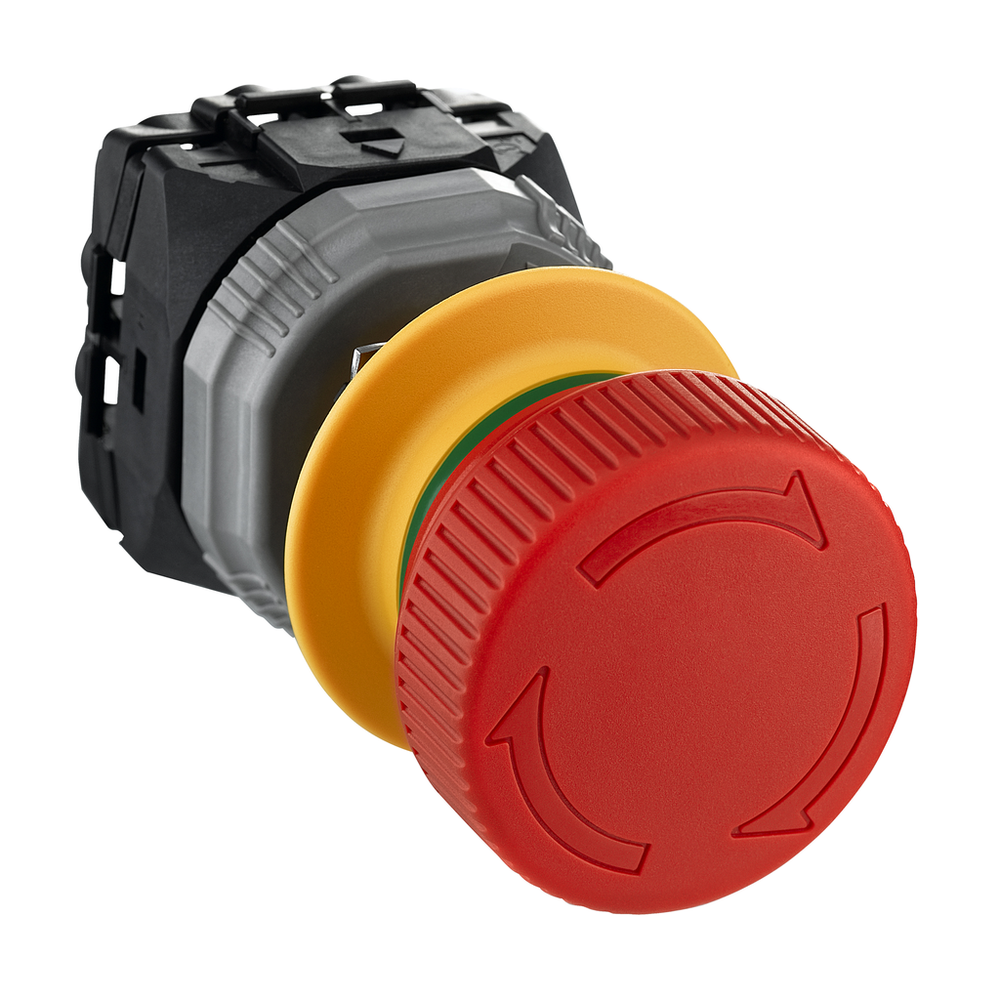

Schneider Electric XB5AS84449
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.Emergency stop, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, monitoring contact, 1 NO + 2 NC
Schneider Electric XB5AS84449 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Material
- silver alloy - gold plated (Ag/Cu)
- Contacts Usage
- monitoring contact
- Depth
- 79.5 mm
- Electrical Durability
- 100000 cycles, AC-15, 1.5 A 240 V 1800 cyc/h 0.4 IEC 60947-5-1 appendix C || 100000 cycles, AC-15, 3 A 120 V 1800 cyc/h 0.4 IEC 60947-5-1 appendix C || 100000 cycles, DC-13, 0.1 A 250 V 1800 cyc/h 0.4 IEC 60947-5-1 appendix C || 100000 cycles, DC-13, 0.22 A 125 V 1800 cyc/h 0.4 IEC 60947-5-1 appendix C
- Height
- 42 mm
- [Ie] Rated Operational Current
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 5 A IEC 60947-5-1
- Mechanical Durability
- 100000 cycles
- Net Weight
- 0.0905 kg
- Positive Opening
- with IEC 60947-5-1 appendix K
- Shape Of Screw Head
- slotted flat Ø 5.5 mm || cross JIS No 2 || cross Philips No 2
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC || (11-12)NC
- Tightening Torque
- 0.8-1.5 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 61140
- Width
- 42 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Ip Degree Of Protection
- IP65 IEC 60529 front face) || IP2X back face)
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- CSA || UL Listed
- Shock Resistance
- 150 m/s² 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60204-1 || IEC 60947-1 || ISO 13850 || JIS C8201-1
- Vibration Resistance
- 50 m/s² 10-500 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Connections - Terminals
- screw clamp terminals, <= 1.25 mm² with cable end IEC 60947-1 || screw clamp terminals, <= 1.25 mm² without cable end IEC 60947-1
- Contact Operation
- slow-break
- Device Presentation
- complete product
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Product Or Component Type
- emergency stop push-button
- Range Of Product
- Harmony XB5
- Reset
- push-pull || turn to release
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- trigger action and mechanical latching with mechanical state indicator
