Schneider Electric XB4BW23BM5GEX
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

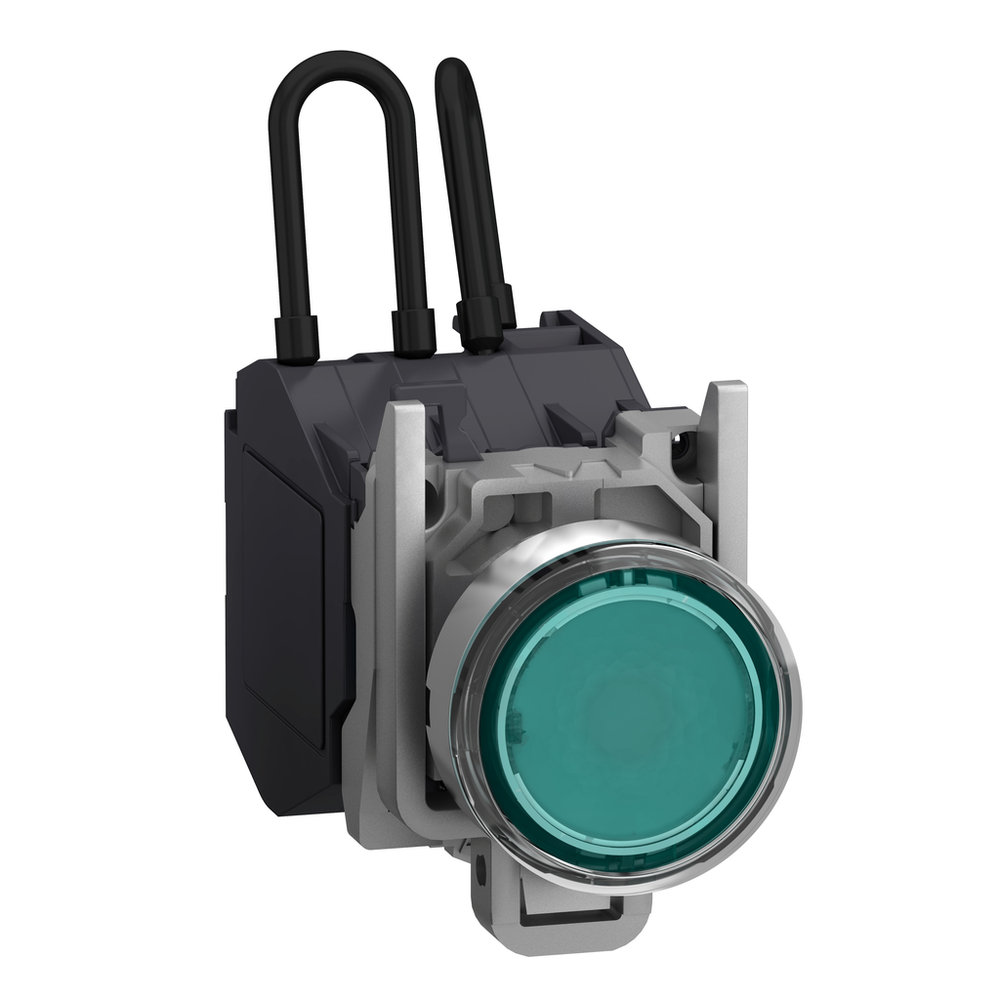

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This push-to-test pilot light has a circular head shape and comes with integral green LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pilot light with plain lens provides clear visual feedback on the status of machines. It comes with 1 NO contact with slow-break operation. This pilot light has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.Push to test pilot light, Harmony XB4, Explosive atmosphere 24 240 V Green
Schneider Electric XB4BW23BM5GEX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cap/Operator Or Lens Colour
- green
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Current Consumption
- 2...10 mA
- Depth
- 72 mm
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
- Embedding Depth
- 58 mm
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm
- Fixing Collar Material
- zamak
- Height
- 30 mm
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Light Source
- integral LED
- Marking
- Ex tb IIIC Db || II 2 GD || Ex db eb mb IIC Gb
- Mechanical Durability
- 5000000 cycles
- Mounting Diameter
- 22 mm
- Net Weight
- 0.117 kg
- Operating Force
- 3.962 N
- Operating Travel
- 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
- Operator Additional Information
- booted (clear silicon)
- Positive Opening
- without
- Sale Per Indivisible Quantity
- 1
- Service Life
- 100000 h
- Shape Of Signaling Unit Head
- round
- Signalling Type
- steady
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 415 V
- [Us] Rated Supply Voltage
- 24...254 V AC/DC
- Width
- 46.2 mm
Environment
- Ambient Air Temperature For Operation
- -20-75 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dust Zone
- zone 21 - 22
- Gas Zone
- zone 1 - 2
- Ip Degree Of Protection
- IP66 IEC 60529
- Overvoltage Category
- I IEC 60536
- Product Certifications
- INERIS 04ATEX9004U
- Protective Treatment
- TH
- Standards
- IEC 60079-0:2009 || IEC 60079-7:2009 || EN/IEC 60079-18:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- chromium plated metal
- Device Short Name
- XB4
- Product Or Component Type
- push-to-test pilot light
- Range Of Product
- Harmony XB4
