Schneider Electric XB4BD912R470K
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

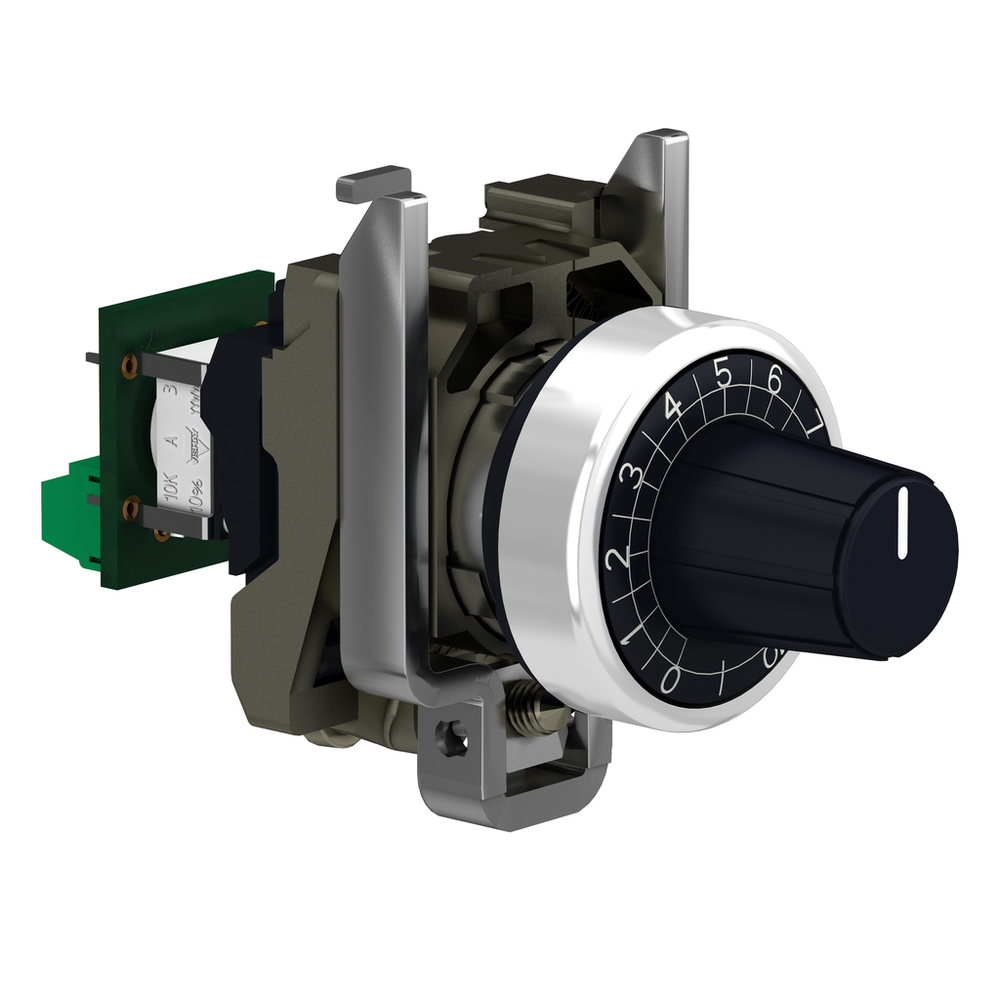

This Harmony XB4 potentiometer has a resistance of 470kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.Complete potentiometer, Harmony XB4, metal, 22mm, 470K
Schneider Electric XB4BD912R470K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Bezel Material
- chromium plated metal
- Cad Overall Depth
- 82 mm
- Cad Overall Height
- 47 mm
- Cad Overall Width
- 30 mm
- Colour Of Marking
- white
- Electrical Shock Protection Class
- class II IEC 60536
- Group Of Product
- potentiometer knurled knob
- Ik Degree Of Protection
- IK06 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529
- Main Group
- potentiometer
- Material
- cermet
- Mechanical Durability
- 50000 cycles
- Mounting Diameter
- 22 mm
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Net Weight
- 0.095 kg
- Ohmic Value
- 470000 Ohm
- Operator Profile
- knurled knob, with white)
- Potentiometer Characteristic
- linear
- Precision Of Internal Conversion Resistor
- +-10%
- Product Certifications
- CSA || BV || UL Listed
- Product Compatibility
- Ø 6 mm shaft
- Protective Treatment
- TH
- Rated Power In W
- 0.26 W 70 °C
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-1 || CSA C22.2 No 14 || UL 508
- [Us] Rated Supply Voltage
- <= 30 V AC || <= 42 V DC
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Presentation
- complete product
- Device Short Name
- XB4
- Head Type
- standard
- Product Or Component Type
- potentiometer
- Range Of Product
- Harmony XB4
