Description

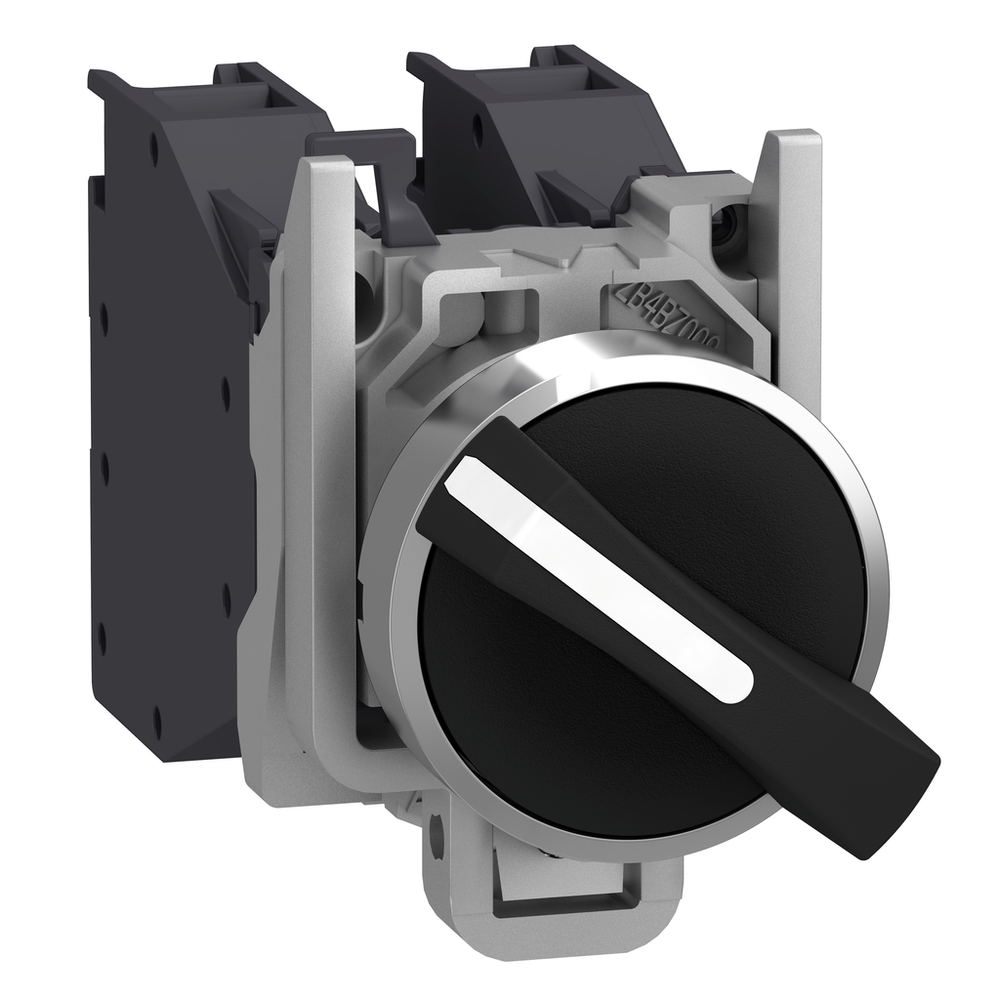

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete selector switch comes with a black standard handle. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 3 operating positions and operates with a stay-put mechanism. It has 2 NO contact with slow-break operation. This metal selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.Selector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black standard handle, stay put, screw clamp terminals, 2NO
Schneider Electric XB4BD33GEX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Contact Operation
- slow-break
- Contacts Usage
- standard contacts
- Depth
- 85 mm
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
- Embedding Depth
- 58 mm
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm
- Height
- 30 mm
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Marking
- II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
- Mechanical Durability
- 5000000 cycles
- Net Weight
- 0.114 kg
- Operator Position Information
- 3 positions +/- 45°
- Positive Opening
- without
- Shape Of Signaling Unit Head
- round
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 415 V
- Width
- 46.2 mm
Environment
- Ambient Air Temperature For Operation
- -20-75 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Product Certifications
- INERIS 04ATEX9004U
- Protective Treatment
- TH
- Standards
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- chromium plated metal
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB4
- Dust Zone
- zone 21 - 22
- Fixing Collar Material
- zamak
- Gas Zone
- zone 1 - 2
- Mounting Diameter
- 22 mm
- Operator Profile
- black standard handle
- Product Or Component Type
- complete selector switch
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Type Of Operator
- stay put
