Schneider Electric XARSK8D18H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

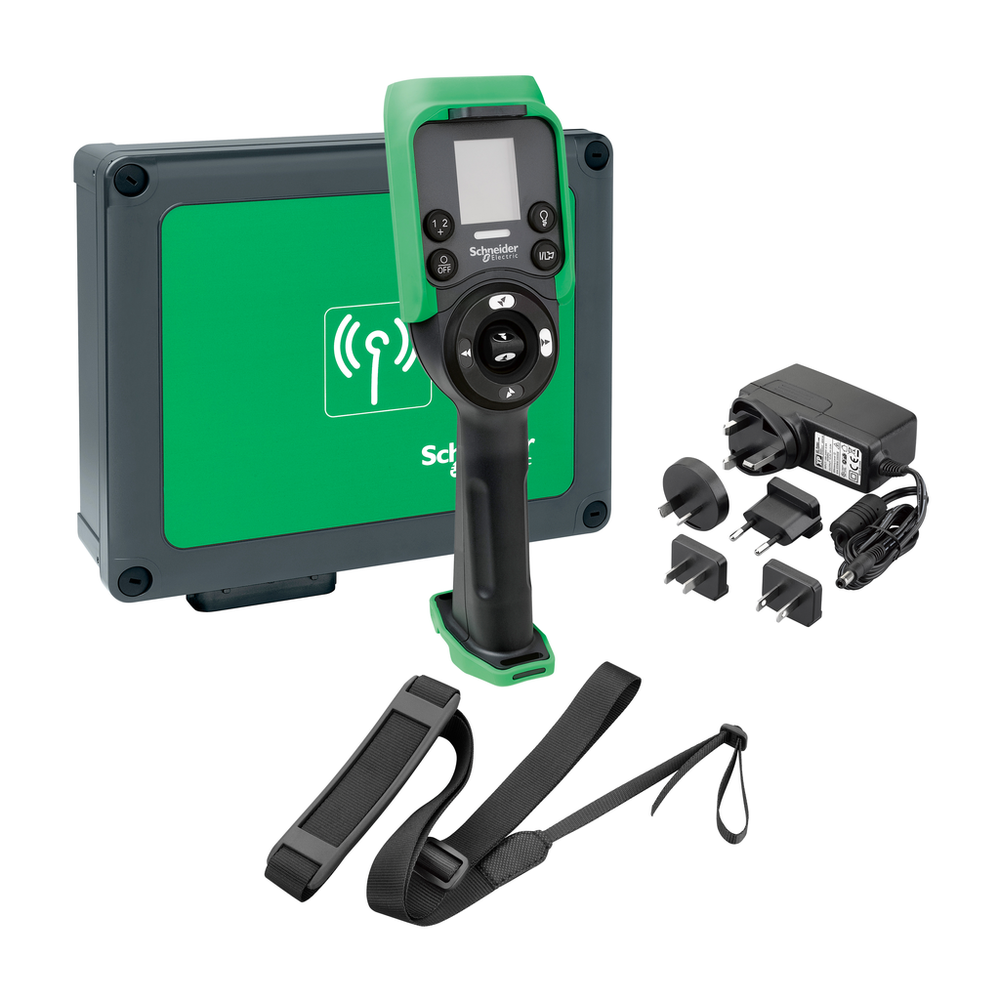

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART8D + ZARB18H), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.Harmony eXLhoist, standard, XARS8D18H system with charger, shoulder belt, cable USB/RJ45 and config software
Schneider Electric XARSK8D18H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- cable gland
- Communication Network Type
- wireless bluetooth low energy
- Connector Type
- industrial socket
- Kit Composition
- base station || cable || shoulder belt || configuration software || remote control
- Operating Distance
- 100 m in free air
- Transmission Frequency
- 2.4 GHz
Environment
- Electromagnetic Compatibility
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
- Product Certifications
- CE || UL || CSA || C-tick || JIS || KC || EAC
- Radio Agreement
- ARIB || RSS || FCC || ANATEL || SRRC || ICASA
- Relative Humidity
- 0-95 % -20-45 °C storage
- Standards
- EN/IEC 60204-1 safety || EN 14439 hoisting applications || EN 14492 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || EN/ISO 13849-1 safety || ARIB STD-T81 radio || EN/IEC 62061 safety || EN/IEC 61508 safety || EN/ISO 13850 safety || EN/IEC 60204-32 hoisting applications || EN 13557 hoisting applications || EN 12077-2 hoisting applications || EN 15011 hoisting applications
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403029EN
- Environmental Disclosure
- ENVPEP1403029EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Station Application
- stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)EN/ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/IEC 62061 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || motion function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1
- Control Station Type
- wireless
- Device Short Name
- XARS
- Number Of Channels
- 50
- Product Or Component Type
- control station
- Product Specific Application
- material handling || hoisting applications
- Range Of Product
- Harmony eXLhoist
