Schneider Electric XAPG39203
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

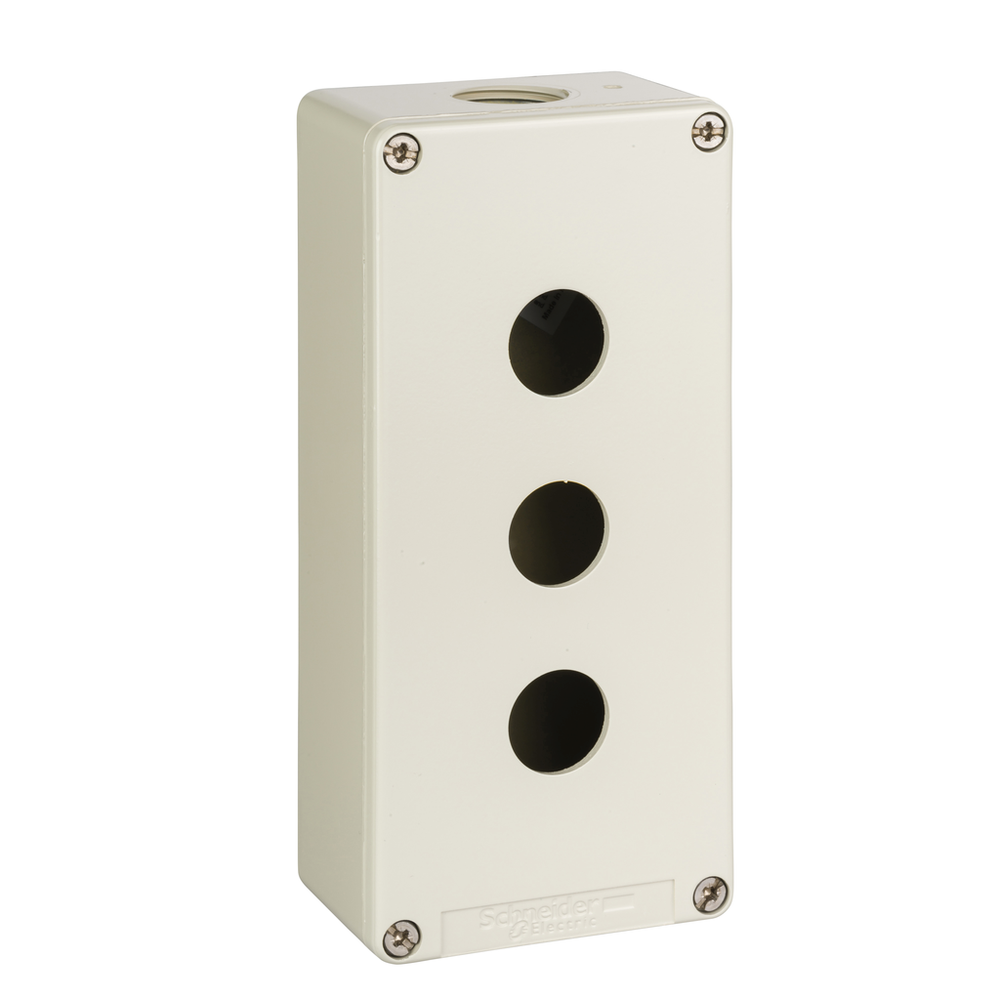

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPG is a die-cast empty control station. It has 3 cut-outs, 3 vertical openings, diameter 22mm for 3 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a zinc alloy grey (RAL 7032) enclosure. Its dimensions are 175mm height, 80mm wide, 51.5mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.Die cast empty control station, Harmony XAP, zinc alloy, grey, 3 cut outs, 22mm, 175x80x51.5mm
Schneider Electric XAPG39203 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- cable gland || 1 x cable gland
- Cad Overall Depth
- 51.5 mm
- Cad Overall Height
- 175 mm
- Cad Overall Width
- 80 mm
- Compatibility Code
- XAPG
- Cut-Out Dimensions
- Ø 22 mm
- Net Weight
- 0.870 kg
- Number Of Horizontal Rows
- 3
- Number Of Vertical Rows
- 1
- Thread Type
- 3/4 NPT
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536 || class I NF C 20-030
- Ik Degree Of Protection
- IK07 IEC 62262
- Protective Treatment
- TH
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2111017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Colour Of Base Of Enclosure
- grey RAL 7032)
- Colour Of Cover
- grey RAL 7032)
- Control Station Type
- metal
- Device Short Name
- XAPG
- Ip Degree Of Protection
- IP65 IEC 60529
- Material
- die cast zinc
- Number Of Cut-Out
- 3 cut-outs
- Product Destination
- for Ø 22 mm control and signalling units
- Product Or Component Type
- die-cast empty control station
- Range Of Product
- Harmony XAP
- Resistance To Chemical Agents
- special treatment can be obtained on request
- Sale Per Indivisible Quantity
- 1
