Schneider Electric XALK178W3B140E
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

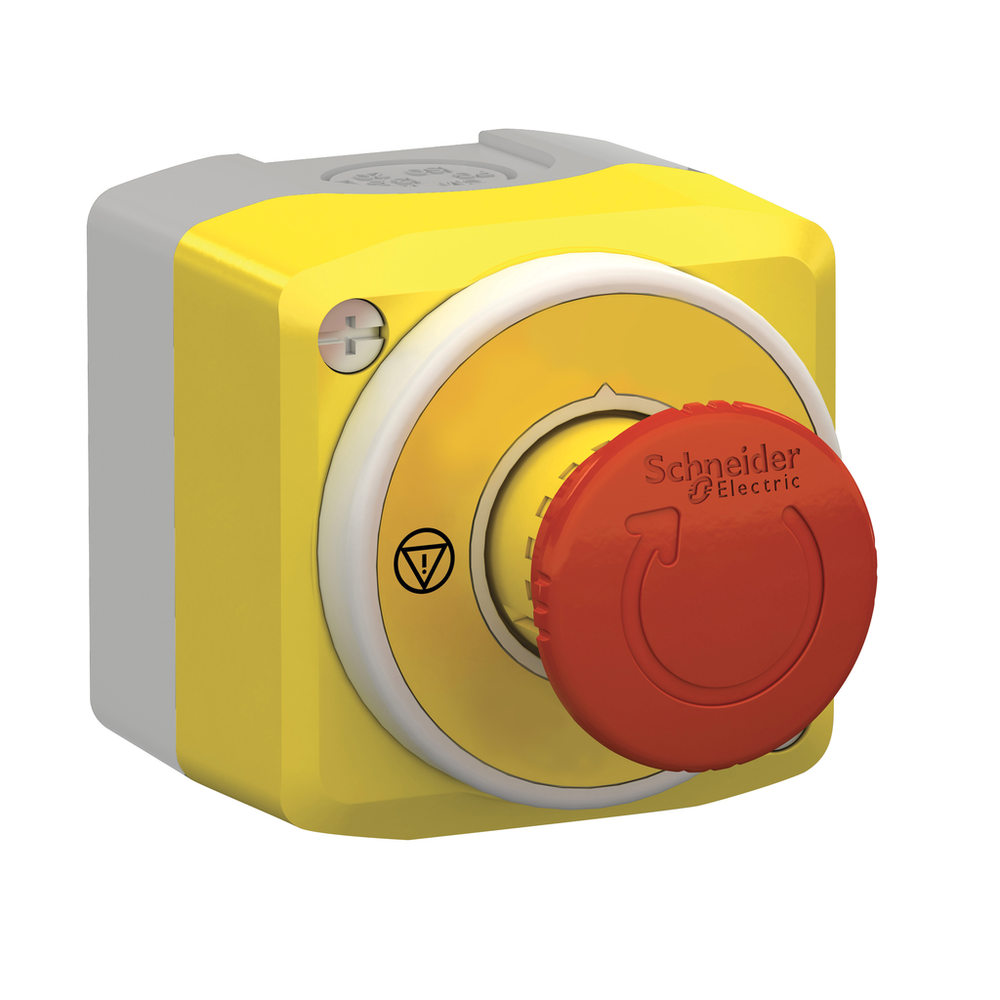

This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.Control station, Harmony XALD, plastic, yellow lid, 1 emergency stop 40mm, turn to release, illuminated ring white red fixed, 1NO 1NC, 24V AC DC
Schneider Electric XALK178W3B140E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Electrical Insulation Class
- class II IEC 61140
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.180 kg
- Operating Force
- 44 N
- Operating Travel
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK05 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Product Certifications
- UL Listed || CSA
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C 4520
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1806010EN
- Environmental Disclosure
- ENVPEP1806010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Colour Of Cover
- yellow RAL 1021)
- Contact Operation
- slow-break
- Control Station Application
- emergency switching off function || emergency stop function
- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC
- Device Short Name
- XALK
- Material
- polycarbonate
- Operator Profile
- 1 mushroom head push-button
- Operators Description
- red unmarked 1 NO + 1 NC
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALK
- Reset
- turn to release
