Schneider Electric XALK178G
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

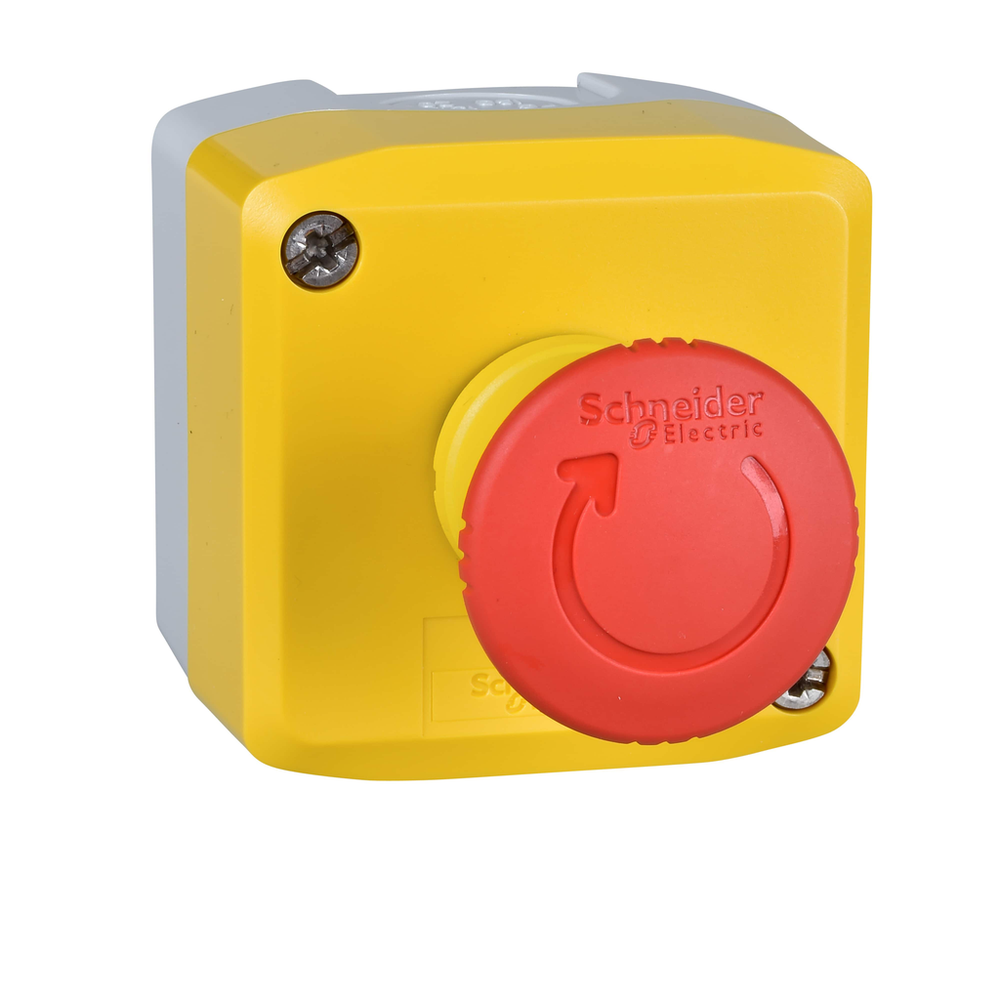

This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.Control station, Harmony XALK, XALD, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 1NO+2NC
Schneider Electric XALK178G is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.194 kg
- Operating Force
- 44 N NC + NO changing electrical state
- Operating Travel
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-1 || JIS C 4520 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60364-5-53 || ISO 13850 || IEC 60204-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1806010EN
- Environmental Disclosure
- ENVPEP1806010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Colour Of Cover
- yellow RAL 1021)
- Contact Operation
- slow-break
- Control Station Application
- emergency switching off function || emergency stop function
- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 1 NO + 2 NC unmarked
- Device Short Name
- XALK
- Material
- polycarbonate
- Operator Profile
- 1 mushroom head push-button
- Operators Description
- red unmarked 1 NO + 2 NC
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALK
- Reset
- turn to release
