Schneider Electric XALK1786H7
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

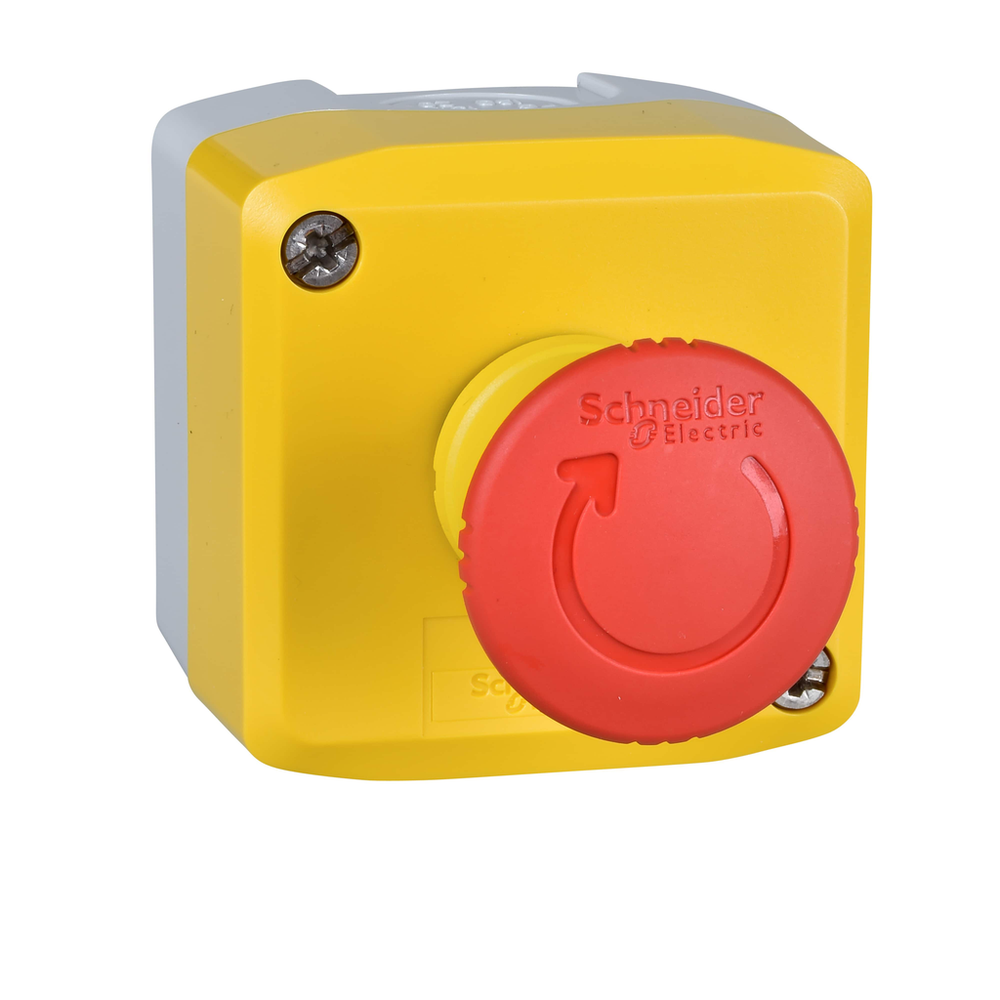

This product is part of the harmony XALD, XALK range , an offer of plastic control stations. This plastic control station has a yellow lid and has a mushroom head pushbutton. It operates with a turn to release mechanism. It offers emergency stop and emergency switching off functions. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. The Harmony XALD, XALK range offers innovative features for simple and efficient use.Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom 40mm, turn to release, 1NC with monitoring, unmarked, UL/CSA certified
Schneider Electric XALK1786H7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Entry
- 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13.5 cable gland and ISO M20
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.34 mm² without cable end EN/IEC 60947-1
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- monitoring contact
- Electrical Durability
- 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 3.4 mA EN/IEC 60947-5-4
- [Ie] Rated Operational Current
- 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 0.11 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 6 A EN/IEC 60947-5-1
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.147 kg
- Operating Force
- 47 N
- Operating Travel
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Shape Of Screw Head
- cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG EN/IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m EN/IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 V 3)EN/IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 60068-2-75
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- CSA || BV || UL Listed || LROS (Lloyds register of shipping) || DNV || CE || CCC || CB Scheme || UKCA || EAC
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || IEC 60947-5-4 || IEC 60364-5-53 || EN/ISO 13850 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-1 || JIS C8201-5-1 || GB/T 14048.5 || BS EN 60947-5-1 || GOST IEC 60947-5-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Colour Of Cover
- yellow RAL 1021)
- Contact Operation
- slow-break
- Control Station Application
- emergency switching off function || emergency stop function
- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 1 NC unmarked
- Device Presentation
- complete product
- Device Short Name
- XALK
- Material
- polycarbonate
- Operator Profile
- 1 mushroom head push-button
- Operators Description
- red unmarked 1 NC
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALK
- Reset
- turn to release
