Schneider Electric XALD03H7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

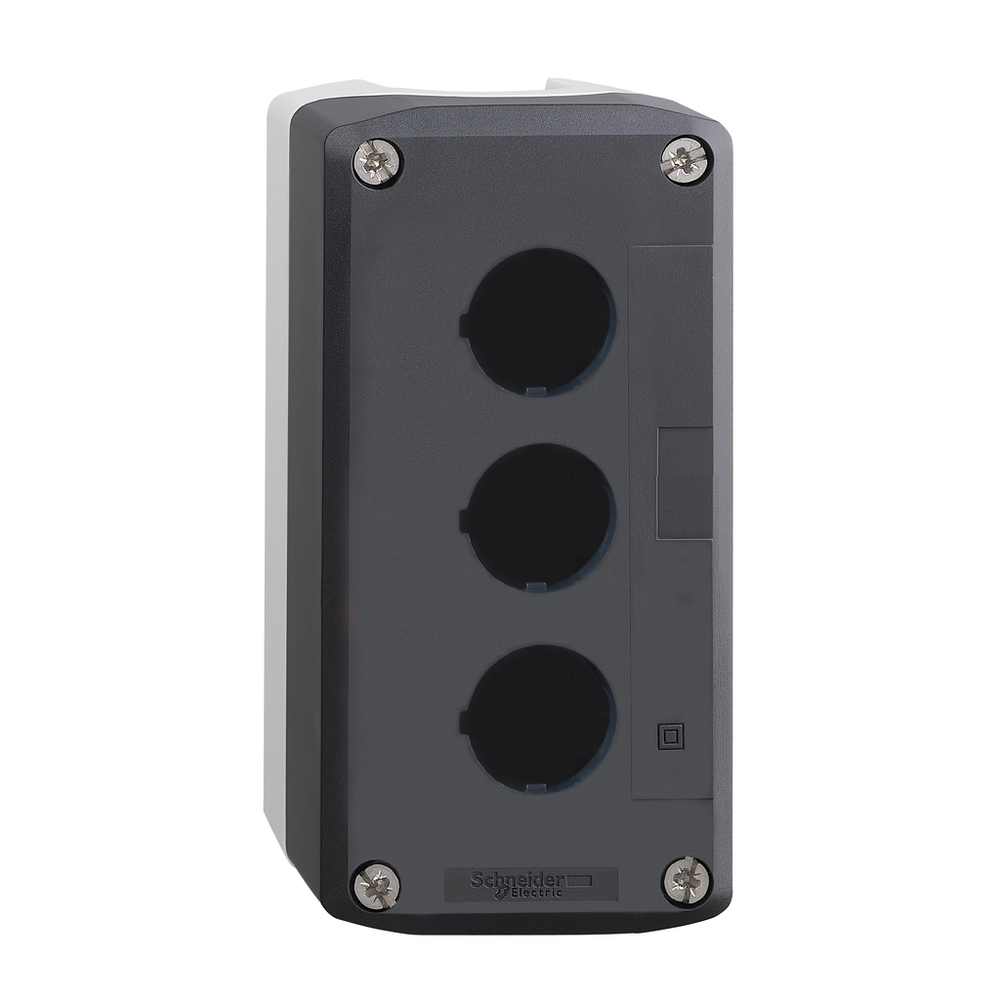

This Harmony XALD empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 3 cut out, UL CSA certified
Schneider Electric XALD03H7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Assembly Style
- for customer assembly
- Electrical Composition Code
- PF2 || MR1 || SF1 || MF2 || SF2 || SR2 || SR1 || PR1 || PF1 || MF1
- Group Of Product
- UL-CSA grey
- Main Group
- 3 cut-outs
- Mounting Of Block
- rear mounting || front mounting
- Net Weight
- 0.238 kg
- Number Of Horizontal Rows
- 1
- Number Of Vertical Rows
- 3
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 62262
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL || CSA
- Protective Treatment
- TH
- Standards
- IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || JIS C8201-1
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1806010EN
- Environmental Disclosure
- ENVPEP1806010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Cable Entry
- 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Colour Of Cover
- dark grey RAL 7016)
- Device Short Name
- XALD
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Material
- polycarbonate
- Number Of Cut-Out
- 3 cut-outs
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Product Or Component Type
- empty control station
- Range Of Product
- Harmony XALD
