Schneider Electric XACB220
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

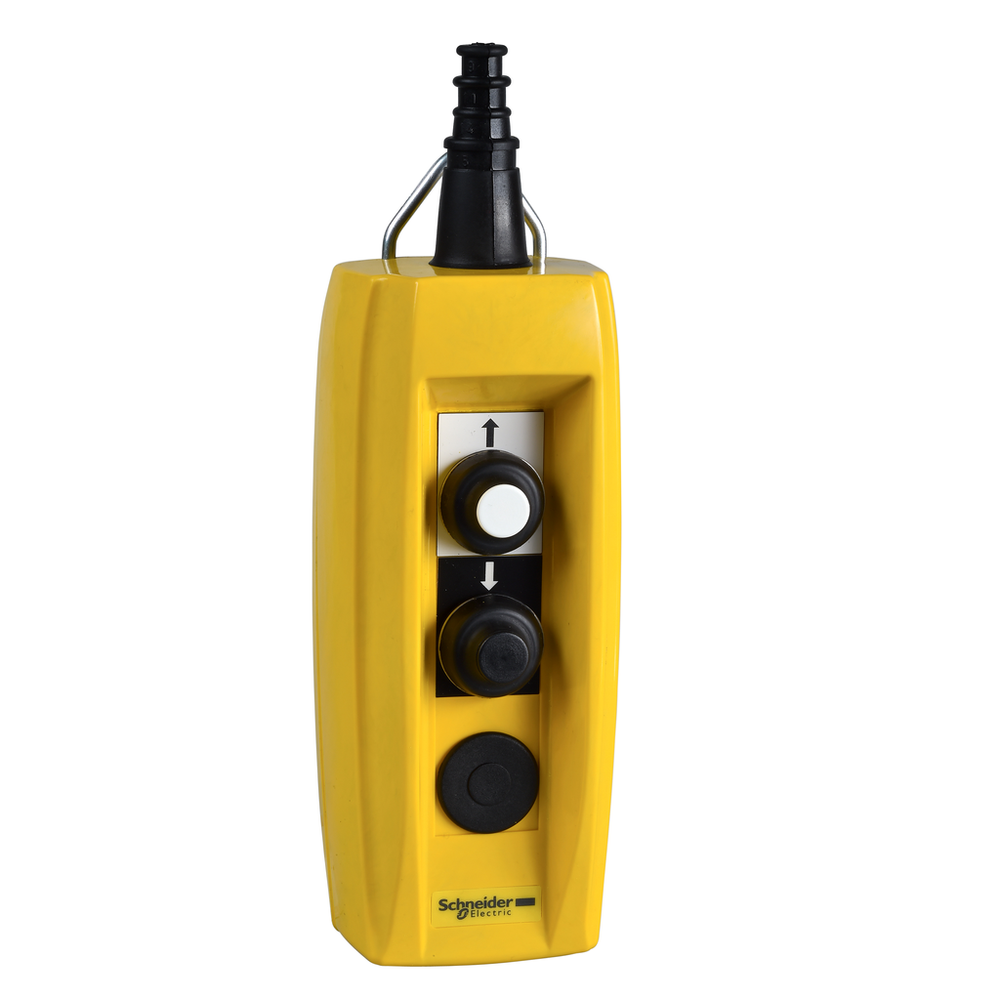

Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons, 20A, cable 7…13mm
Schneider Electric XACB220 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Cable Entry
- rubber sleeve with stepped entry 7-13 mm
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Contact Operation
- snap action
- Control Button Type
- first push-button 3-pole raise, slow || second push-button 3-pole lower, slow
- Control Station Application
- control of single speed hoist motor
- Control Station Colour
- yellow
- Control Station Composition
- 2 push-buttons
- Control Station Type
- double insulated
- Electrical Circuit Type
- power circuit
- Electrical Durability
- 1000000 cycles AC-3, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 1000000 cycles AC-4, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-3, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-4, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
- Enclosure Material
- glass reinforced polyester
- Enclosure Type
- complete ready for use
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- Mechanical Durability
- 1000000 cycles
- Mechanical Interlocking
- with mechanical interlocking
- Net Weight
- 0.355 kg
- Operating Force
- 32-32 N push-button
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- CSA type 4
- Product Compatibility
- XESD2201 for reversing operation
- Protective Treatment
- TH
- Rated Operational Power In W
- 3000 W 240 V || 3000 W 400 V
- Rated Power In Hp
- 3 hp 240 V
- Shock Resistance
- 100 gn IEC 60068-2-27
- Short-Circuit Protection
- 12 A fuse protection cartridge aM
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60204-32 || CSA C22.2 No 14
- Terminal Identifier
- (11-12)NC || (13-14)NO
- Terminals Description Iso N°1
- (13-14)NO || (23-24)NO || (63-64)NO || (53-54)NO || (73-74)NO || (33-34)NO
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 || 300 VCSA
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XACB
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
