Description

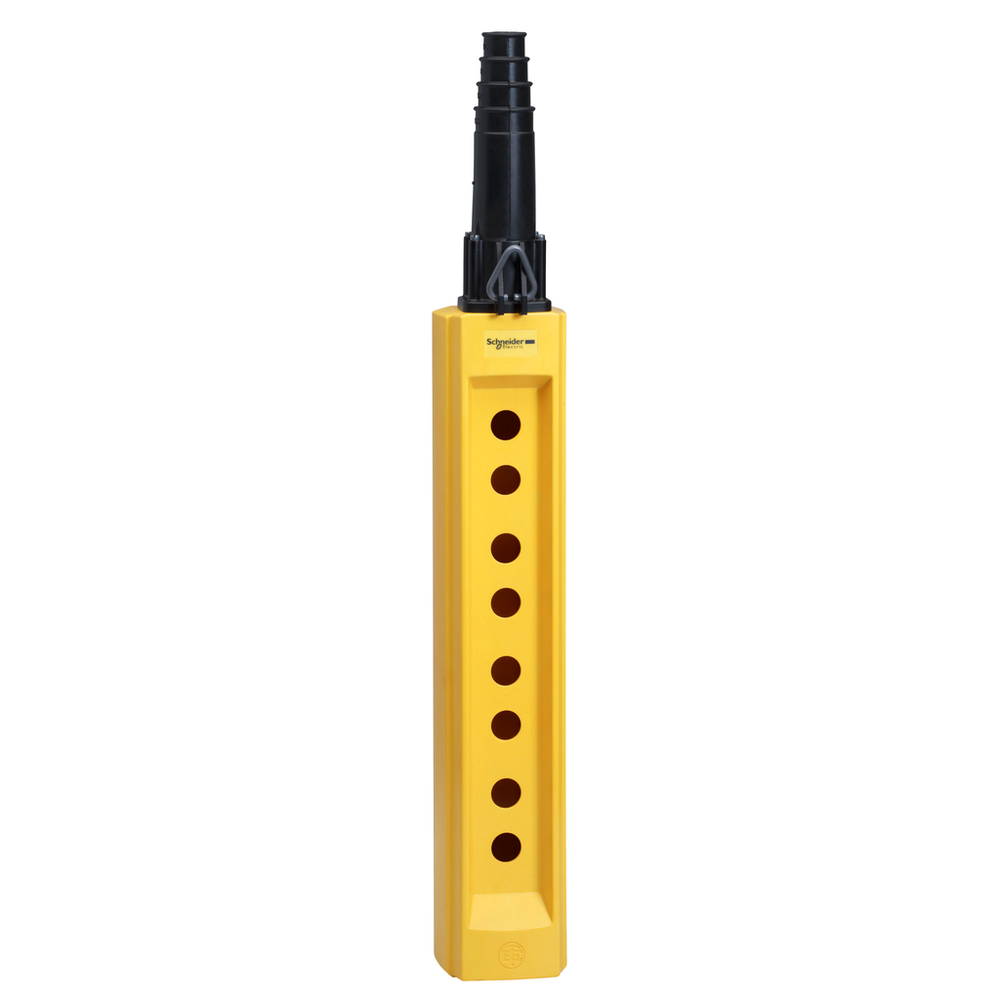

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 8 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs, for cable 10…22mm
Schneider Electric XACB08 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Cable Entry
- rubber sleeve with stepped entry 10-22 mm
- Control Station Colour
- yellow
- Control Station Type
- double insulated
- Electrical Circuit Type
- power circuit || control circuit
- Enclosure Material
- glass reinforced polyester
- Enclosure Type
- empty enclosure
- Guard Rail
- without
- Ik Degree Of Protection
- IK08 IEC 62262
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 1.33 kg
- Number Of Cut-Out
- 8 cut-outs
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- CSA type 4
- Protective Treatment
- TH
- Shock Resistance
- 100 gn IEC 60068-2-27
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14
- Vertical Operator Cut-Out Centre
- 40 mm
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Short Name
- XACB
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
