Schneider Electric XACA271
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

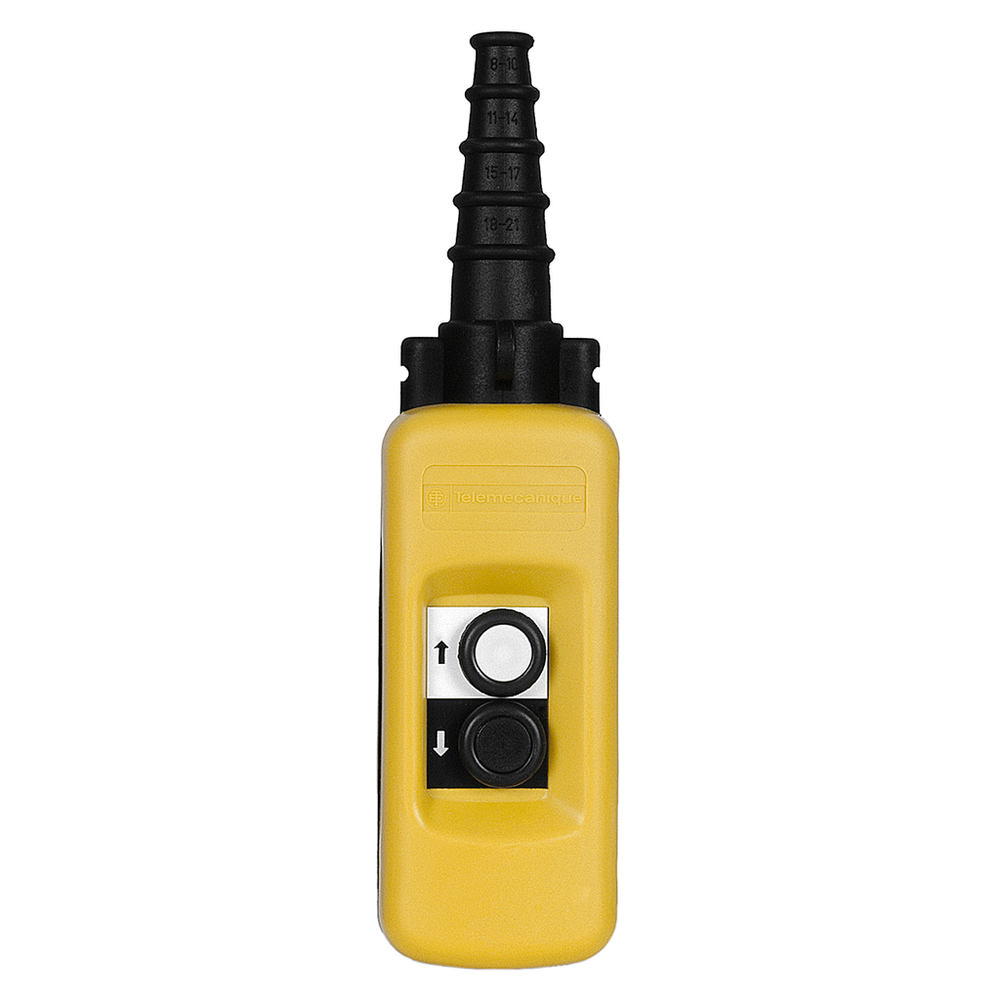

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 1NO
Schneider Electric XACA271 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Cable Entry
- rubber sleeve with stepped entry 8-26 mm
- Connections - Terminals
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Contact Operation
- slow-break
- Control Button Type
- first push-button 1 NO raise, slow || second push-button 1 NO lower, slow
- Control Station Application
- control of single speed hoist motor
- Control Station Colour
- yellow
- Control Station Composition
- 2 push-buttons
- Control Station Type
- double insulated
- Electrical Circuit Type
- control circuit
- Enclosure Material
- polypropylene
- Enclosure Type
- complete ready for use
- Ik Degree Of Protection
- IK08 EN 50102
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Maximum Resistance Across Terminals
- 25 MOhm
- Mechanical Durability
- 1000000 cycles
- Mechanical Interlocking
- with mechanical interlocking
- Net Weight
- 0.475 kg
- Operating Force
- 10-10 N push-button
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- CCC || GOST
- Product Compatibility
- ZB2BE101 for each direction
- Protective Treatment
- TH
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Standards
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-32 || UL 508
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Terminals Description Iso N°1
- (13-14)NO
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP070905EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XACA
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
