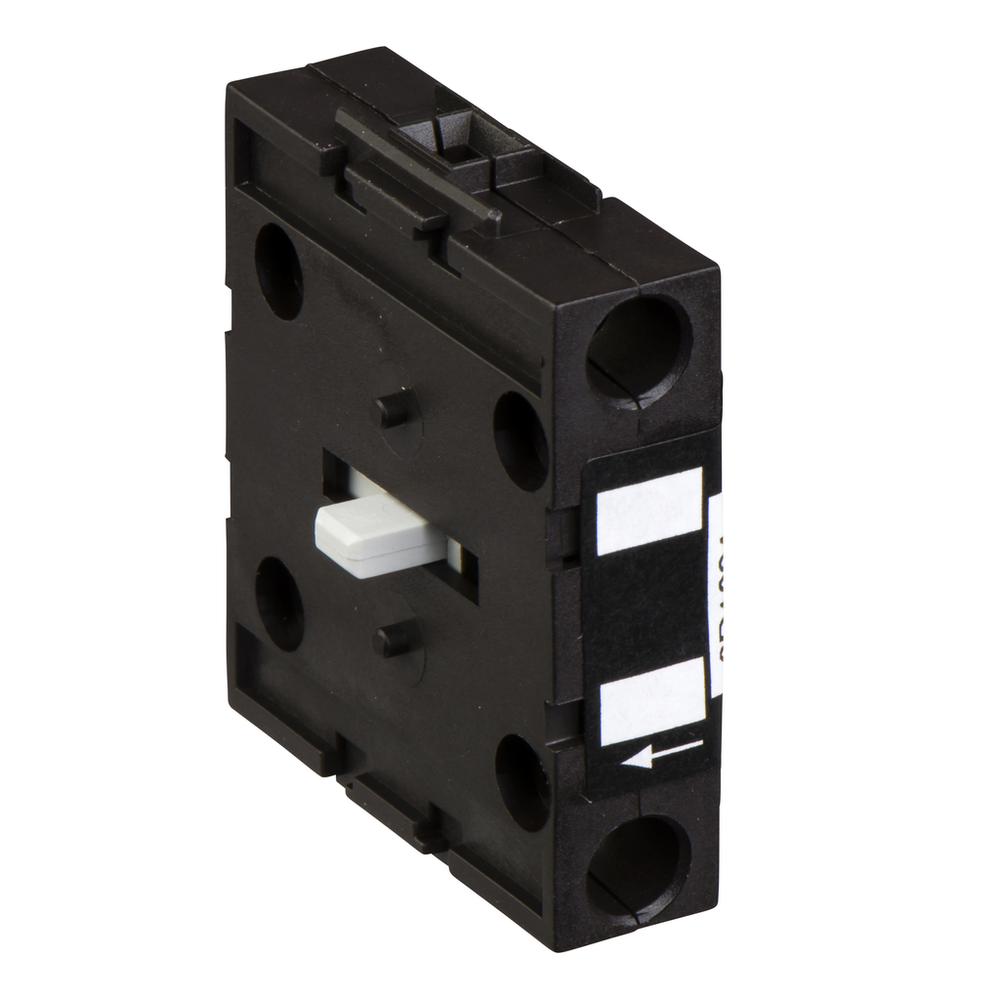

Schneider Electric VZN20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. A maximum of 2 VZN20 main pole modules can be attached to a switch body VN20. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Add-on main pole module for Vario switch disconnector assemblies. Same AC and DC ratings as VN20 switch bodies. Other add-on modules available for VN20 switch bodies , neutral (VZN11), earthing (VZN14), auxiliary contacts (VZN05, VZN06).Additional pole,TeSys Control,20A,for VN12,VN20
Schneider Electric VZN20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
- Depth
- 39 mm
- Electrical Durability
- 30000 cycles DC-1...5 || 50000 cycles AC-21
- Height
- 45.5 mm
- [Ith] Conventional Free Air Thermal Current
- 20 A
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Mechanical Durability
- 50000 cycles
- Net Weight
- 0.02 kg
- Range Compatibility
- TeSys (TeSys VARIO) VCFN switch disconnector
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 0.7-0.7 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Width
- 12 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10...150 Hz 1 gn) IEC 60068-2-6
- Product Certifications
- GL || UL || CSA
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110227EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 1 NO
- Device Short Name
- VZN
- Mounting Location
- left || right
- Network Frequency
- 50/60 Hz
- Network Type
- DC || AC
- Performance Level
- standard
- Poles Description
- 1P
- Product Compatibility
- VN20
- Product Or Component Type
- additional pole
- Range
- TeSys
