Description

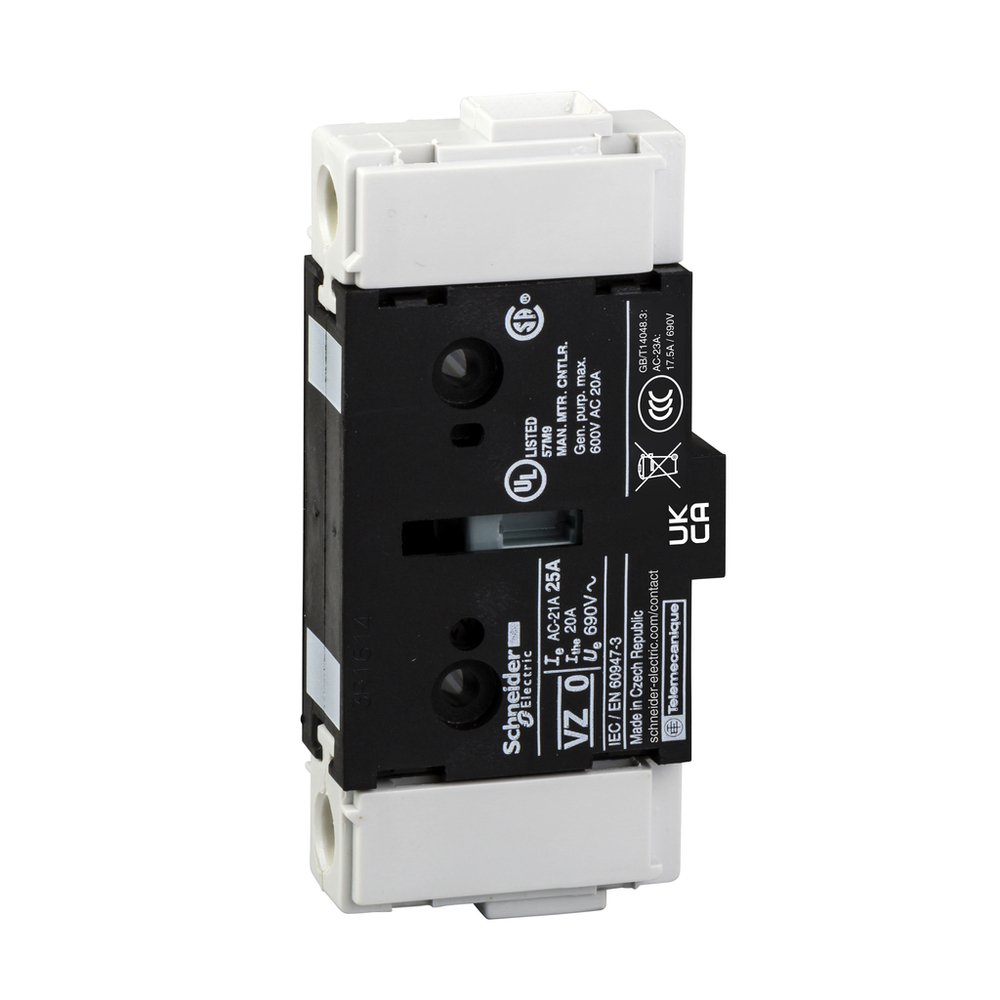

VZ0 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 25A 690V, to be used with V0 switch bodies. A maximum of 3 additional VZ0 modules can be attached to the switch body. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Additional pole,TeSys Control,25A,for V0
Schneider Electric VZ0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- power circuit screw clamp terminals 6-6 mm² flexible - with cable end || power circuit screw clamp terminals 10-10 mm² solid
- Depth
- 35 mm
- Electrical Durability
- 100000 cycles AC-21 || 30000 cycles DC-1...5
- Height
- 74 mm
- [Ith] Conventional Free Air Thermal Current
- 25 A
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- Mechanical Durability
- 100000 cycles
- Mounting Location
- left || right
- Net Weight
- 0.05 kg
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Width
- 16 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Fire Resistance
- 960 °C IEC 60695-2-1
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Product Certifications
- GL || UL || CSA || UKCA
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP110227EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 1 NO
- Device Short Name
- VZ
- Network Frequency
- 50/60 Hz
- Network Type
- AC || DC
- Performance Level
- high performance
- Poles Description
- 1P
- Product Compatibility
- V0
- Product Or Component Type
- additional pole
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys VARIO) switch disconnector
- Suitability For Isolation
- yes
