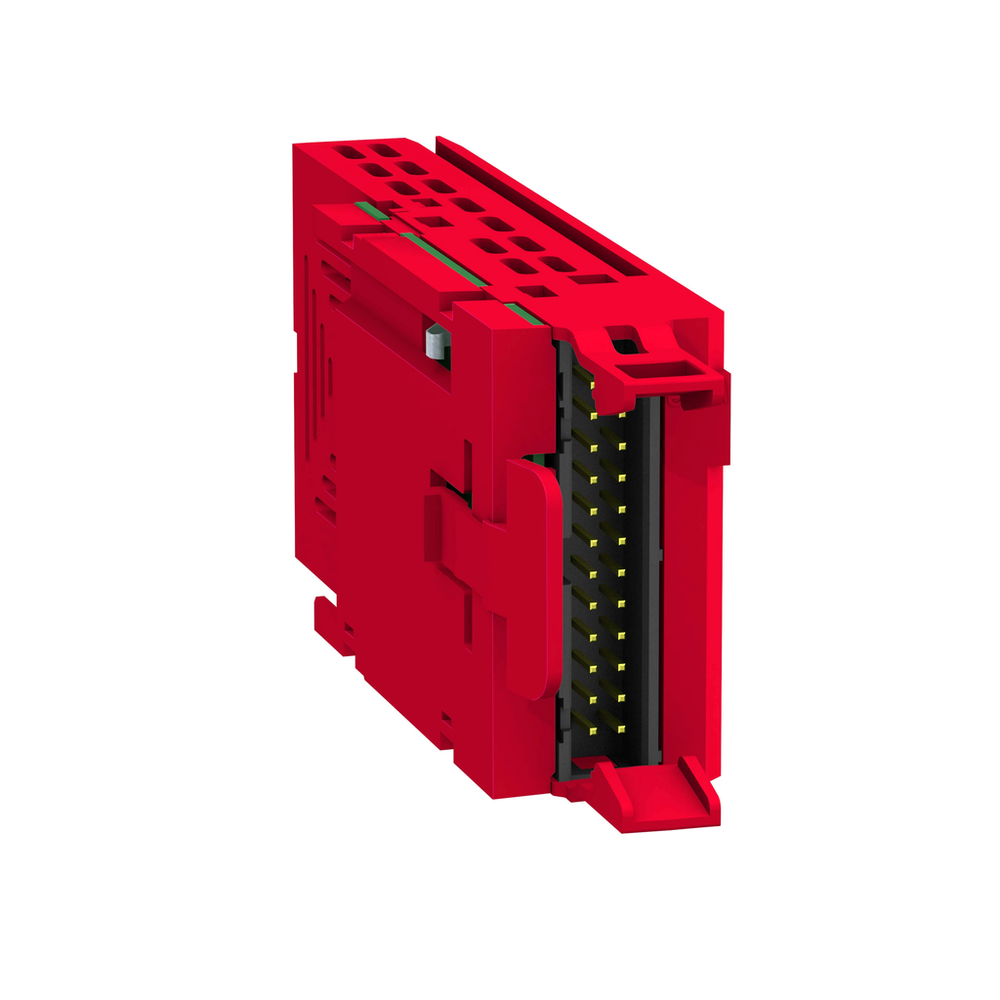

Schneider Electric VW3M3501
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.eSM safety card, Lexium 32, servo drive, 24V DC
Schneider Electric VW3M3501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Discrete Output Number
- 7
- Reverse Polarity Protection
- yes on input
- Safety Function
- SOS (safe operating stop) || SLS (safe limited speed) || SS1 (safe stop 1) || STO (safe torque off) || SS2 (safe stop 2)
- Safety Level
- SIL 3 EN/IEC 61508 || SILCL 3 EN/IEC 62061 || PL = e ISO 13849-1
- Short-Circuit Protection
- yes on output
- Voltage State 0 Guaranteed
- <= 5 V
- Voltage State 1 Guaranteed
- >= 15 V
Contractual warranty
- Warranty
- 18 months
Environment
- Standards
- EN/IEC 61508 || ISO 13849-1 || EN/IEC 62061
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1407005EN
- Environmental Disclosure
- ENVPEP1407005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- communication option
- Accessory / Separate Part Destination
- servo drive
- Accessory / Separate Part Type
- eSM safety card
- Discrete Input Number
- 11
- Product Compatibility
- Lexium 32
- Product Or Component Type
- eSM safety card
- Range Compatibility
- Lexium 32
- [Us] Rated Supply Voltage
- 24 V DC 19-30 V
