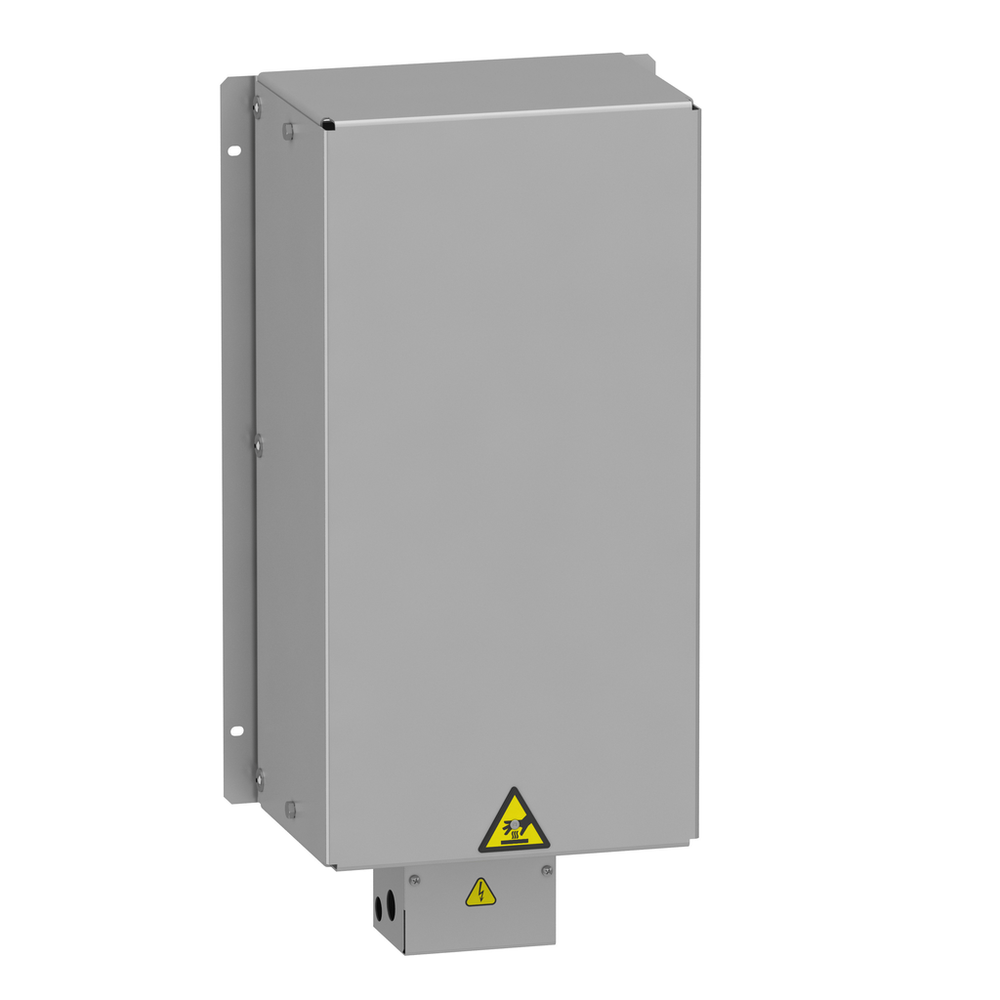

Schneider Electric VW3A7743
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 7kg. This resistor is designed to be mounted on the outside of the enclosure.braking resistor, Altivar, 16Ohms, 1.9kW, IP20
Schneider Electric VW3A7743 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Power Available
- 1.9 kW 50 °C
- Depth
- 180 mm
- Duty Cycle
- severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Electrical Connection
- terminal <= 10 mm² / AWG 8 drive || terminal <= 2.5 mm² / AWG 12 temperature control switch
- Height
- 570 mm
- Net Weight
- 6.4 kg
- Product Compatibility
- variable speed drive ATV930 wall mount 18.5 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 22 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 30 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 18.5 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 22 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 30 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 5.5 kW 200...240 V severe cycle || variable speed drive ATV340 15 kW 380...480 V medium cycle || variable speed drive ATV340 18 kW 380...480 V medium cycle || variable speed drive ATV340 22 kW 380...480 V medium cycle || variable speed drive ATV930 22 kW 500...690 V medium cycle || variable speed drive ATV930 30 kW 500...690 V medium cycle || variable speed drive ATV930 37 kW 500...690 V medium cycle || variable speed drive ATV930 32 hp 600 V medium cycle || variable speed drive ATV930 40 hp 600 V medium cycle || variable speed drive ATV930 50 hp 600 V medium cycle
- Protection Type
- thermal protection via drive or temperature control switch 120 °C
- Width
- 290 mm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Ohmic Value
- 16 Ohm
- Product Or Component Type
- braking resistor
- Range Compatibility
- Altivar Machine ATV340 || Altivar Process ATV900 || Easy Altivar 310
- [Ue] Rated Operational Voltage
- 24 V DC || 250 V AC
