Description

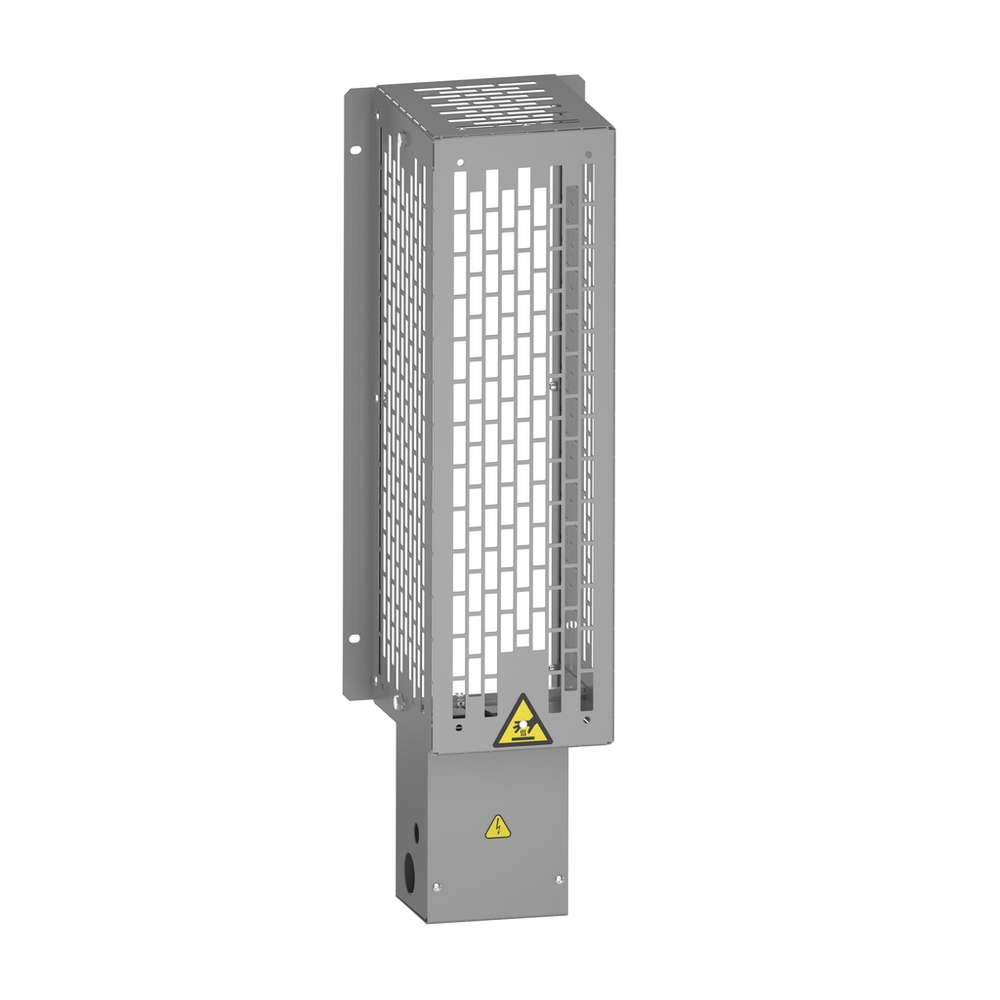

braking resistor, Altivar, 10 ohms, 1.1 kW, IP20
Schneider Electric VW3A7734 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Power Available
- 0.96 kW 50 °C
- Depth
- 180 mm
- Duty Cycle
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Electrical Connection
- terminal <= 35 mm² / AWG 3 drive || terminal <= 4 mm² / AWG 10 temperature control switch
- Height
- 640 mm
- Net Weight
- 4.3 kg
- Product Compatibility
- variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle || variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle || variable speed drive ATV340 30 kW 380...480 V light cycle || variable speed drive ATV340 37 kW 380...480 V light cycle || variable speed drive ATV320 7.5 kW 200...240 V || variable speed drive ATV930 45 kW 500...690 V light cycle || variable speed drive ATV930 55 kW 500...690 V light cycle || variable speed drive ATV930 60 hp 600 V light cycle || variable speed drive ATV930 75 hp 600 V light cycle
- Protection Type
- thermal protection via drive or temperature control switch 120 °C
- Width
- 190 mm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Ohmic Value
- 10 Ohm
- Product Or Component Type
- braking resistor
- Range Compatibility
- Altivar Process ATV900 || Altivar Machine ATV320 || Altivar Machine ATV340
- [Ue] Rated Operational Voltage
- 24 V DC || 250 V AC
