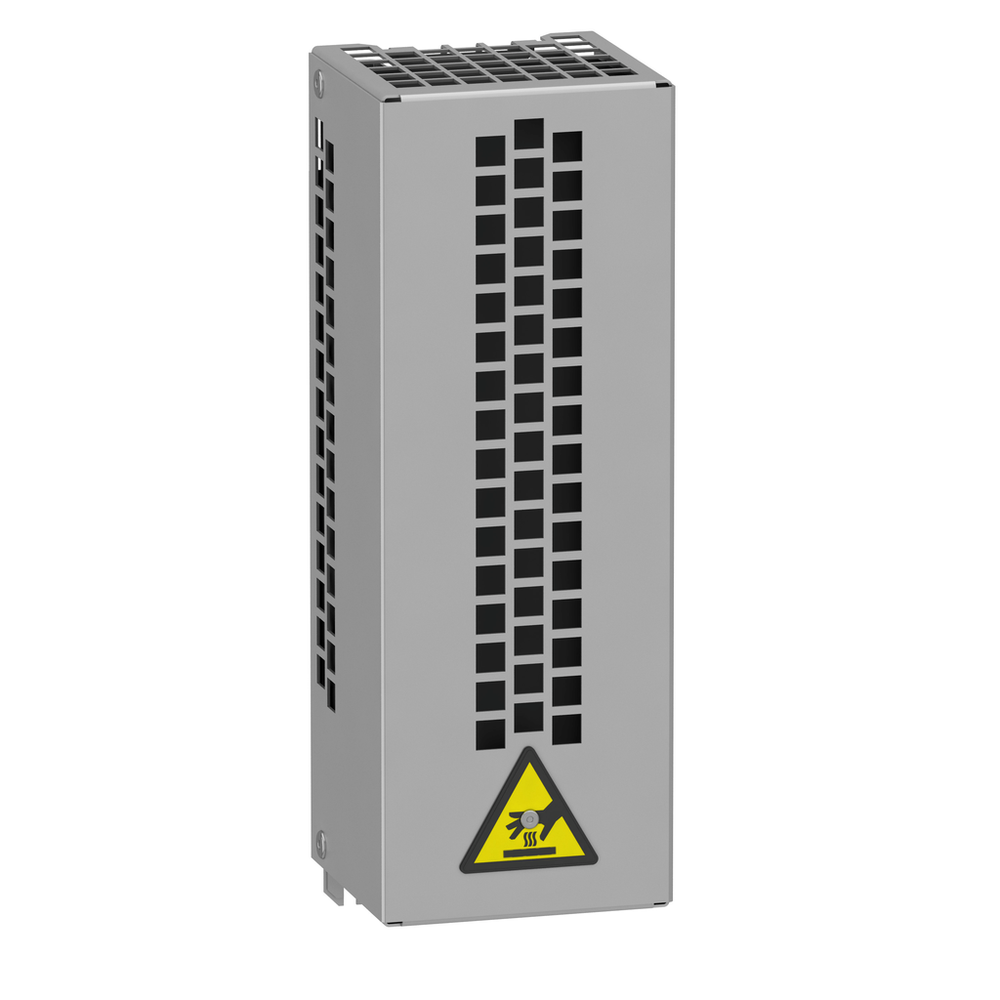

Schneider Electric VW3A7730
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.braking resistor, Altivar, 100Ohms, 0.1kW, IP20
Schneider Electric VW3A7730 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Power Available
- 0.1 kW 50 °C
- Depth
- 100 mm
- Duty Cycle
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Electrical Connection
- terminal <= 10 mm² / AWG 8 drive
- Height
- 295 mm
- Net Weight
- 1.5 kg
- Product Compatibility
- variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle || variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle || variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle || variable speed drive ATV340 0.75 kW 380...480 V light cycle || variable speed drive ATV340 1.5 kW 380...480 V light cycle || variable speed drive ATV340 2.2 kW 380...480 V light cycle || variable speed drive ATV340 3 kW 380...480 V light cycle || variable speed drive ATV340 0.75 kW 380...480 V medium cycle || variable speed drive ATV320 0.18 kW 200...240 V || variable speed drive ATV320 0.37 kW 200...240 V || variable speed drive ATV320 0.37 kW 380...480 V || variable speed drive ATV320 0.55 kW 380...480 V || variable speed drive ATV320 0.75 kW 380...480 V || variable speed drive ATV320 1.1 kW 380...480 V || variable speed drive ATV320 1.5 kW 380...480 V || variable speed drive ATV320 2.2 kW 380...480 V || variable speed drive ATV320 3 kW 380...480 V || variable speed drive ATV310 1.5 kW || variable speed drive ATV310 2.2 kW || variable speed drive ATV310 3 kW || variable speed drive ATV310 4 kW || variable speed drive ATV930 2.2 kW 500...690 V light cycle || variable speed drive ATV930 3 kW 500...690 V light cycle || variable speed drive ATV930 4 kW 500...690 V light cycle || variable speed drive ATV930 5.5 kW 500...690 V light cycle || variable speed drive ATV930 3 hp 600 V light cycle || variable speed drive ATV930 5 hp 600 V light cycle || variable speed drive ATV930 7.5 hp 600 V light cycle || variable speed drive ATV930 2.2 kW 500...690 V medium cycle || variable speed drive ATV930 3 kW 500...690 V medium cycle || variable speed drive ATV930 3 hp 600 V medium cycle || variable speed drive ATV320 0.75 kW 525...600 V || variable speed drive ATV320 1.5 kW 525...600 V || variable speed drive ATV320 2.2 kW 525...600 V || variable speed drive ATV320 4 kW 525...600 V || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW
- Protection Type
- thermal protection via drive
- Width
- 105 mm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Ohmic Value
- 100 Ohm
- Product Or Component Type
- braking resistor
- Range Compatibility
- Altivar Process ATV900 || Altivar Machine ATV340 || Altivar Machine ATV320 || Easy Altivar 310 || Easy Altivar 310L
