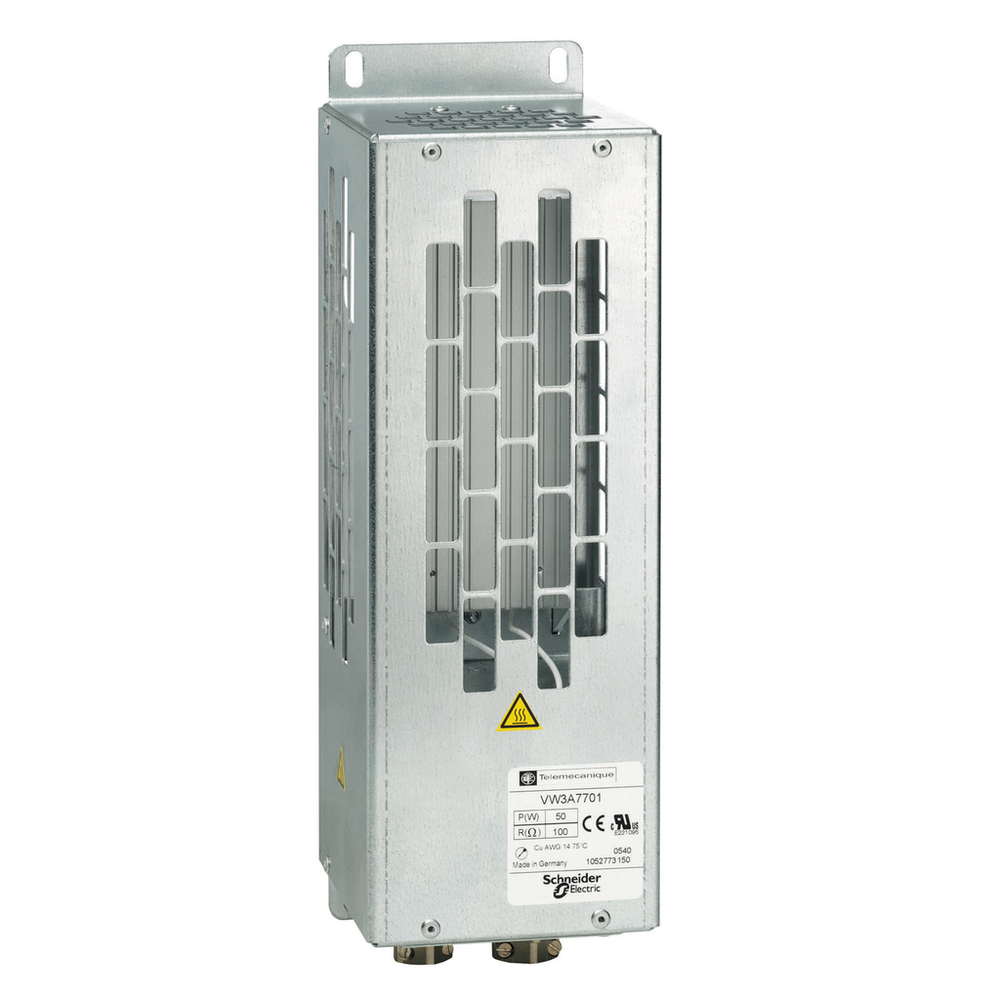

Schneider Electric VW3A7701
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 1.9kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.braking resistor, Altivar, IP20, 100Ohm, 50W
Schneider Electric VW3A7701 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Power Available
- 50 W 50 °C || 58 W 40 °C
- Contact Resistance
- 60 µOhm
- Depth
- 95 mm
- Electrical Connection
- terminal <= 1.5 mm² / AWG 16 temperature control switch || terminal <= 4 mm² / AWG 28 drive
- Height
- 293 mm
- Net Weight
- 1.9 kg
- Protection Type
- thermal protection via drive or temperature control switch 120 °C
- Width
- 95 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Ohmic Value
- 100 Ohm
- Product Compatibility
- ATV31C018M2 || ATV31C037M2 || ATV31C037N4 || ATV31C055M2 || ATV31C055N4 || ATV31C075M2 || ATV31C075N4 || ATV31CU11M2 || ATV31CU11N4 || ATV31CU15M2 || ATV31CU15N4 || ATV31CU22N4 || variable speed drive ATV310 1.5 kW || variable speed drive ATV310 2.2 kW || ATV31CU30N4 || ATV31CU40N4 || variable speed drive ATV310 3 kW || variable speed drive ATV310 4 kW || ATV12H018F1 || ATV12H018M2 || ATV12H018M3 || ATV12H037F1 || ATV12H037M2 || ATV12H037M3 || ATV12H055M2 || ATV12H075F1 || ATV12H075M2 || ATV12H075M3 || ATV12HU15M2 || ATV12HU15M3 || ATV12P037F1 || ATV12P037M2 || ATV12P037M3 || ATV12P055M2 || ATV12P075M2 || ATV12P075M3 || ATV12PU15M3 || ATV312H018M2 || ATV312H018M3 || ATV312H037M2 || ATV312H037M3 || ATV312H037N4 || ATV312H055M2 || ATV312H055M3 || ATV312H055N4 || ATV312H075M2 || ATV312H075M3 || ATV312H075N4 || ATV312HU11M2 || ATV312HU11M3 || ATV312HU11N4 || ATV312HU15M2 || ATV312HU15M3 || ATV312HU15N4 || ATV312HU22N4 || ATV312HU30N4 || ATV312HU40N4 || ATV32H018M2 || ATV32H037M2 || ATV32H037N4 || ATV32H055M2 || ATV32H055N4 || ATV32H075M2 || ATV32H075N4 || ATV32HU11M2 || ATV32HU11N4 || ATV32HU15M2 || ATV32HU15N4 || ATV32HU22N4 || ATV32HU30N4 || ATV32HU40N4 || ATV61H075M3 || ATV61H075N4 || ATV61HU15N4 || ATV61HU22N4 || ATV61HU30N4 || ATV61HU30Y || ATV61HU40N4 || ATV61HU40Y || ATV61HU55Y || ATV61HU75Y || ATV61W075N4 || ATV61W075N4C || ATV61WU15N4 || ATV61WU15N4C || ATV61WU22N4 || ATV61WU22N4C || ATV61WU30N4 || ATV61WU30N4C || ATV61WU40N4 || ATV61WU40N4C || ATV61WU55N4 || ATV61WU55N4C || ATV71H037M3 || ATV71H075M3 || ATV71H075N4 || ATV71HU15N4 || ATV71HU22N4 || ATV71HU22Y || ATV71HU30N4 || ATV71HU30Y || ATV71HU40N4 || ATV71HU40Y || ATV71HU55Y || ATV71P075N4Z || ATV71PU40N4Z || ATV71W075N4 || ATV71WU40N4 || ATV71PU15N4Z || ATV71PU22N4Z || ATV71WU15N4 || ATV71WU22N4 || ATV71PU30N4Z || ATV71WU30N4
- Range Compatibility
- Altivar 312 || Altivar 61 || Altivar 312 Solar || Altivar 32 || Altivar 31C
- Range Of Product
- Altivar
- [Ue] Rated Operational Voltage
- 24 V DC 0.1 A || 250 V AC 1 A
