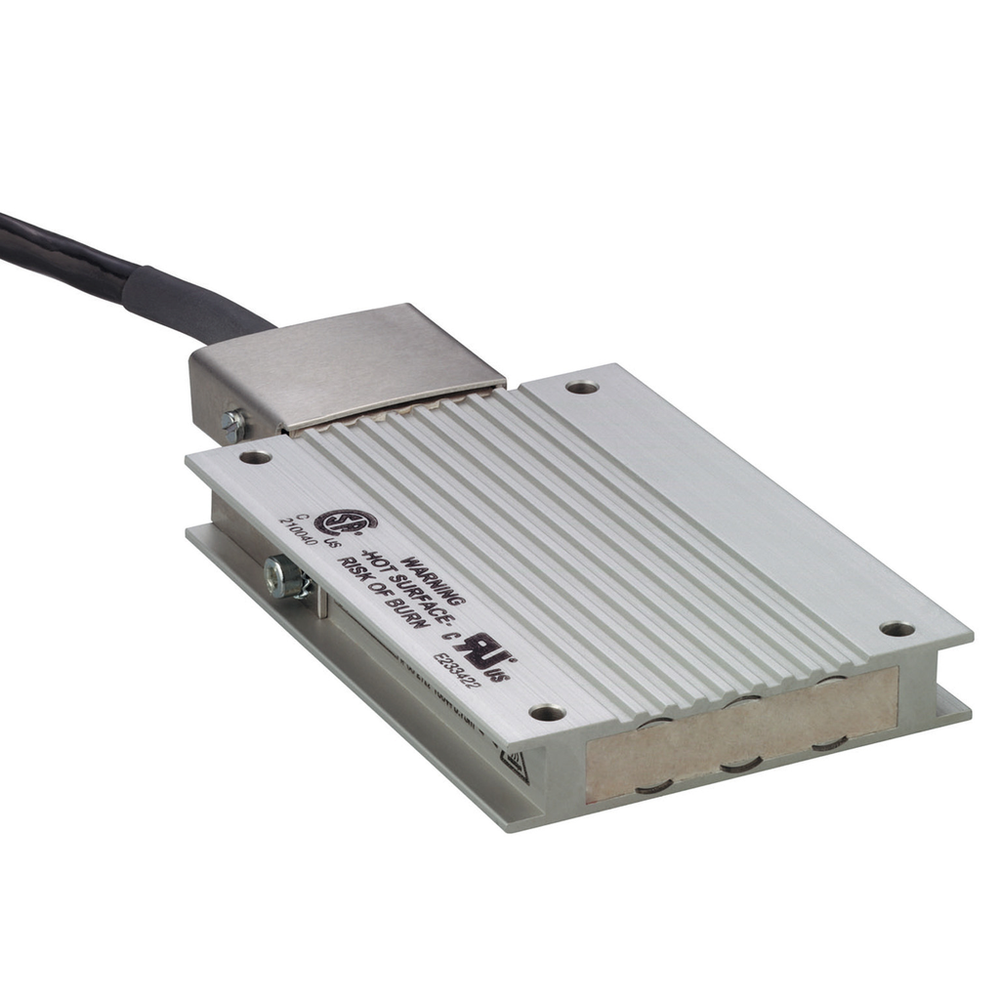

Schneider Electric VW3A7604R30

Complementary

• Average Power Available
  • 100 W 50 °C
• Cable Length
  • 3 m
• Continuous Power
  • 400 W
• Energy Peak
  • 10500 J 480 V || 11400 J 400 V || 18100 J 230 V || 25500 J 115 V
• Net Weight
  • 1.62 kg
• Protection Type
  • thermal protection via the servo drive

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 0-50 °C
• Ambient Air Temperature For Storage
  • -25-85 °C
• Ip Degree Of Protection
  • IP65

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes

Specifications

• Ohmic Value
  • 27 Ohm
• Product Compatibility
  • ATV32HU55N4 || ATV32HU75N4 || variable speed drive ATV320 5.5 kW, 380...500 V, three phase || variable speed drive ATV320 7.5 kW, 380...500 V, three phase || variable speed drive ATV320 5.5 kW, 525...600 V, three phase || variable speed drive ATV320 7.5 kW, 525...600 V, three phase || motion servo drive LXM16D 0.75 kW, 200...230 V, single phase || motion servo drive LXM16D 1 kW, 200...230 V, single phase || motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
• Product Or Component Type
  • braking resistor
• Range Compatibility
  • Lexium 05 || Lexium 28 || Lexium 32i || Lexium 52 || Altivar 32 || Lexium 15 || Altivar Machine ATV320 || Lexium 32 || Easy Lexium 16
• Range Of Product
  • Lexium || Altivar
