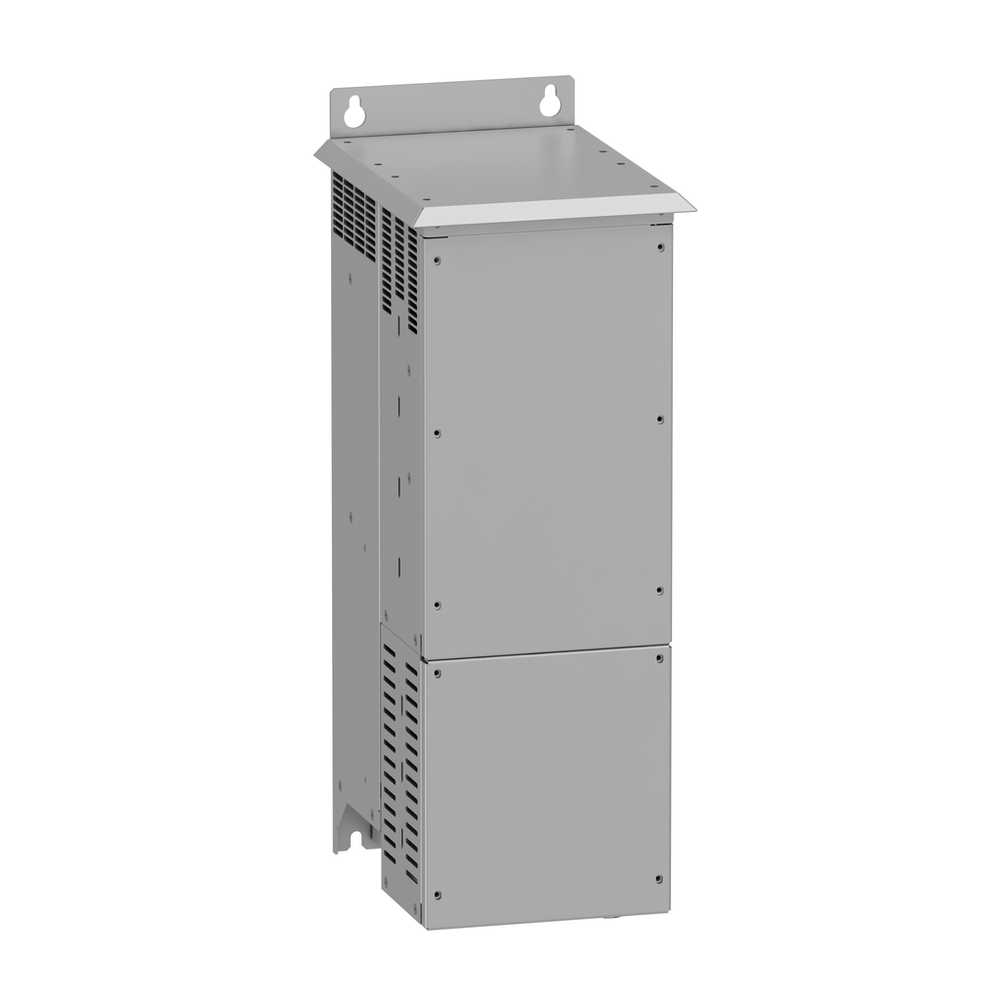

Schneider Electric VW3A7106

Complementary

• Activation Threshold
  • 395 V DC +/- 1 %
• Depth
  • 303 mm
• Height
  • 658 mm
• Load Factor
  • 0.05 150 kW at constant power and at engage threshold || 0.15 120 kW at constant power and at engage threshold || 0.5 95 kW at constant power and at engage threshold || 1 75 kW at constant power and at engage threshold
• Maximum Braking Power
  • 80 kW
• Maximum Dc Bus Voltage
  • 450 V
• Mechanical Robustness
  • vibrations class 3M4 IEC 60721-3-3
• Net Weight
  • 15.5 kg
• Operating Position
  • vertical +/- 10 degree
• Permanent Braking Power
  • 60 kW at constant power and at engage threshold)
• Volume Of Cooling Air
  • 166 m3/h
• Width
  • 216 mm

Environment

• Ambient Air Temperature For Operation
  • -10-50 °C
• Ambient Air Temperature For Storage
  • -40-70 °C
• Ip Degree Of Protection
  • IP20 || IP21 on top)
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Toxic Heavy Metal Free
  • Yes

Specifications

• Minimum Resistor Value To Associate
  • 1.4 Ohm
• Product Compatibility
  • variable speed drive ATV930 without braking chopper 55 kW 200...240 V || variable speed drive ATV930 without braking chopper 75 kW 200...240 V
• Protection Type
  • integrated thermal protection thermal probe
• Range Compatibility
  • Altivar Process ATV900
• Thermal Losses
  • 400 W
