Description

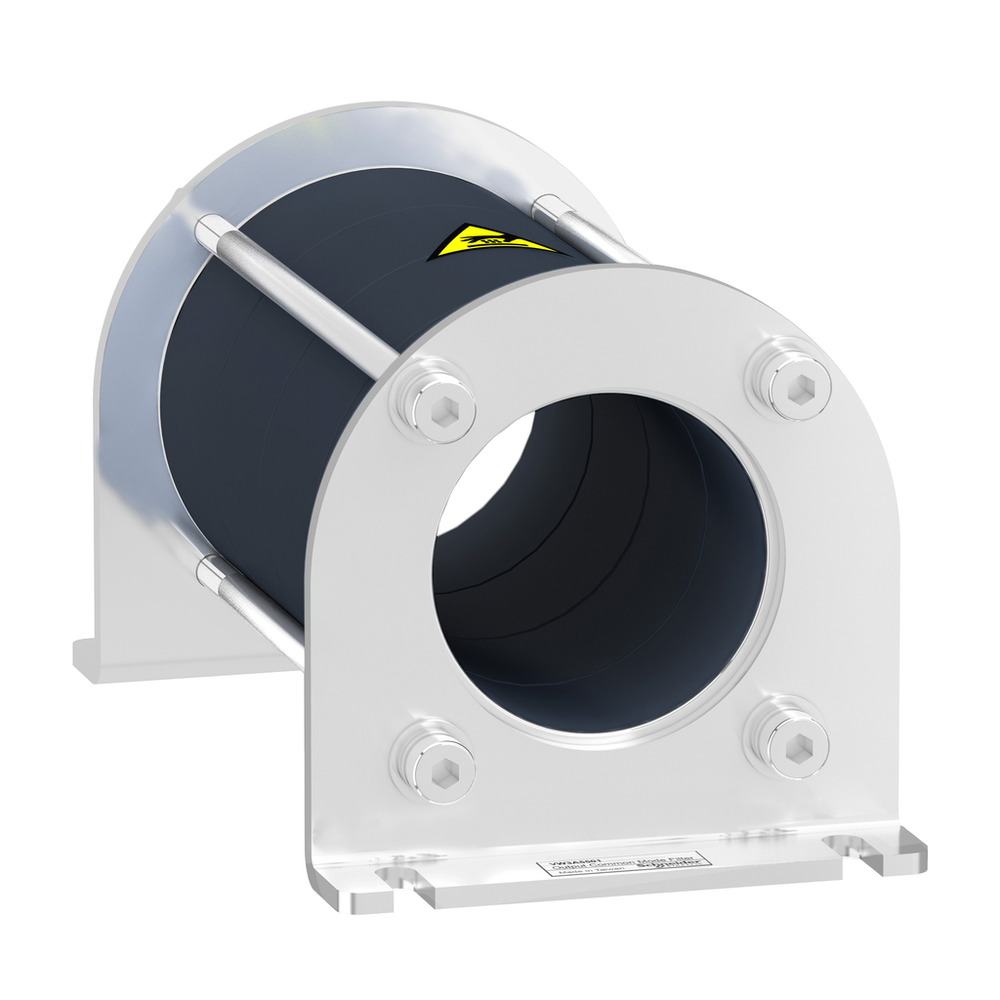

common mode filter for bearing current reduction - 146.4 µH
Schneider Electric VW3A5501 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 66 mm
- Diameter
- 37.1 mm 3-phase cable inside || 37.1 mm PE cable outside
- Electrical Insulation Class
- class I
- Height
- 119.2 mm
- Maximum Motor Cable Length
- 150 m(unshielded cable)0.75-11 kW 380...480 V 1 || 300 m(shielded cable)5.5-5.5 kW 200...240 V 2 || 500 m(unshielded cable)0.75-4 kW 200...240 V 2 || 500 m(unshielded cable)5.5-5.5 kW 200...240 V 1 VW3A5502 || 500 m(shielded cable)0.75-4 kW 200...240 V 2 || 1000 m(unshielded cable)0.75-4 kW 200...240 V 1 VW3A5502 || 150 m(shielded cable)0.75-4 kW 380...480 V 1 || 300 m(shielded cable)5.5-11 kW 380...480 V 2 || 500 m(unshielded cable)0.75-4 kW 380...480 V 2 || 500 m(unshielded cable)5.5-11 kW 380...480 V 1 VW3A5502 || 500 m(shielded cable)0.75-4 kW 380...480 V 2 || 1000 m(unshielded cable)0.75-5.5 kW 380...480 V 1 VW3A5502 || 150 m(unshielded cable)0.75-5.5 kW 200...240 V 1 || 150 m(shielded cable)0.75-4 kW 200...240 V 1
- Maximum Output Frequency
- 100 Hz
- Mechanical Robustness
- shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
- Net Weight
- 0.44 kg
- Saturation Current
- 1.1 A
- Switching Frequency
- <= 10 kHz
- Width
- 66 mm
Environment
- Ambient Air Temperature For Operation
- -15-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 5-95 % without condensation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Product Compatibility
- variable speed drive ATV630 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV650 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV930 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV950 wall mount, 0.75-11 kW, 380...480 V || variable speed drive ATV630 wall mount, 0.75-5.5 kW, 200...240 V || variable speed drive ATV930 wall mount, 0.75-5.5 kW, 200...240 V
- Product Or Component Type
- common mode output filter
- Range Compatibility
- Altivar Process ATV900 || Altivar Process ATV600
- Value Of Inductance
- 146.4 µH
