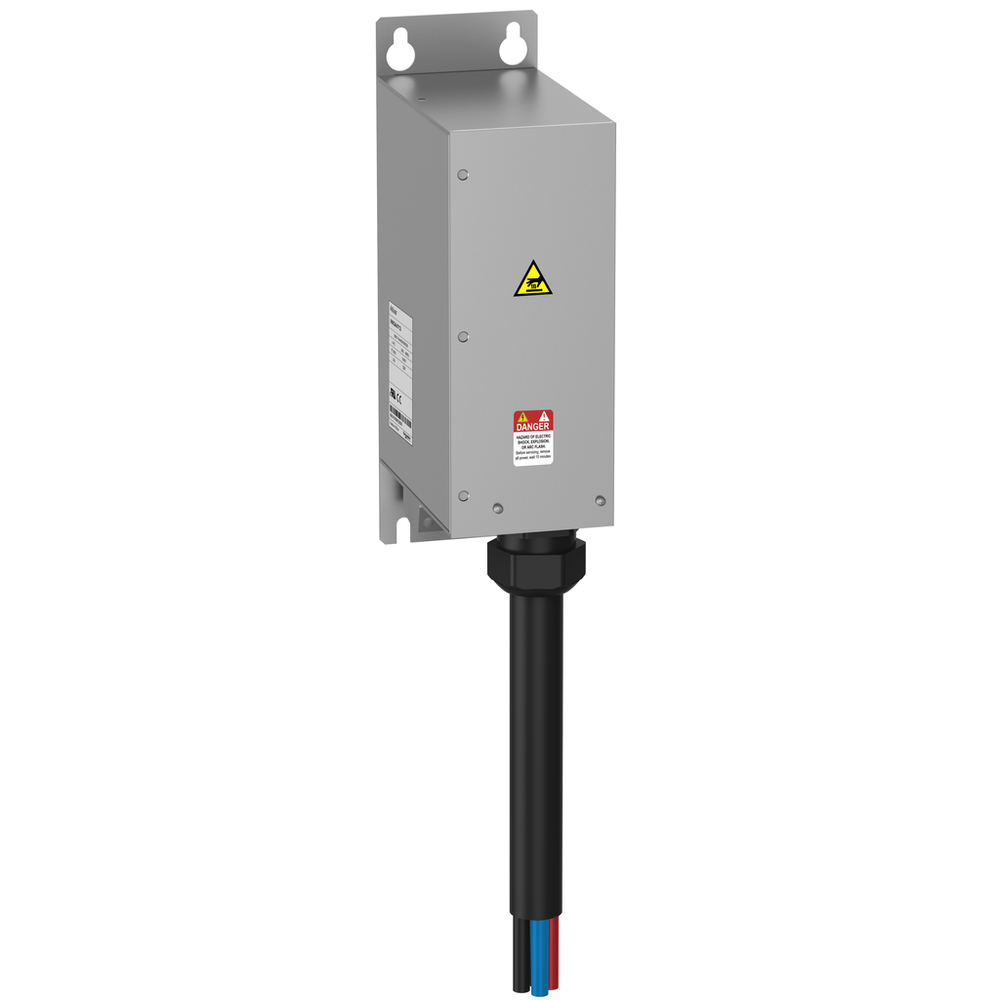

Schneider Electric VW3A4712
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
additionnal EMC filter - 70 A - IP20
Schneider Electric VW3A4712 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 180 mm
- Earth Leakage Current
- 3.98 mA 400 V 50 Hz TN
- Electrical Connection
- terminal 35 mm² AWG 3
- Height
- 330 mm
- Maximum Motor Cable Length
- 100 m shielded motor cable 4 kHz EN/IEC 61800-3 category C3, 380...480 V || 50 m shielded motor cable 4 kHz EN/IEC 61800-3 category C2, 380...480 V
- Mechanical Robustness
- shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
- Net Weight
- 6.1 kg
- Network Rated Voltage
- 380-480 V
- Tolerance
- 10 %
- Width
- 100 mm
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without current derating) || 50-60 °C with current derating 1.5 % per °C)
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP20mounting side by side
- Operating Altitude
- 0...3280.84 ft (0...1000 m) without current derating || 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m
- Relative Humidity
- 5-95 % without condensation IEC 61800-5-1
- Standards
- EN/IEC 61800-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 70 A
- Mounting Location
- at variable speed drive side
- Phase
- three phase
- Product Compatibility
- variable speed drive ATV34018.5 kW, 380...480 V || variable speed drive ATV34022 kW, 380...480 V
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar Machine ATV340
- Range Of Product
- Altivar
- Thermal Losses
- 10 W
