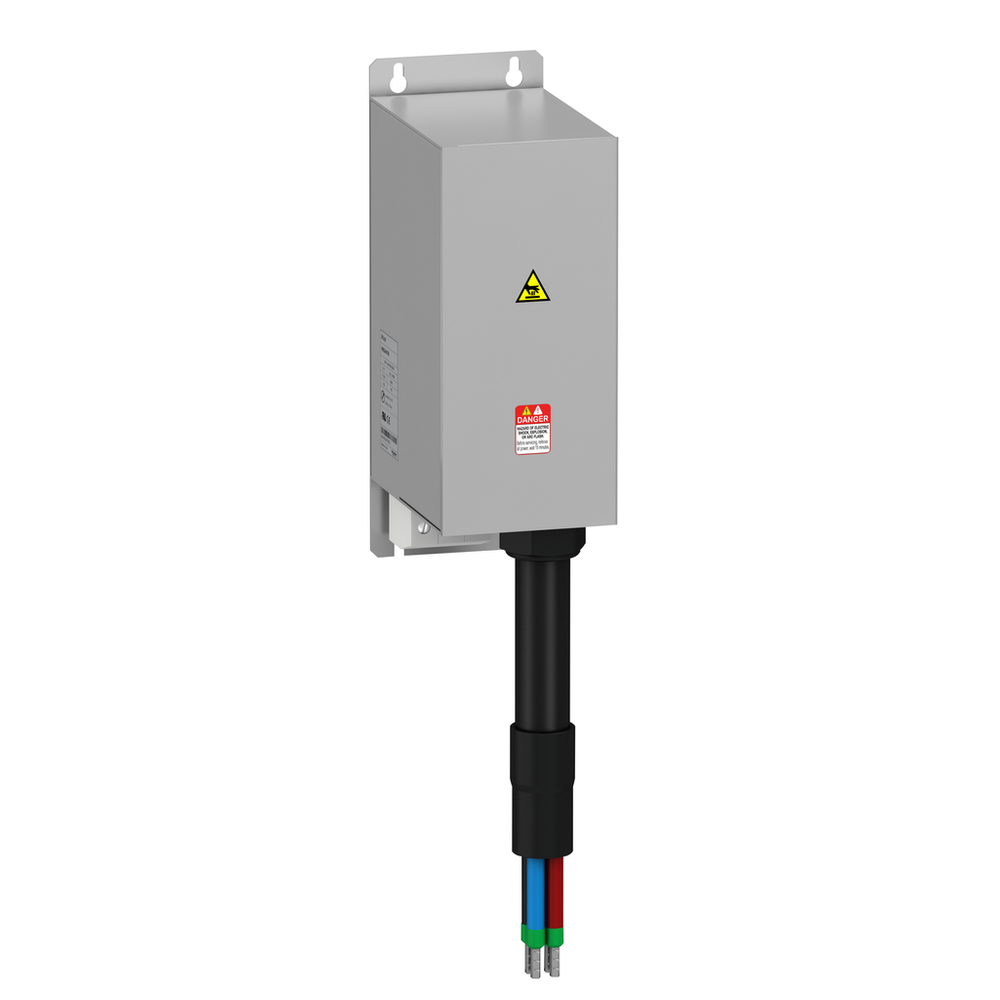

Schneider Electric VW3A4706
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EMC radio interference input filter - for variable speed drive - 100 A
Schneider Electric VW3A4706 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 180 mm
- Earth Leakage Current
- 13.9 mA 400 V 50 Hz TN || 13.9 mA 400 V 50 Hz TT
- Electrical Connection
- terminal 50 mm² AWG 1/0
- Height
- 340 mm
- Maximum Motor Cable Length
- 150 m shielded motor cable 4 kHz EN/IEC 61800-3 category C2, 380...480 V || 300 m shielded motor cable 4 kHz EN/IEC 61800-3 category C3, 380...480 V || 150 m shielded motor cable 4 kHz EN/IEC 61800-3 category C2, 200...240 V || 300 m shielded motor cable 4 kHz EN/IEC 61800-3 category C3, 200...240 V || 50 m shielded motor cable 4 kHz EN/IEC 61800-3 category C1, 200...240 V || 50 m shielded motor cable 4 kHz EN/IEC 61800-3 category C1, 380...480 V
- Mechanical Robustness
- shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
- Net Weight
- 6.5 kg
- Network Rated Voltage
- 380-480 V || 200-240 V
- Tolerance
- 10 %
- Width
- 120 mm
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without current derating) || 50-60 °C with current derating 1.5 % per °C)
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP20mounting side by side || IP21with kit VW3A47906
- Operating Altitude
- 0...3280.84 ft (0...1000 m) without current derating || 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m
- Relative Humidity
- 5-95 % without condensation IEC 61800-5-1
- Standards
- EN/IEC 61800-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Line Rated Current
- 100 A
- Mounting Location
- at variable speed drive side
- Phase
- three phase
- Product Compatibility
- variable speed drive ATV630 wall mount, 37 kW, 380...480 V || variable speed drive ATV630 wall mount, 45 kW, 380...480 V || variable speed drive ATV630 wall mount, 18.5 kW, 200...240 V || variable speed drive ATV630 wall mount, 22 kW, 200...240 V || variable speed drive ATV650 wall mount, 37 kW, 380...480 V || variable speed drive ATV650 wall mount, 45 kW, 380...480 V || variable speed drive ATV930 wall mount, 37 kW, 380...480 V || variable speed drive ATV930 wall mount, 45 kW, 380...480 V || variable speed drive ATV930 wall mount, 18.5 kW, 200...240 V || variable speed drive ATV930 wall mount, 22 kW, 200...240 V || variable speed drive ATV950 wall mount, 37 kW, 380...480 V || variable speed drive ATV950 wall mount, 45 kW, 380...480 V || variable speed drive ATV34030 kW, 380...480 V || variable speed drive ATV34037 kW, 380...480 V
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar Machine ATV340 || Altivar Process ATV600 || Altivar Process ATV900
- Range Of Product
- Altivar
- Thermal Losses
- 12.4 W
