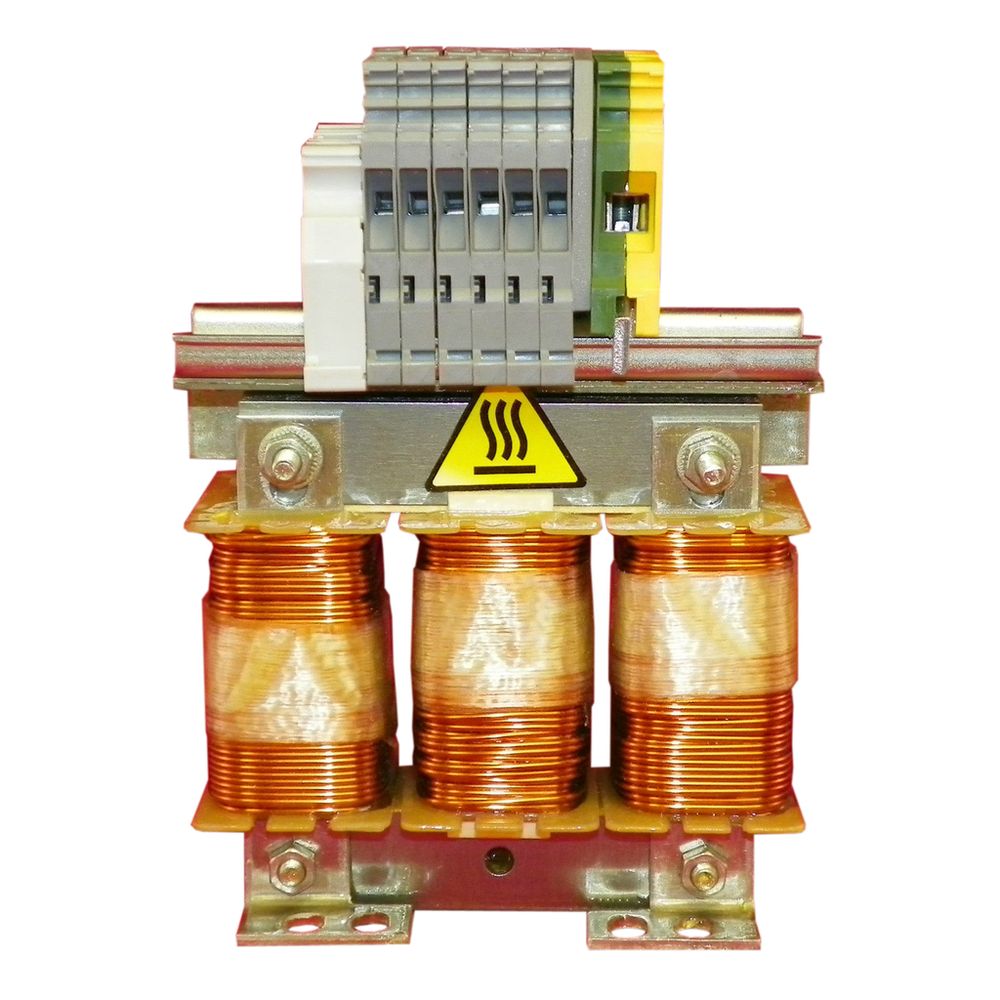

Schneider Electric VW3A4552
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 10A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 4mH. It weighs 3kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.line/motor choke - 4 mH - 10 A - 3 phases - 65 W - for variable speed drive
Schneider Electric VW3A4552 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 90 mm
- Electrical Insulation Class
- class F
- Height
- 155 mm
- Leakage Distance
- 11.5 mm IEC 60664
- Max Current
- 1.65 x nominal current 60 s)
- Maximum Voltage Drop At Rated Load
- 5 %
- Minimum Clearance Distance
- 5.5 mm IEC 60664
- Net Weight
- 3 kg
- Supply Frequency
- 50...60 Hz
- Width
- 130 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
- Ambient Air Temperature For Storage
- -25-70 °C
- Environmental Characteristic
- 3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
- Ip Degree Of Protection
- choke IP00 || terminals IP20
- Operating Altitude
- <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
- Pollution Degree
- 2 EN 50178
- Relative Humidity
- 0-95 %
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- EN 50178 || IEC 60076 (with HD398) || VDE 0160 level 1
- Vibration Resistance
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Device Application
- reduction of current harmonics || reduction of overvoltages at motor terminals
- Electrical Connection
- terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
- Line Rated Current
- 10 A
- Phase
- three phase
- Product Compatibility
- variable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive || ATV31CU22N4 - line choke - 1 per drive || ATV31CU22N4 - motor choke - 1 per drive || ATV31CU30N4 - line choke - 1 per drive || ATV31CU30N4 - motor choke - 1 per drive || ATV31CU40N4 - line choke - 1 per drive || ATV31CU40N4 - motor choke - 1 per drive || ATV61HU15M3 - line choke - 1 per drive || ATV61HU22M3 - line choke - 1 per drive || ATV61HU22N4 - line choke - 2 per drive || ATV61HU30N4 - line choke - 1 per drive || ATV61HU40N4 - line choke - 1 per drive || ATV61HU75Y - line choke - 1 per drive || ATV61WU22N4 - line choke - 1 per drive || ATV61WU22N4C - line choke - 1 per drive || ATV61WU30N4 - line choke - 1 per drive || ATV61WU30N4C - line choke - 1 per drive || ATV61WU40N4 - line choke - 1 per drive || ATV61WU40N4C - line choke - 2 per drive || ATV71HD55Y - line choke - 2 per drive || ATV71HD75Y - line choke - 1 per drive || ATV71HU15M3 - line choke - 1 per drive || ATV71HU22M3 - line choke - 1 per drive || ATV71HU22N4 - line choke - 1 per drive || ATV71HU30N4 - line choke - 1 per drive || ATV71HU40N4 - line choke - 1 per drive || ATV71PU22N4Z - line choke - 1 per drive || ATV71PU30N4Z - line choke - 1 per drive || ATV71PU40N4Z - line choke - 2 per drive || ATV71WU22N4 - line choke - 1 per drive || ATV71WU30N4 - line choke - 1 per drive || ATV71WU40N4 - line choke - 1 per drive || LXM05D17M3X - line choke - 1 per drive || LXM05D34N4 - line choke - 1 per drive || LXM05D57N4 - line choke - 1 per drive || ATV12H075F1 - motor choke - 1 per drive || ATV12H075M2 - motor choke - 1 per drive || ATV12H075M3 - motor choke - 1 per drive || ATV12HU15M2 - motor choke - 1 per drive || ATV12HU15M3 - motor choke - 1 per drive || ATV12P075M2 - motor choke - 1 per drive || ATV312HU11M3 - line choke - 1 per drive || ATV312HU15M3 - line choke - 1 per drive || ATV312HU22N4 - line choke - 1 per drive || ATV312HU30N4 - line choke - 1 per drive || ATV312HU40N4 - line choke - 1 per drive || ATV312HU40S6 - line choke - 1 per drive || ATV312HU55S6 - line choke - 1 per drive || ATV61HU40Y - line choke - 1 per drive || ATV61HU55Y - line choke - 1 per drive || ATV71HU40Y - line choke - 1 per drive || ATV71HU55S6X - line choke - 1 per drive || ATV312HU22N4 - motor choke - 1 per drive || ATV312HU30N4 - motor choke - 1 per drive || ATV312HU40N4 - motor choke - 1 per drive || ATV312HU40S6 - motor choke - 1 per drive || ATV312HU55S6 - motor choke - 1 per drive || ATV12P075M3 - motor choke - 1 per drive || ATV12PU15M3 - motor choke - 1 per drive || ATV61HU30S6X - line choke - 1 per drive || ATV61HU40S6X - line choke - 1 per drive || ATV61HU55S6X - line choke - 1 per drive || ATV71HU30S6X - line choke - 1 per drive || ATV71HU40S6X - line choke - 1 per drive || ATV32HU22N4 - motor choke - 1 per drive || ATV32HU30N4 - motor choke - 1 per drive || ATV32HU40N4 - motor choke - 1 per drive || ATV32HU22N4 - line choke - 1 per drive || ATV32HU30N4 - line choke - 1 per drive || ATV32HU40N4 - line choke - 1 per drive || variable speed drive ATV310 1.5 kW - line choke - 1 per drive || variable speed drive ATV310 2.2 kW - line choke - 1 per drive || variable speed drive ATV310 3 kW - line choke - 1 per drive || variable speed drive ATV310 2.2 kW - motor choke - 1 per drive || variable speed drive ATV310 3 kW - motor choke - 1 per drive || variable speed drive ATV310 4 kW - motor choke - 1 per drive || variable speed drive ATV340 2.2 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV340 3 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV340 4 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV320 2.2 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 3 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 4 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.18 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 0.37 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 0.55 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 0.75 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 1.1 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 1.5 kW 200...240 V - single phase - motor choke - 1 per drive || variable speed drive ATV320 0.37 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 0.55 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 0.75 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.1 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.5 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 2.2 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 3 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 4 kW 380...500 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.1 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.5 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.18 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 0.37 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 0.55 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 0.75 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.1 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.5 kW 200...240 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 4 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 525...600 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 1.5 kW 525...600 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 2.2 kW 525...600 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 4 kW 525...600 V - three phase - motor choke - 1 per drive || variable speed drive ATV320 5.5 kW 525...600 V - three phase - motor choke - 1 per drive || variable speed drive ATV630 5.5 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 7.5 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 5.5 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 7.5 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 600 V - three phase - line choke - 5 hp - 1 per drive || variable speed drive ATV630 600 V - three phase - line choke - 7.5 hp - 1 per drive || variable speed drive ATV930 600 V - three phase - line choke - 5 hp - 1 per drive || variable speed drive ATV930 600 V - three phase - line choke - 7.5 hp - 1 per drive || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW
- Product Or Component Type
- line/motor choke
- Range Compatibility
- Altivar 61 || Altivar 312 Solar || Altivar 32 || Altivar Process ATV600 || Altivar 31C || Lexium 05 || Altivar 71 || Altivar Machine ATV340 || Altivar Machine ATV320 || Easy Altivar 310 || Altivar 12 || Lexium 62 || Altivar Process ATV900 || Altivar 312 || Easy Altivar 310L
- Range Of Product
- Altivar
- Thermal Losses
- 65 W
- Value Of Inductance
- 4 mH
