Description

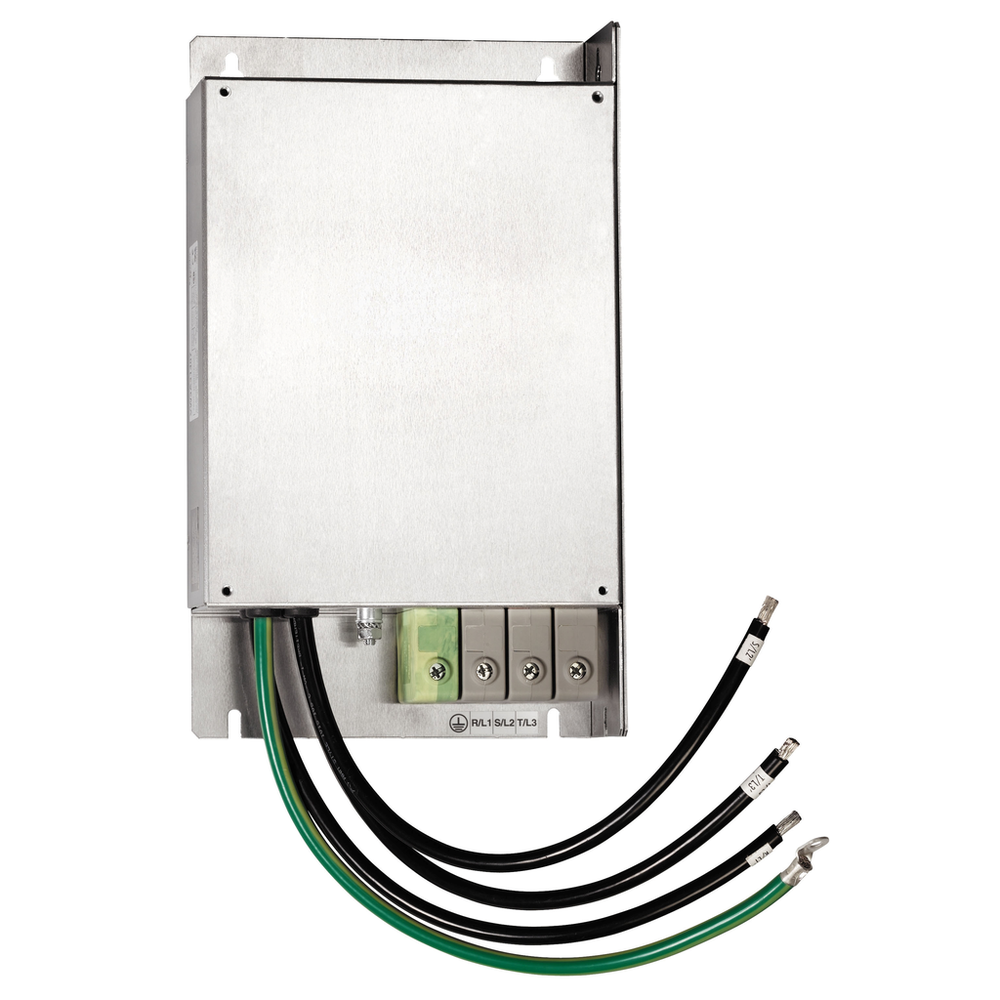

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32 and Altivar machine ATV320. It is mounted underneath the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.EMC input filter, Altivar, Lexium, 49A, 3 phases, 380…500V
Schneider Electric VW3A4425 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Emc Filter Compatibility
- type 025
- Line Rated Current
- 49 A
- Maximum Cable Distance Between Devices
- 20 m IEC 61800-3 category C1 || 100 m IEC 61800-3 category C2 || 150 m IEC 61800-3 category C3
- Net Weight
- 4.75 kg
- Network Rated Voltage
- 380-500 V
- Thermal Losses
- 27.4 W
- Tolerance
- 15...10 %
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Mounting Location
- below variable speed drive
- Phase
- three phase
- Product Compatibility
- ATV32, 380...500 V, 11...15 kW || variable speed drive ATV320 11 kW, 380...500 V, three phase || variable speed drive ATV320 15 kW, 380...500 V, three phase
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar 32 || Altivar Machine ATV320
- Range Of Product
- Lexium || Altivar
