Schneider Electric VW3A4423
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

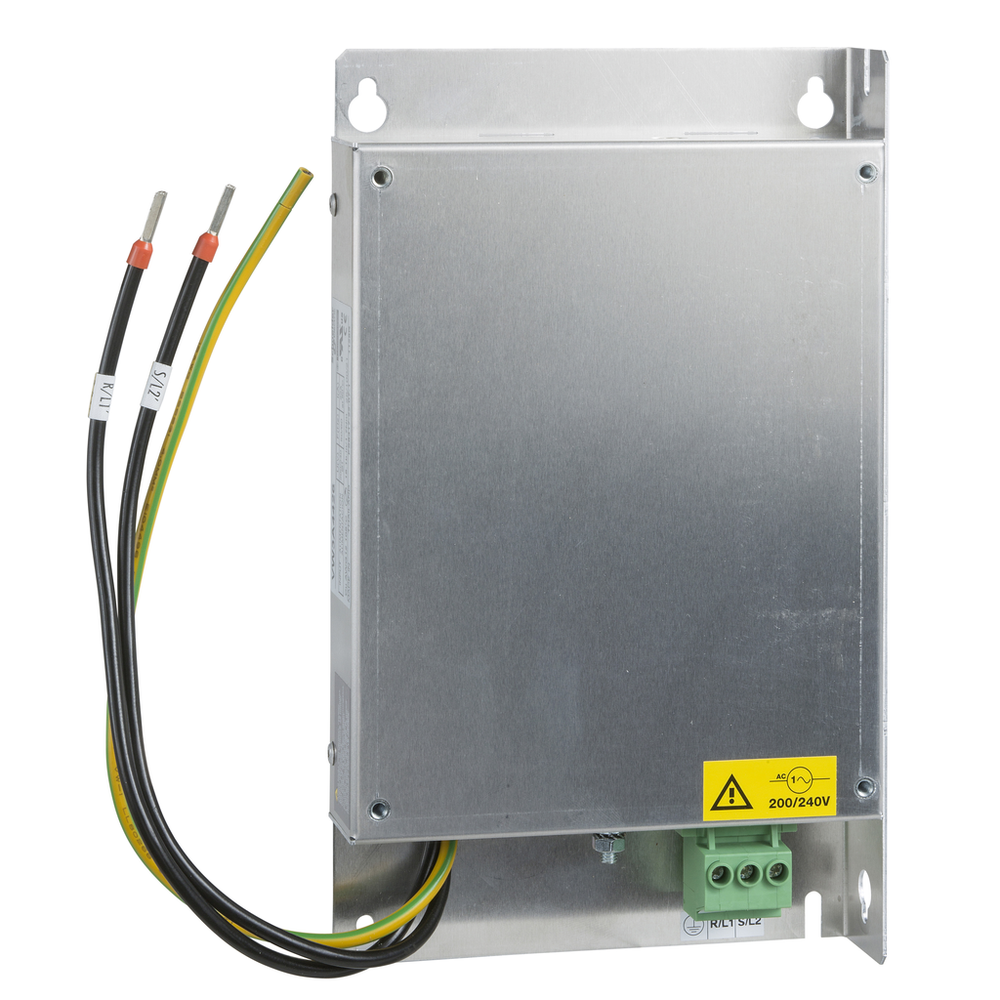

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V
Schneider Electric VW3A4423 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Emc Filter Compatibility
- type 023
- Line Rated Current
- 25 A
- Maximum Cable Distance Between Devices
- 20 m IEC 61800-3 category C1 || 50 m IEC 61800-3 category C2 || 100 m IEC 61800-3 category C3
- Net Weight
- 1.35 kg
- Network Rated Voltage
- 380-500 V
- Thermal Losses
- 15.8 W
- Tolerance
- 15...10 %
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Mounting Location
- at variable speed drive side
- Phase
- three phase
- Product Compatibility
- LXM28A || LXM32, three-phase, line current 14.6...18.1 A || variable speed drive ATV340 2.2 kW, 380...480 V || variable speed drive ATV340 3 kW, 380...480 V || variable speed drive ATV340 4 kW, 380...480 V || variable speed drive ATV340 5.5 kW, 380...480 V || variable speed drive ATV340 7.5 kW, 380...480 V
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Lexium 32 || Lexium 52 || Lexium 28 || Altivar Machine ATV340
- Range Of Product
- Altivar || Lexium
