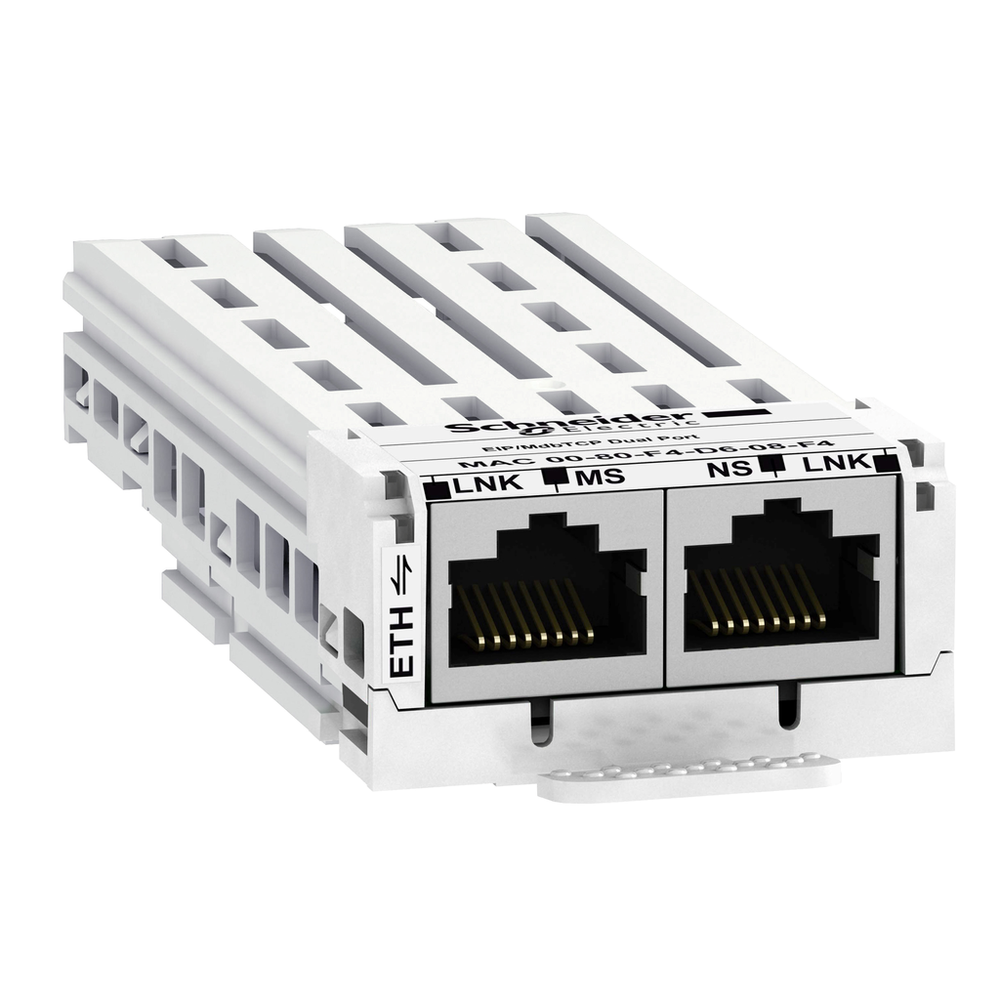

Schneider Electric VW3A3720
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.communication module EtherNet IP/Modbus TCP, 10/100Mbps, 2 x RJ45 connectors
Schneider Electric VW3A3720 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bus Profile
- CIP AC Drive || CiA 402
- Communication Network Type
- IPv6 (internet protocol)
- Communication Port Protocol
- Modbus TCP || EtherNet/IP
- Communication Service
- SNMP agent Ethernet IP || Modbus TCP server Ethernet IP/Modbus TCP || Ethernet/IP adapter Ethernet IP || RSTP support Ethernet IP || FTP Ethernet IP || ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP || auto-MDIX Ethernet IP/Modbus TCP || 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP || FDR Ethernet IP/Modbus TCP
- Display Type
- 1 LED MS (Module Status) || 1 LED NS (Network Status) || 1 LED TX/RX (Transmit/Receive port 1) || 1 LED TX/RX (Transmit/Receive port 2)
- Electrical Connection
- 2 connectors RJ45, Ethernet IP/Modbus TCP
- Exchange Mode
- half duplex and full duplex
- Net Weight
- 0.2 kg
- Range Compatibility
- Altivar Process ATV600 || Altivar Process Modular
- Time Synchronisation Protocol
- SNTP
- Topology
- daisy chain
- Transmission Rate
- 10/100 Mbps
- Web Server
- embedded HTTP server
- Web Services
- save/restore drive configuration || drive setting and diagnostic || energy monitoring || widgets (ID, control, data table, diagnostic, charts) || upgrade drive firmware || customizable home page || drive monitor || pump function setting and monitoring || Ethernet setting and diagnostic
Environment
- Product Certifications
- ODVA || Achilles level 2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Product Or Component Type
- communication module
- Range Of Product
- Altivar
