Schneider Electric VW3A3616
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

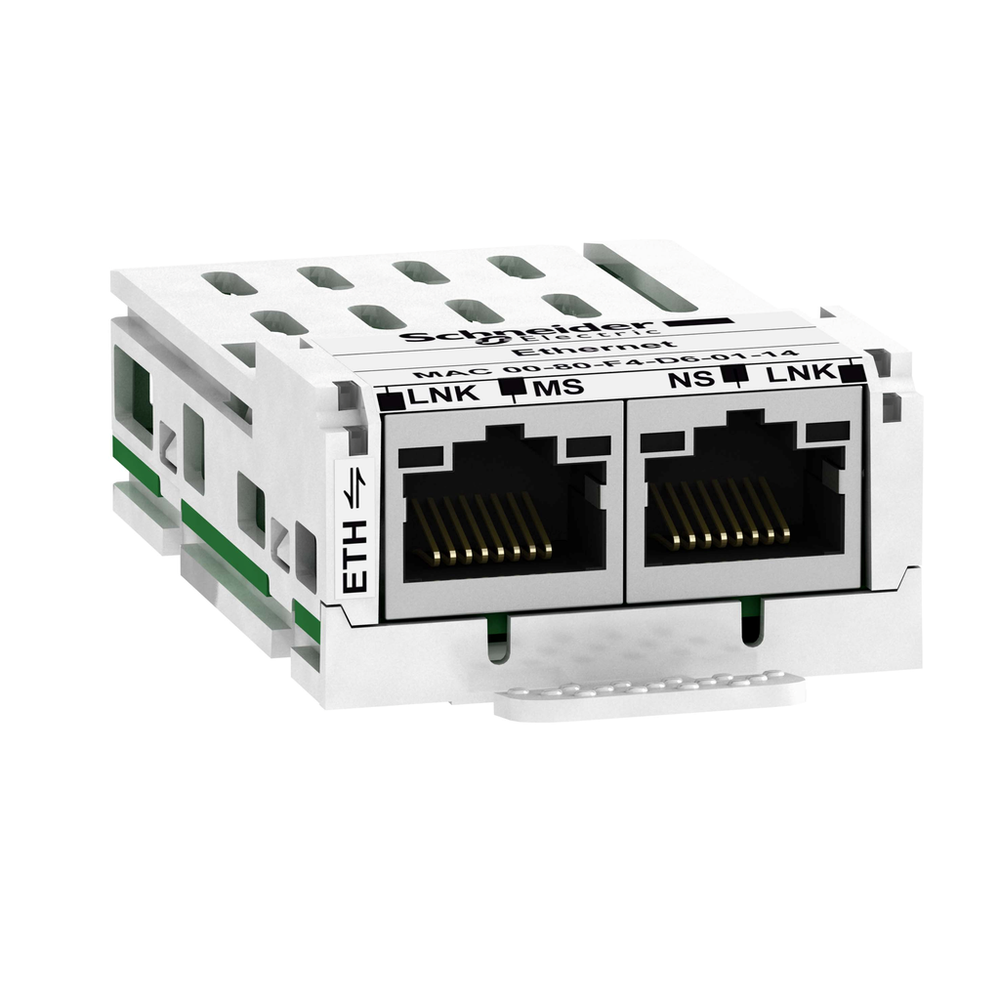

This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.communication module Modbus TCP and Ethernet IP, Altivar, 10 to 100Mbps, 2 x RJ45 connectors
Schneider Electric VW3A3616 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Addressing
- IP addressing manual, BOOTP or DHCP
- Communication Port Protocol
- Modbus TCP || EtherNet/IP
- Communication Service
- up to 8 connections (includes connections of Modbus TCP/Ethernet IP) Ethernet IP/Modbus TCP || FDR Agent Ethernet IP/Modbus TCP || read holding registers (03), 63 words max Modbus TCP || read input registers (04), 63 words max Modbus TCP || write single register (06) Modbus TCP || write multiple registers (16), 63 words max Modbus TCP || read/write multiple registers (23) Modbus TCP || read device identification (43) Modbus TCP || diagnostics (08) Modbus TCP || I/O scanner : read/write, 6 words maximum Modbus TCP || communication monitoring Modbus TCP || SNMP agent Ethernet IP || Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile Ethernet IP || fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) Ethernet IP
- Display Type
- 1 LED MS (Module Status) || 1 LED NS (Network Status) || 1 LED Ethernet port activity || 1 LED Modbus TCP port activity
- Electrical Connection
- 1 connector RJ45, EtherNet/IP || 1 connector RJ45, Modbus TCP
- Exchange Mode
- half duplex and full duplex
- Net Weight
- 0.3 kg
- Product Compatibility
- Lexium 32
- Range Compatibility
- Altivar Machine ATV320 || Altivar 32 || Lexium 32
- Transmission Rate
- 10/100 Mbps
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2010006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- communication accessories
- Product Or Component Type
- communication module
- Range Of Product
- Altivar
