Description

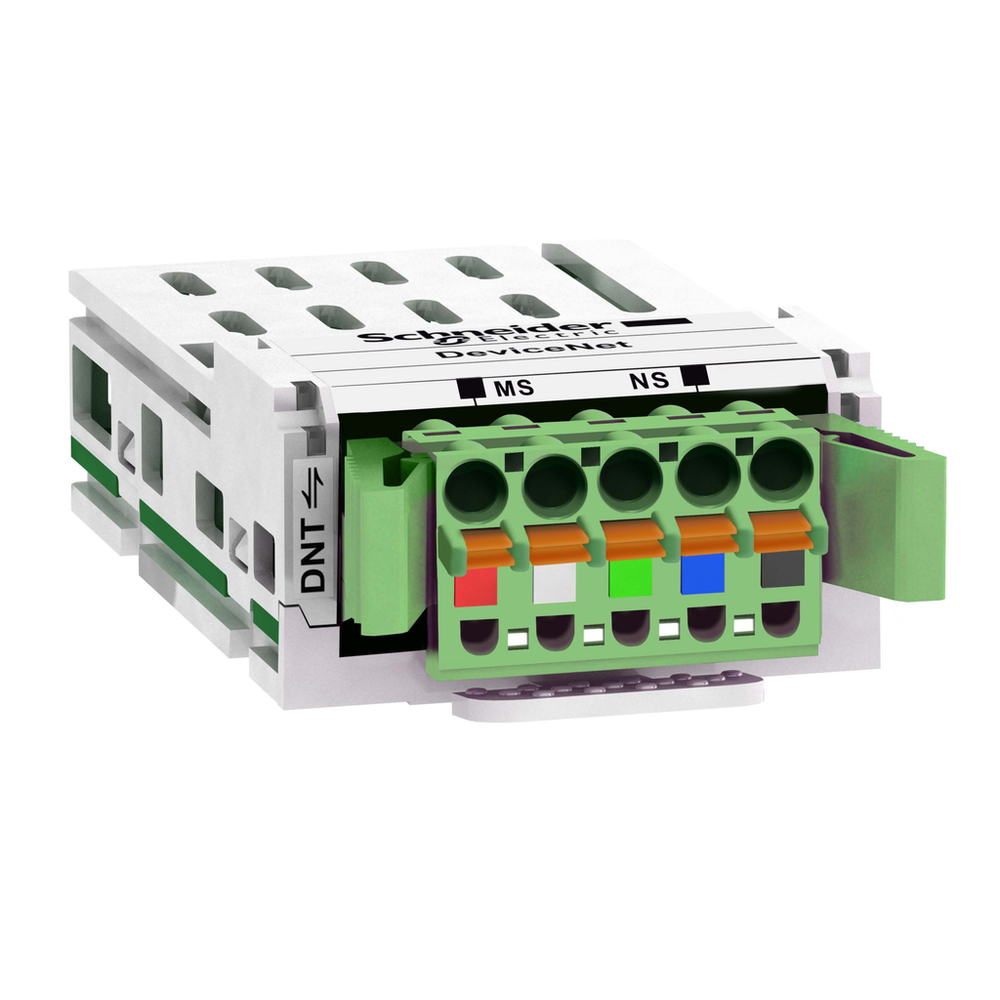

This Schneider Electric Altivar DeviceNet communication module has 1 x 5-way screw connector. This communication module enables integration of your drive in your DeviceNet process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar 32, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 300g.communication module DeviceNet, Altivar, 500kbps, 1 removable 5 way screw connector
Schneider Electric VW3A3609 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Addressing
- 1...63 configurable by graphic terminal/SoMove software
- Alarm Function
- control mode received by graphic terminal || received instruction by graphic terminal
- Bus Profile
- CIP AC Drive || CiA 402
- Communication Port Protocol
- DeviceNet
- Communication Service
- inputs : polled, change of state, cyclic || outputs : polled || ODVA AC drive and CiA 402 profile || auto device replacement || communication monitoring time out adjustable by DeviceNet configurator
- Display Type
- 1 LED MS (Module Status) || 1 LED NS (Network Status)
- Electrical Connection
- 1 connector 1 removable 5-way screw connector
- Maximum Cable Distance Between Devices
- 100 m 500 kbps || 500 m 125 kbps
- Net Weight
- 0.3 kg
- Range Compatibility
- Altivar Process Modular || Altivar 32 || Altivar Process ATV600 || Altivar Machine ATV340 except Sercos drives || Altivar Process ATV900 || Altivar Machine ATV320
- Transmission Rate
- 125 kbps, 250 kbps and 500 kbps configurable
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Product Or Component Type
- communication module
- Range Of Product
- Altivar
