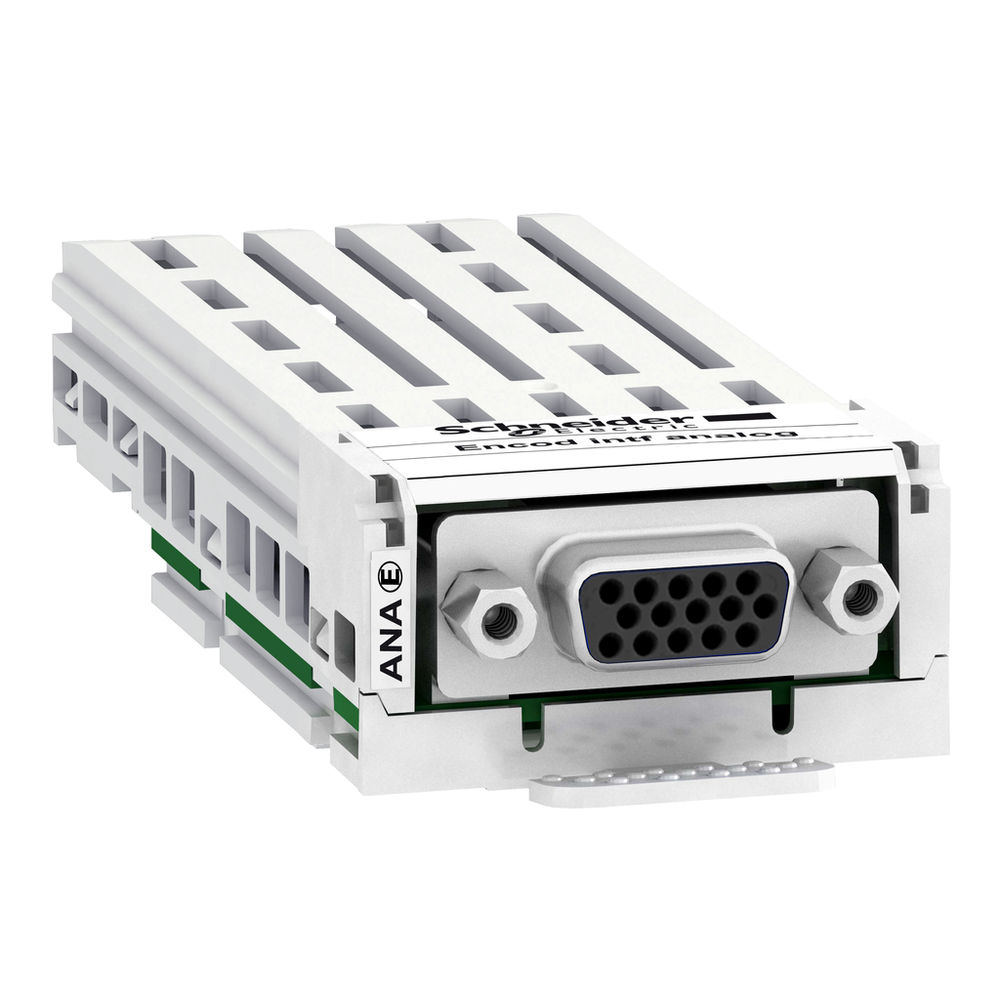

Schneider Electric VW3A3422
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.analog encoder interface module
Schneider Electric VW3A3422 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connector Type
- 1 female high density SUB-D 15
- Input Signal
- Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp-
- Maximum Cable Distance Between Devices
- 100 m
- Maximum Operating Frequency
- 100 kHz
- Maximum Supply Current
- 0.25 A 5 V DC || 0.1 A 12 V DC || 0.05 A 24 V DC
- Net Weight
- 0.15 kg
- Output Signal
- Data+, Data-
- Protection Type
- overload protection || short-circuit protection
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010009EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Encoder Type
- SinCos Hiperface || 1 Vpp
- Product Or Component Type
- analog encoder interface module
- Range Compatibility
- Altivar Machine ATV340 || Altivar Process ATV900 || Altivar Process Modular
- Range Of Product
- Altivar
- [Us] Rated Supply Voltage
- 5 V DC 4.75-5.25 V) || 12 V DC 11.4-12.6 V) || 24 V DC 22.8-25.2 V)
