Schneider Electric VW3A3409
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

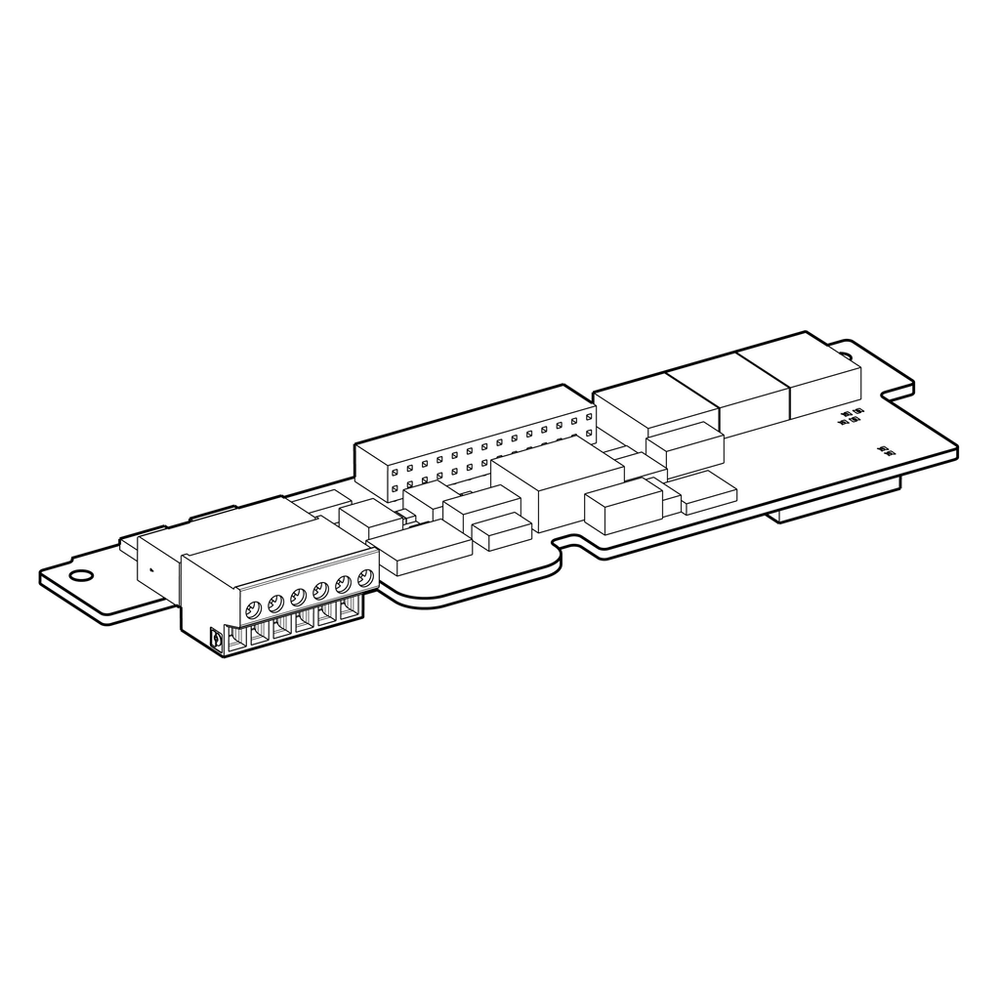

This universal encoder interface card is an option for variable speed drives of Altivar range. It is compatible with Altivar 71. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 200g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.universal encoder interface card - 5 V
Schneider Electric VW3A3409 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Clock Frequency
- 500 kHz fixed
- Electrical Connection
- terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 4.75 V || terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 7.75 V || terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 14.75 V || terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 4.75 V || terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 7.75 V || terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 14.75 V || terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 4.75 V || terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 7.75 V || terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 14.75 V || terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 4.75 V || terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 7.75 V || terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 14.75 V
- Maximum Cable Distance Between Devices
- 50 m
- Maximum Supply Current
- 0.2 A
- Net Weight
- 0.2 kg
- Output Type
- SinCos 10000 lines maximum || EnDat 2.1 25 bits maximum || SSI Gray or binary with no, odd or even parity, configurable || SinCos Hiperface 10000 lines maximum
- Product Compatibility
- ATV71H...M3383 || ATV71H...M3X383 || ATV71H...N4383
- Protection Type
- short-circuit protection || overload protection
- Speed Feedback Resolution
- 2exp(13) maximum
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Encoder Type
- SinCos Hiperface || EnDat 2.2 || SSI
- Product Or Component Type
- encoder interface card
- Range Compatibility
- Altivar 71 || Altivar 71Q || Altivar Lift
- Range Of Product
- Altivar
- [Us] Rated Supply Voltage
- 5 V 5-5.5 V) || 8 V 8-8.5 V) || 12 V 12-12.5 V)
