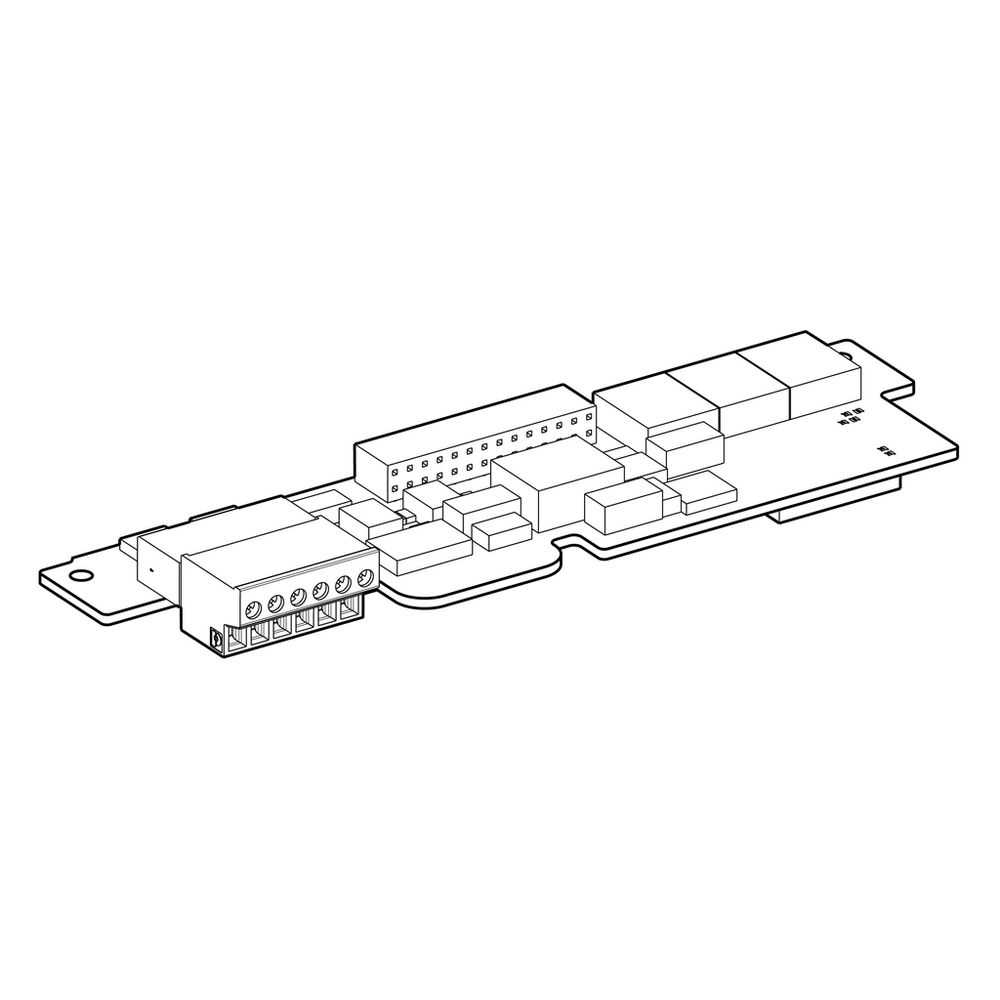

Schneider Electric VW3A3405

Complementary

• Electrical Connection
  • terminal 0.2 mm² AWG 24) <100 m, encoder, 100 mA 10 V || terminal 0.5 mm² AWG 20) <100 m, encoder, 175 mA 10 V || terminal 0.5 mm² AWG 20) <200 m, encoder, 100 mA 10 V || terminal 0.75 mm² AWG 18) <200 m, encoder, 175 mA 10 V || terminal 1 mm² AWG 17) <500 m, encoder, 100 mA 10 V || terminal 1.5 mm² AWG 15) <500 m, encoder, 175 mA 10 V
• Input Impedance
  • 1 kOhm
• Input Signal
  • A || B || compliment of A || compliment of B/AB/A
• Maximum Cable Distance Between Devices
  • 500 m
• Maximum Operating Frequency
  • 300 kHz
• Maximum Supply Current
  • 0.175 A
• Net Weight
  • 0.2 kg
• Protection Type
  • short-circuit protection || overload protection
• Voltage State 0 Guaranteed
  • <= 1.5 V
• Voltage State 1 Guaranteed
  • > 7.7...< 13 V

Contractual warranty

• Warranty
  • 18 months

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Environmental Disclosure
  • ENVPEP2010011EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Discrete Output Type
  • push-pull
• Number Of Pulses Per Revolution
  • 10000 ATV71H......383 || 5000 all ATV61 drives || 5000 ATV71H...M3 || 5000 ATV71H...M3X || 5000 ATV71H...N4
• Product Or Component Type
  • encoder interface card
• Range Compatibility
  • Altivar 61Q || Altivar Lift || Altivar 71 || Altivar 71Q || Altivar 61
• Range Of Product
  • Altivar
• [Us] Rated Supply Voltage
  • 12 V DC 12-13 V)
