Schneider Electric VW3A3401
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

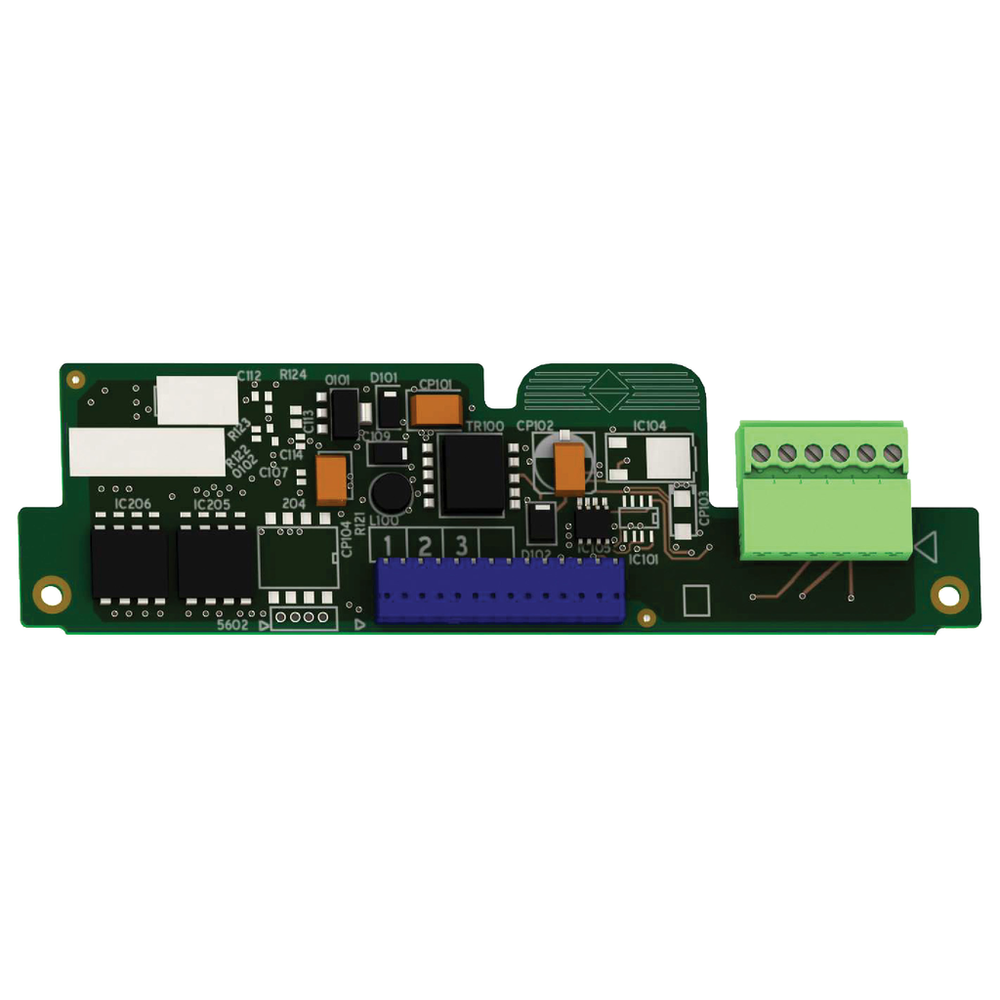

This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with RS 422 differential outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.encoder interface card with RS422 compatible differential outpts - 5 V DC
Schneider Electric VW3A3401 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Connection
- terminal 0.2 mm² AWG 24) <25 m, encoder, 100 mA 4.5 V || terminal 0.5 mm² AWG 20) <25 m, encoder, 200 mA 4.5 V || terminal 0.5 mm² AWG 20) <50 m, encoder, 100 mA 4.5 V || terminal 0.75 mm² AWG 18) <50 m, encoder, 200 mA 4.5 V
- Input Impedance
- 440 Ohm
- Input Signal
- A || B || compliment of A || compliment of B
- Maximum Cable Distance Between Devices
- 50 m
- Maximum Operating Frequency
- 300 kHz
- Maximum Supply Current
- 0.2 A
- Net Weight
- 0.2 kg
- Protection Type
- short-circuit protection || overload protection
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Communication Port Protocol
- RS422
- Discrete Output Type
- differential
- Number Of Pulses Per Revolution
- 10000 ATV71H......383 || 5000 all ATV61 drives || 5000 ATV71H...M3 || 5000 ATV71H...M3X || 5000 ATV71H...N4
- Product Or Component Type
- encoder interface card
- Range Compatibility
- Altivar Lift || Altivar 61 || Altivar 71Q || Altivar 71 || Altivar 61Q
- Range Of Product
- Altivar
- [Us] Rated Supply Voltage
- 5 V DC 5-5.5 V)
